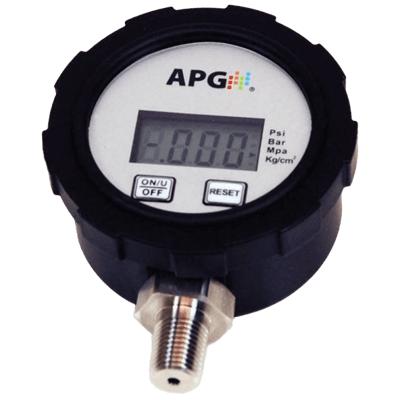

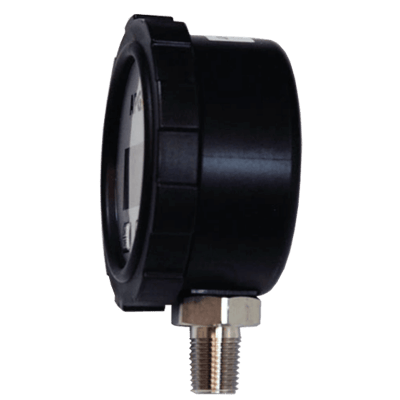

PG2 Digital Pressure Gauge

Brand: Automation Products Group - APG
The series PG2 IP65 Digital Pressure Gauge is our base-line digital gauge series. Its rugged, weatherproof design stands up to outdoor and industrial environments, and it has 304L stainless steel wetted material for a wide range of compatible liquids and gases.
Features
  • Large, full 4-digit display
  • Available ranges from vacuum up to psi: 5,000 (kPa: 34,470, bar: 344.7)
  • ±0.5% accuracy of full scale up to psi: 1,000 (kPa: 6,895, bar: 68.95)
  • ±1% accuracy of full scale above psi: 1,000 (kPa: 6,895, bar: 68.95)
  • User selectable units of measure (psi, bar, MPa, kg/cm²)



The series PG2 IP65 Digital Pressure Gauge is our base-line digital gauge series. Its rugged, weatherproof design stands up to outdoor and industrial environments, and it has 304L stainless steel wetted material for a wide range of compatible liquids and gases.
Features
  • Large, full 4-digit display
  • Available ranges from vacuum up to psi: 5,000 (kPa: 34,470, bar: 344.7)
  • ±0.5% accuracy of full scale up to psi: 1,000 (kPa: 6,895, bar: 68.95)
  • ±1% accuracy of full scale above psi: 1,000 (kPa: 6,895, bar: 68.95)
  • User selectable units of measure (psi, bar, MPa, kg/cm²)



Specifications

Accuracy

  • ± 0.5 % of Full Scale (BSFL) up to psi: 1,000 (kPa: 6,895, bar: 68.95)
  • ± 1 % of Full Scale (BSFL) Above psi: 1,000 (kPa: 6,895, bar: 68.95)

Battery Life

  • 2 to 3-Years Typically

Compensated Temperature

  • -10° to 60° C (14° to 140° F)

Display

  • 4-Digits LCD Display

Enclosure, Body Material

  • Fiberglass Reinforced Polypropylene Plastic

Environmental Protection

  • IP65
  • Weatherproof

Hysteresis

  • ± 0.5 % of Full Scale (BSFL) up to psi: 1,000 (kPa: 6,895, bar: 68.95)
  • ± 1 % of Full Scale Above 1,000 psi

Linearity

  • ± 0.5 % of Full Scale BFSL up to 1,000 psi
  • ± 1 % of Full Scale Above 1,000 psi

Media

  • Gas
  • Liquids

NPT Connection

  • 1/4”-18 Male NPT

Operating Temperature

  • -10° to 60° C (14° to 140° F)

Power Requirement

  • 3 V CR123A, Lithium Batteries

Pressure Range

  • bar: 0 to 344.7
  • kPa: 0 to 34,470
  • psi: 0 to 5,000

Pressure Type

  • Gauge
  • Sealed Gauge

Programming

  • 2 Buttons

Size

  • 3.145” x 1.657” (94.48 x 42.10 mm)

Span & Zero Effect

  • Thermal Span & Zero Shift: ± 0.04 % of Full Scale/°C (± 0.07 % of Full Scale/°F)

Stability

  • ± 0.05 % of Full Scale Per Year

Wetted Materials

  • 304L Stainless Steel
