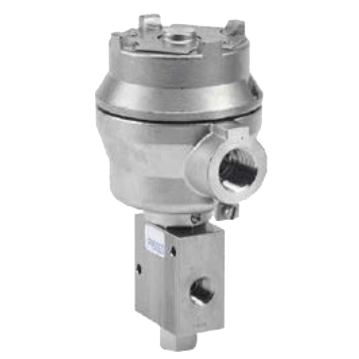

67 Series Direct-Acting Solenoid Valve

Brand: Midland-ACS
A range of 3/2 normally open / normally closed / diverting (universal) direct-acting valves in stainless steel.

Protection
  • Explosion-Proof Standard = II 2 G Exd T6 (-50º C ≤ Ta 40º C) Explosion-Proof optional = II 2 G Exd T4 (-50º C ≤ Ta 80º C)
  • Suitable for Zones 1 and 2, Gas Groups IIA, IIB, IIC
  • Ingress Protection IP67 as Standard (NEMA Equivalent: 6)
  • The Combination of the Valve and Coil will Determine Maximum Ambient i.e. Always the Lower of the Two
  • DC Models Supplied with Surge Protection as Standard
Features
  • Specifically Designed for Severe Environments
  • 316L Stainless Steel Body Construction
  • Response Time 75-100 Milliseconds
  • Designed for Actuator Control
  • Manual Reset and Manual Override Options
  • Normally Open, Normally Closed and Diverting (Universal)
  • Satisfies all Relevant EC Directives
  • Compact Unit
  • Easy Cable Installation
A range of 3/2 normally open / normally closed / diverting (universal) direct-acting valves in stainless steel.

Protection
  • Explosion-Proof Standard = II 2 G Exd T6 (-50º C ≤ Ta 40º C) Explosion-Proof optional = II 2 G Exd T4 (-50º C ≤ Ta 80º C)
  • Suitable for Zones 1 and 2, Gas Groups IIA, IIB, IIC
  • Ingress Protection IP67 as Standard (NEMA Equivalent: 6)
  • The Combination of the Valve and Coil will Determine Maximum Ambient i.e. Always the Lower of the Two
  • DC Models Supplied with Surge Protection as Standard
Features
  • Specifically Designed for Severe Environments
  • 316L Stainless Steel Body Construction
  • Response Time 75-100 Milliseconds
  • Designed for Actuator Control
  • Manual Reset and Manual Override Options
  • Normally Open, Normally Closed and Diverting (Universal)
  • Satisfies all Relevant EC Directives
  • Compact Unit
  • Easy Cable Installation
Close

Specifications

Brand

Ambient Temperature Range

  • -50° to 40° C (-58° to 104° F)

Approvals & Certifications

  • ATEX
  • CE
  • CSA
  • CU-TR
  • IEC Ex
  • uCSAs

Duty Cycle

  • 100 % Duty Cycle

Electrical Connectors

  • 1/2" NPT
  • M20 x 1.5 Female Conduit

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • IP67
  • NEMA 6

Flange Material

  • 303 Stainless Steel - Flange Tube

Flow Capacity

  • At 6 bar, 1 bar Differential: 3/2 Valves - 28.25 scfm (48 m³/hour), 0.86 Cv

Manual Reset

  • Optional Manual Reset

Materials of Construction

  • 430 Stainless Steel - Plunger & Top Stop

Media

  • Air
  • Gas
  • Inert Gas
  • Sweet Natural Gas

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/8" NPT Female

Orifice Size

  • 0.24" (6 mm)

Override

  • Manual Override

Power Requirement

  • 110 Vac, 50/60 Hz
  • 110 Vdc
  • 120 Vac 60 Hz
  • 220 Vac / 50 Hz
  • 24 Vdc
  • 48 Vdc

Pressure Range

  • bar: 0 to 10
  • kPa: 0 to 1,000
  • psi: 0 to 145

Response Time

  • 75 to 100 Millseconds

Seat / Seal Material

  • EPDM
  • Nitrile

Spring Material

  • 302 Stainless Steel

Standard Features

  • Compact Unit
  • DC Models Supplied with Surge Protection as Standard
