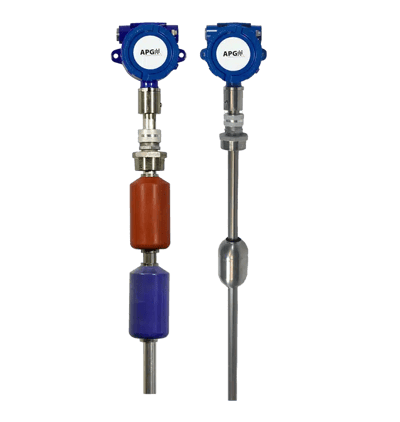

MPX API Magnetostrictive Level Probe

Brand: Automation Products Group - APG

The MPX-R offers a 1"-diameter, stainless steel stem, while the MPX-T uses a 1"-diameter titanium stem for a larger range of chemical compatibility. All models come with required digital temperature sensors and feature large, robust floats that resist fouling.



Features
  • Modbus Output
  • Built For Hard Work
  • Tank Cloud Compatible



The MPX-R offers a 1"-diameter, stainless steel stem, while the MPX-T uses a 1"-diameter titanium stem for a larger range of chemical compatibility. All models come with required digital temperature sensors and feature large, robust floats that resist fouling.



Features
  • Modbus Output
  • Built For Hard Work
  • Tank Cloud Compatible



Close

Specifications

Brand

Accuracy

  • Distance: ± 0.04 in. (1 mm) over range
  • Temp Sensors: ± 0.25° C over -40° - 85° C, ± 0.13° C over +20° - 70° C

Certification

  • IP65
  • CSA

Electrical Connection

  • Terminal Block, 12-24 VDC

Electrical Ratings

  • Reverse polarity protection
  • Surge protection (IEC 61000-4-5)

Environmental Rating

  • IP65

Housing Material

  • Cast aluminum, epoxy coated

Operating Temperature

  • -40° - 85° C, (-40° - 185° F)

Output

  • Modbus RTU (RS-485), Temperature output

Programming

  • RS-485: optional RST-6001 USB to RS-485 converter

Resolution

  • Modbus: 0.04 in. (1 mm)

Stem Length

  • MPX-R: 10 - 31.5 ft (3.05 - 9.60 m)
  • MPX-T: 10 - 25 ft (3.05 - 7.62 m)

Stem Material

  • MPX-R: 1.0" Ø 316L Stainless Steel
  • MPX-T: 1.0" Ø Titanium 2

Typical Current Draw

  • Modbus (RS-485): 25 mA
