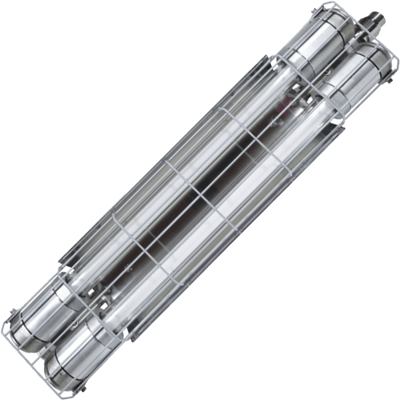

2101, Top Hi-Tech, cULus Explosion Proof, Class I, Division 1, (2 ft or 4 ft) Single or Dual LED Tube Light, (COB) 9W, 18W, 36W
Description
- cULus Explosion Proof Approved for Canada & USA
- Explosion Proof, Class 1, Division 1, LED Tube Light
- Single 2 ft Tube: 9W
- Single 4 ft Tube: 18W
- Dual 2 ft Tube: 18W
- Dual 4 ft Tube : 36W
- Class I, Division 1, Group C, D
- Class II, Division 2, Group E, F ,G
- IP67 / NEMA 6
- Yellow Tube Light:
- Single 2 ft Tube: 10W
- Single 4 ft Tube: 20W
- Dual 2 ft Tube: 20W
- Dual 4 ft Tube : 40W
- Ambient Temperature:
- CID1: -20°C ~ +40°C, T6
- "AC IN LED Technology"
- Replaceable LED Light Tubes
- No Driver (Ballast), to fail, No Efficiency Loss
- Long Lifespan ( 60,000 hrs )
- LED Lighting provides 2 million times power cycle
- High Efficiency, Generates Less Heat
- Smaller Volume and Light weight
- High Corrosion Resistance
- Easy installation and maintenance
- Applicable to High Temperature Environment
- Light Color: Cool White / Warm White
- "AC IN LED Technology"
Configure
Specifications
Specifications
Brand
Standards
- UL 844
- UL 1598 Luminaires
- CSA C22.2 No. 137-18
- CSA C22.2 No. 250.0
Protection
- cULus Hazardous Location
- • Class I, Division 1 Group C, D
- • Class II, Division 1 Group E, F, G
Watts (±10%) (Ex Light)
- Single Ex Tube: (2 FT: 9W) (4 FT: 18W)
- Dual Ex Tube: (2 fT: 18W) (4 FT: 36W)
Voltage (±10%) (Ex Light)
- 120-277 VAC
Color of LED Light (EX light)
- Warm White / Natural White / Daylight / Cool White
Lumens per Watt (± 10%) (Ex Light)
- ≥100 lm
Watt.(±10%) Yellow Tube Tube
- Single Yelow Tube: (2 FT: 9W) ( 4 FT: 18W)
- Dual Yellow Tube: (2 FT: 20W) (4 FT: 40W)
Volt.(±10%) Yellow Tube Light
- 120V-277V AC
Light Color - LED
- Yellow
Amps
- 9W: (120 V: 0.03 A), (277 V: 0.09 A)
- 10W: (120 V: 0.04 A), (277 V: 0.08 A)
- 18W: (120 V: 0.06 A), (277 V: 0.18 A)
- 20W: (120 V: 0.07 A), (277 V: 0.20 A)
- 36W: (120 V: 0.13 A), (1277 V: 0.36 A)
- 40W: (120 V: 0.14 A), (277 V: 0.33 A)
Ambient Temperature
- -20°C ~ +40°C, T6
Power Factor
- cos ≥ 0.9
CRI
- ≥70 (Excluding Yellow Tube)
Beam Angle
- X-110° / Y-110°
Frequency
- 50/60 Hz
Degree of Protection
- IP67 / NEMA 6
Material
- Body: Aluminium Alloy
- Lighting Tube: Glass
LED Service Life
- 60,000 hours
Entrance Thread
- 1 x 3/4" FNPT (M25)
Electrical Cable
- 3 Ft (1 Meter) cULus, SOOW Cable, 600V, 105°C, 3x0.824mm (18 AWG) FT2
Applications
Applications
- Explosion Proof LED Tube Light:
- Compressor Stations
- Power Plants
- Petrochemical Plants
- Waste Water Treatment Plants
- Offshore Platforms
- Storage Facilities
- Paper Mills
- Shipyards
- Loading Docks
- Yellow Tube LED Light used in Lithography
- Eliminates Wavelengths shorter than 500nm
- Prevents early photo-sensitivity in manufacturing of:
- Displays (Touch Panel, LCD, OLED)
- MEMS Devices
- Opto-Electric Devices
- Semi Conductor
- Photo Voltaic
- Wafer-level Packaging
