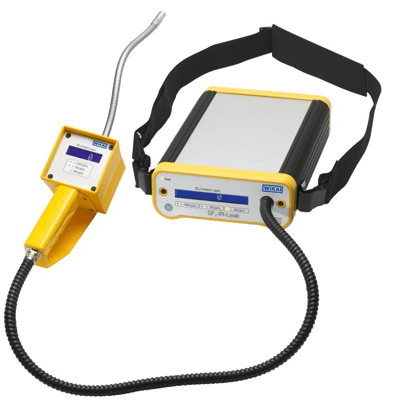

Gas Detector - GIR-10

Brand: WIKA Alexander Wiegand SE & Co. KG
The gas detector model GIR10 is used for the detection of the smallest SF6 gas concentrations and is thus ideal for detecting the place and size of leakages.
Features
  • Smallest concentrations of up to 0.6 ppmv can be detected.
  • Responds only to SF6 gas and is therefore not sensitive to humidity and common volatile organic compounds (VOC).
  • Easy to use.
  • Fast response time.
  • Calibration in the factory using certified test gases.
The gas detector model GIR10 is used for the detection of the smallest SF6 gas concentrations and is thus ideal for detecting the place and size of leakages.
Features
  • Smallest concentrations of up to 0.6 ppmv can be detected.
  • Responds only to SF6 gas and is therefore not sensitive to humidity and common volatile organic compounds (VOC).
  • Easy to use.
  • Fast response time.
  • Calibration in the factory using certified test gases.

Specifications

Measurement Principle

  • Non-dispersive infrared technology (NDIR)

Voltage Supply

  • Lithium-ion rechargeable battery for approximately 8 h Operating time
  • Charger AC 100 ... 265 V, 50/60 Hz

Calibration Sequence

  • After 1,200 hours of Operation or every 2 Years at the latest

Permissible Temperature Ranges

  • Storage Temperature: -10° to +60° C
  • Operating Temperature: 0° to 50° C

Dimensions

  • Console: 285 x 195 x 80 mm
  • Hand-held: 210 x 110 x 90 mm

Weight

  • Console: 2.5 kg
  • Hand-held: 0.5 kg

Applications

  • Locating and quantifying leakages at SF6 gas filled equipment
  • Determination of leak rate for final inspection of SF6 gas filled equipment
