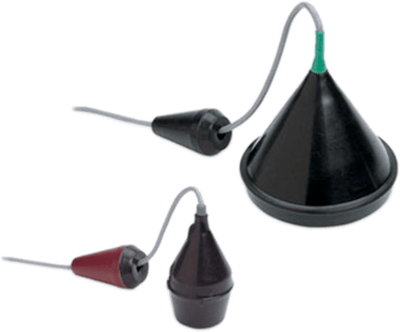

KA-2 Level Float Switch

Brand: Automation Products Group - APG
Kari cable suspended float switches are capable of up to four switching levels in a single float, and offer 25 different configurations - including some with built in hysteresis. That means you can replace up to four single level float switches with one 4-point level switch. Kari offers high chemical compatibility and durable components built to outlast any other.
Features

  • Up to 4 switching levels
  • Optional built-in hysteresis
  • 25 configurations
  • Mercury and Lead free
  • High chemical compatibility
  • Proven reliability in operation
  • Cost effective



Kari cable suspended float switches are capable of up to four switching levels in a single float, and offer 25 different configurations - including some with built in hysteresis. That means you can replace up to four single level float switches with one 4-point level switch. Kari offers high chemical compatibility and durable components built to outlast any other.
Features

  • Up to 4 switching levels
  • Optional built-in hysteresis
  • 25 configurations
  • Mercury and Lead free
  • High chemical compatibility
  • Proven reliability in operation
  • Cost effective



Models matching criteria: 1
APG Kari Series Level Float Switch, GP, High & Low Alarm, 140°F, 5m PVC Cable view more
  • KA: Kari Level Float Switch
  • 2HL: High and Low Alarm
  • Connectivity: 5 Meter (16 ft) Cable, PVC
  • Switching Differential: 10 - 50 Inches
  • Maximum Pressure: 28 psi, 2 bar
  • Maximum Liquid Temperature: +140°F (+60C)
  • Minimum Fluid Specific Gravity: 0.7
  • Standard High Temperature option: 130ºF (55ºC)
  • Certification: CSA General Purpose, CE
Out of Stock
$253.65 USD
Non-Cancellable / Non-Refundable

Specifications

Approvals & Certifications

  • CE
  • CSA General-purpose
  • RoHS

Consumption

  • Maximum

Electrical Connectors

  • Cable

Environmental Protection

  • IP67
  • NEMA 6

Fluid Specific Gravity

  • Minimum: 0.7 for Standard Float, 0.95 for Mini Float

Operating Voltages

  • 250 Vac or Vdc
  • Maximum

Pressure Rating

  • psi: 28, bar: 2, kPa: 200
  • Switching Differential: Min. 10” To, Max.

Process Temperature

  • 55°C, 130°F

Sensor, Probe Style

  • Float

Switch Points

  • 2

Wetted Materials

  • Polypropylene
  • PVC
  • Rubber
  • Teflon
  • TPU
