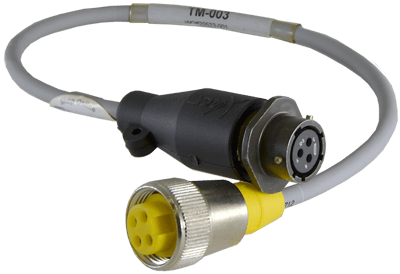

4-Pin to Amphenol 3-Pin Cross Cable, Female to Female, NCNR

Brand: Turck, Inc
Features
  • Process Cable
    • Discrete Circuits
  • Connector
    • "minifast" Series
    • Female Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 4 x #18 AWG Wires
    • (14.5 mm) = 1/2"-14 Male NPT Threads
  • Wires
    • 105 C, 300 V
    • (4) x # 18 AWG Conductors
    • Interlocking Aluminum Armor
  • Protection Class
    • IEC67, NEMA 1,3,4,6P
  • Approvals
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
Features
  • Process Cable
    • Discrete Circuits
  • Connector
    • "minifast" Series
    • Female Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 4 x #18 AWG Wires
    • (14.5 mm) = 1/2"-14 Male NPT Threads
  • Wires
    • 105 C, 300 V
    • (4) x # 18 AWG Conductors
    • Interlocking Aluminum Armor
  • Protection Class
    • IEC67, NEMA 1,3,4,6P
  • Approvals
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
