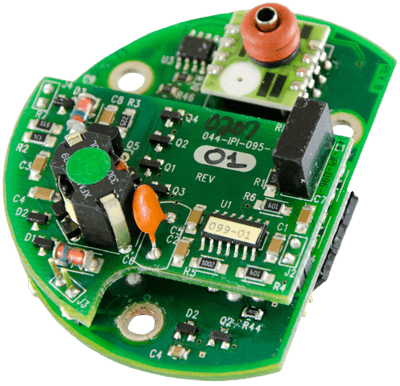

Circuit Board Assembly for TX7850 I/P Transducer

Brand: Fairchild Industrial Products
Request Information
The Model TXI7850 Transducer is an electronically controlled pressure sensitive device that converts a current signal to a pneumatic output.

This device is composed of the Primary Converting Section and the Relay Section. The Piezoelectric ceramic disk in the Primary Section functions as a flapper. The flapper and the nozzle work together to control the signal pressure in the Relay Section.

The signal pressure acts on a diaphragm assembly that controls the pressure in the output chamber.
The Model TXI7850 Transducer is an electronically controlled pressure sensitive device that converts a current signal to a pneumatic output.

This device is composed of the Primary Converting Section and the Relay Section. The Piezoelectric ceramic disk in the Primary Section functions as a flapper. The flapper and the nozzle work together to control the signal pressure in the Relay Section.

The signal pressure acts on a diaphragm assembly that controls the pressure in the output chamber.
Close

Specifications

Brand

Temperature Range

  • -40° F to + 160° F, (-40° C to + 71.2° C)
  • -40° F to + 180° F, (-40° C to + 82.2° C)

Accuracy (ISA S51.1)

  • 0.25 % Full Scale Guaranteed
  • 0.15 % Full Scale Typical

Temperature Effect

  • [+0.5 % +0.04 % / of Temperature Change] of Span typical
