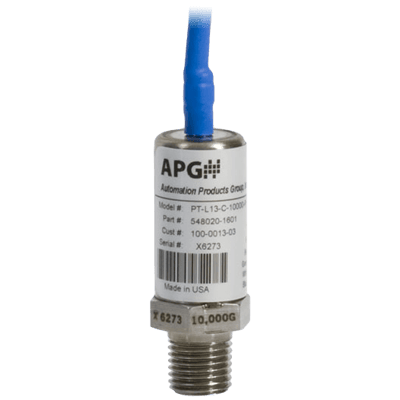

PT-L9 / L13 / L14 Pressure Transducer

Brand: Automation Products Group - APG

Millivolt output transducers are the economical answer for all general-purpose measurements where a cost-effective, high reliability unit is required. The PT-L9/L13/L14 pressure transducers offer ranges from vacuum to 10,000 psi, single piece stainless steel construction, and a tamper-resistant body design.

Features
  • Cost effective
  • Optional extended temperature compensation
  • Stainless steel process fitting and sensor



Millivolt output transducers are the economical answer for all general-purpose measurements where a cost-effective, high reliability unit is required. The PT-L9/L13/L14 pressure transducers offer ranges from vacuum to 10,000 psi, single piece stainless steel construction, and a tamper-resistant body design.

Features
  • Cost effective
  • Optional extended temperature compensation
  • Stainless steel process fitting and sensor



Specifications

Accuracy

  • ± 0.5 %
  • BFSL ≤ 0.25 % of Full Scale
  • NIST up to ± 0.1 % on Select Ranges

BSP Connection

  • 1/2” BSPP Male
  • 1/4” BSP Male
  • 3/8” BSPP Male
  • G 1/2” Male
  • G 3/8” Male

Cable Length

  • Standard 5 feet, 1.5 metres

Compensated Temperature

  • -17° to 54° C, 0° to 130° F
  • -40° to 121° C, -40° to 250° F

Cone & Thread Connection

  • High Pressure SnoTrik (M-250C Autoclave Male)

Electrical Connectors

  • 4-Pin Bayonet Connector
  • Pigtail with Cable

Electrical Protection

  • Reverse Polarity

Enclosure, Body Material

  • Stainless Steel (316L, 17-4 PH, 15-5 PH)

Excitation Voltage

  • Calibrated at 10 Vdc

NACE & NIST

  • NIST

NPT Connection

  • 1/4”-18 Female NPT
  • 1/4”-18 Male NPT

Options

  • High Vibration

Output

  • 10 mV/V ± 2 %
  • 3 mV/V ± 2 %
  • 5 mV/V ± 2 %

Pressure Range

  • bar: 0 - 689.5
  • kPa: 0 - 68,950
  • psi: 0 - 10,000

Pressure Type

  • Absolute
  • Compound Gauge
  • Gauge
  • Sealed Gauge
  • Vacuum

PT/PF/PS (JIS) Connection

  • 1/4” (BSPP) PT Male

SAE Connection

  • 7/16”-20 SAE Male

Supply Voltage

  • 10 Vdc

Temperature Range

  • -40° to 121° C, -40° to 250° F

UNF/UNC Connection

  • 7/16”-20 UNF Male-3A

Wetted Materials

  • 316L Stainless Steel
  • 632 Stainless Steel
  • Hastelloy
