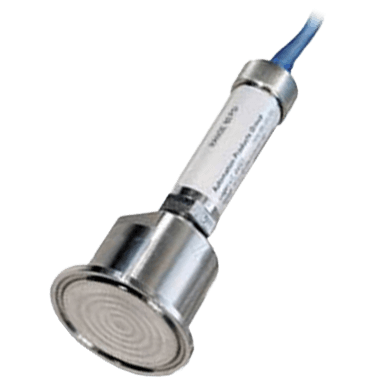

Images are representations only.
Description
Our amplified output pressure transmitters are the economical answer for all applications requiring high accuracy and reliability over a wide range of pressures.
The PT-L1/L3/L10/L11/L12/L21 pressure transmitters offer ranges from vacuum to 10,000 psi, all stainless steel construction, high burst pressure, and high acuracy.
Features- Cost Effective
- High overpressure capability
- Zero and span adjustments
- Single piece stainless steel process fitting and sensor
Configure
Specifications
Specifications
Accuracy
- ± 0.5 %
- BFSL ≤ 0.25 % of Full Scale
- Up to ± 1.0 % Available on Select Ranges
BSP Connection
- 1/2” BSPP Male
- 1/4” BSP Male
- 3/8” BSPP Male
Cable Length
- 5 feet (1.5 metres)
Compensated Temperature
- -17° to 54° C (0° to 130° F)
- -17° to 85° C (0° to 185° F) - Extended Temperature Compensation Range
- -40° to 82° C (-40° to 180° F) - Extended Temperature Compensation Range
Cone & Thread Connection
- High Pressure SnoTrik (M-250C Autoclave Male)
Electrical Connectors
- 4-Pin Bayonet Connector
- 4-Pin M12 Micro Connector
- 6-Pin Bayonet Stainless Steel
- 6-Pin Circular
- Pigtail with Cable
Electrical Protection
- Reverse Polarity
NACE & NIST
- NIST
NPT Connection
- 1/4”-18 Female NPT
- 1/4”-18 Male NPT
- 1/8”-27 Male NPT
Options
- Can Assembly - Can Welded to Fitting & Connector
- Can Assembly - Knurled
- Can Assembly - Tamper Resistant with Loc-Tite
- Can Assembly - Tamper Resistant with Weld
- High Vibration
Output
- 0-10 Vdc
- 0-5 Vdc
- 1-10 Vdc
- 1-5 Vdc
- 1-6 Vdc
- 4-20 mA
Pressure Range
- bar: 0 to 689.5
- kPa: 0 to 68,947
- psi: 0 to 10,000
Pressure Type
- Absolute
- Compound (Vacuum & Gauge Pressure)
- Gauge
- Sealed Gauge
- Vacuum
SAE Connection
- 7/16”-20 SAE Male
- 7/16”-20 SAE Male Flush Mount
Supply Voltage
- 0-10 Vdc: 14-33 Vdc
- 0-5 Vdc, 1-5 Vdc & 1-6 Vdc: 9-33 Vdc
- 4-20 mA: 10-36 Vdc
UNF/UNC Connection
- 7/16”-20 UNF Male with Cone
Wetted Materials
- 316L Stainless Steel
- 630 Stainless Steel (17-4)
- 632 Stainless Steel (15-5)
