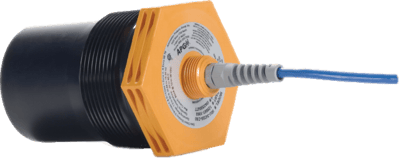

IRU-3430 Ultrasonic Level Sensor

Brand: Automation Products Group - APG
Request Information
The IRU-3430 series provides a non-contact method of detecting level, presence/absence detection, volume, proximity and distance. With built in technology to compensate for unpredictiable variables such as humidity, temperature and agitators the IRU-3430 is the right sensor for your application.
Features
  • AutoSense Software for hassle-free setup
  • Internal Temperature Compensation
  • Works on solids and liquids



The IRU-3430 series provides a non-contact method of detecting level, presence/absence detection, volume, proximity and distance. With built in technology to compensate for unpredictiable variables such as humidity, temperature and agitators the IRU-3430 is the right sensor for your application.
Features
  • AutoSense Software for hassle-free setup
  • Internal Temperature Compensation
  • Works on solids and liquids



Close
Close

Specifications

Brand

Approvals & Certifications

  • CSA Class I, Div. 2, Grade A, B, C, D

Accuracy

  • ± 0.25 % of Span

Input Power

  • 12-28 Vdc

Electrical Connectors

  • 4-Conductor Shielded Cable
  • 5-Conductor Shielded Cable

Enclosure, Body Material

  • PC/PET Blend Transducer
  • PC/PET Upper Housing

Environmental Protection

  • IP65

Frequency

  • 43 kHz

NPT Connection

  • 3” NPT Male

Operating Temperature - Electronics

  • -30° to 60° C, -20° to 140° F

Output

  • Isolated 4-20 mA with (2) NPN Trip Points

Principle of Operation

  • Continuous Level Sensor

Resolution

  • 0.1” (2.5 mm)

Response Time

  • Programmable (20 milliseconds Min.)

Sensor, Probe Style

  • Ultrasonic

Sensing Range

  • 1.25 to 50 feet, 0.4 to 15.2 metres

Wetted Materials

  • PC/PET Blend
