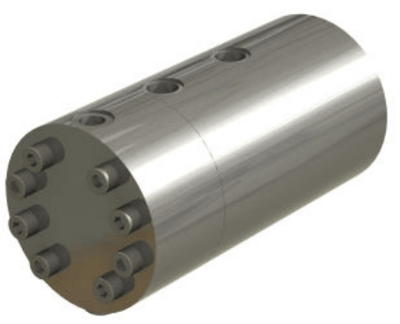

PI39 Pressure Intensifier

Brand: Bifold
Request Information
The PI39-TS Intensifier amplifies the inlet pressure to a higher outlet pressure by a predetermined ratio.

Pressure in the high pressure line can become reduced as a result of a system leak or the use of the stored (pressure) energy.

The PI39-TS restores and maintains that pressure in such instances. Check and changeover valves are integrated within the main body of the intensifier.

When the inlet pressure x the ratio = the outlet pressure, then the PI39-TS is in a stalled condition and there is minimal consumption of fluid.

The PI39-TS does not contain a high pressure line vent valve.

Features

  • Designed to boost the pressure of any water-based or mineral/synthetic oil-based fluid
  • Boosts inlet pressure up to 5 times without external power.
  • The maximum outlet pressure is:
    • psi:  13,050
    • kPa:  90,000
    • bar:  900
  • When system pressure is achieved, there is minimal consumption of expensive hydraulic fluid
  • External components manufactured from 316 (standard) no painting required for hostile environments
The PI39-TS Intensifier amplifies the inlet pressure to a higher outlet pressure by a predetermined ratio.

Pressure in the high pressure line can become reduced as a result of a system leak or the use of the stored (pressure) energy.

The PI39-TS restores and maintains that pressure in such instances. Check and changeover valves are integrated within the main body of the intensifier.

When the inlet pressure x the ratio = the outlet pressure, then the PI39-TS is in a stalled condition and there is minimal consumption of fluid.

The PI39-TS does not contain a high pressure line vent valve.

Features

  • Designed to boost the pressure of any water-based or mineral/synthetic oil-based fluid
  • Boosts inlet pressure up to 5 times without external power.
  • The maximum outlet pressure is:
    • psi:  13,050
    • kPa:  90,000
    • bar:  900
  • When system pressure is achieved, there is minimal consumption of expensive hydraulic fluid
  • External components manufactured from 316 (standard) no painting required for hostile environments
Close

Specifications

Brand

BSP Connection

  • 1/4" BSP Female

Cone & Thread Connection

  • 1/4" Female Medium Pressure

NPT Connection

  • 1/4" NPT Female

Pressure Range

  • bar: 0 to 900
  • kPa: 0 to 90,000
  • psi: 0 to 13,050

Seat / Seal Material

  • Nitrile
  • Viton

Supply Pressure - Maximum

  • bar: 345
  • kPa: 34,500
  • psi: 5,000
Close

Applications

The P139-TS  was designed principally for applications in the offshore oil and gas industry where the highest standards of product performance and durability are essential.

The P139-TS's external components are manufactured from 316 & 17/4 PH stainless steel to withstand hostile environments; it can operate on all water-based glycol fluids or on mineral and synthetic oils.
