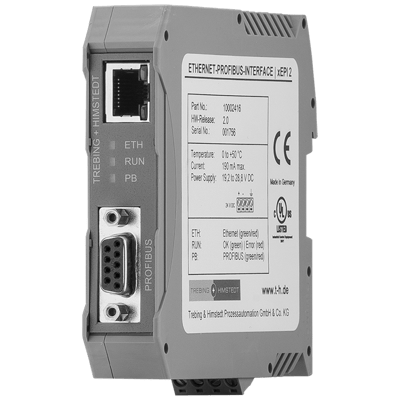

Ethernet-Profibus Interface

Brand: VEGA
Ethernet Profibus interface ensures access from parameter software (PACTware) to field device.

Application Area: The TH-LINK.X is an Ethernet Profibus Interface providing the connection between the higher-level network and the field level. Hence the access of the parameter software PACTware from the Ethernet to the Profibus network is ensured.

A separate PCMCIA card for the PC is not required. Furthermore diagnosis possibilities are available to ensure the network stability. Hence the Profibus systems can be operated economically.
Features
  • Unique platform for network diagnosis and parameter adjustment
  • Simple installation and setup through WEB server and DTM
  • Central access to all parameters of the Profibus sensors in the network
Ethernet Profibus interface ensures access from parameter software (PACTware) to field device.

Application Area: The TH-LINK.X is an Ethernet Profibus Interface providing the connection between the higher-level network and the field level. Hence the access of the parameter software PACTware from the Ethernet to the Profibus network is ensured.

A separate PCMCIA card for the PC is not required. Furthermore diagnosis possibilities are available to ensure the network stability. Hence the Profibus systems can be operated economically.
Features
  • Unique platform for network diagnosis and parameter adjustment
  • Simple installation and setup through WEB server and DTM
  • Central access to all parameters of the Profibus sensors in the network
Close

Specifications

Brand

Communication

  • PROFIBUS Baud Rate: 12 Mbps

Consumption

  • 190 mA

Dimensions

  • 088" x 3.9" x 4.50" (22.5 x 99 x 114.5 mm)

Electrical Connectors

  • EN 50022
  • Ethernet Interface: RJ45 Port

Interface Connection

  • PROFIBUS Interface: RS-485

Mounting

  • Carrier Rail 35 x 7.5

Supply Voltage

  • 19.2-28.8 Vdc

Temperature Range

  • 0° to 50° C (32° to 122° F)
