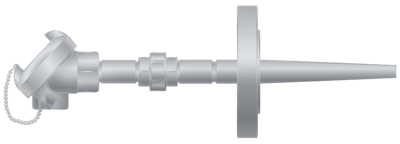

RT6 RTD Assembly

Brand: Aircom Instrumentation Ltd
  • Element
    • 100 Ohms Platinum
    • 120 Ohms Nickel
    • 10 Ohms Copper
    • Single / Dual Elements
  • Number of Lead Wires
    • 2 to 4 (Compensated Loop with 4)
  • Probe Diameter
    • 1.25 mm to 2.5 mm (1/8" to 1/4")
  • Temperature Rating
    • Low Temp 204°C (399°F Max.)
    • High Temp 482°C (899°F Max.)
    • High Temp and Vibration 850°C (1,562°F)
  • Connection Head
    • Explosion Proof: Class I, Div. I, Gr. A, B, C, D. Class II, Div. I, Gr. E, F, G. Class III
    • General Purpose
    • Non Hazardous
  • Indoor/Outdoor/Sanitary Material
    • 304 or 316 Stainless Steel
  • Flange Size
    • 3/4" NPT, 1" NPT
  • Element
    • 100 Ohms Platinum
    • 120 Ohms Nickel
    • 10 Ohms Copper
    • Single / Dual Elements
  • Number of Lead Wires
    • 2 to 4 (Compensated Loop with 4)
  • Probe Diameter
    • 1.25 mm to 2.5 mm (1/8" to 1/4")
  • Temperature Rating
    • Low Temp 204°C (399°F Max.)
    • High Temp 482°C (899°F Max.)
    • High Temp and Vibration 850°C (1,562°F)
  • Connection Head
    • Explosion Proof: Class I, Div. I, Gr. A, B, C, D. Class II, Div. I, Gr. E, F, G. Class III
    • General Purpose
    • Non Hazardous
  • Indoor/Outdoor/Sanitary Material
    • 304 or 316 Stainless Steel
  • Flange Size
    • 3/4" NPT, 1" NPT

Specifications

Conduit Connection

  • 1/2” NPT Female
  • 3/4” NPT Female

Element

  • 10 ohms Copper 427 0.039 ohm/°C
  • 100 ohms Platinum 385 ± 0.01 %
  • 100 ohms Platinum 385 ± 0.1 %
  • 100 ohms Platinum 392 ± 0.1 %
  • 120 ohms Nickel 627 0.806 ohm/°C
  • Dual Elements
  • Single Element

Materials of Construction

  • 304 Stainless Steel
  • 316 Stainless Steel

Process Connection Material

  • Explosion-proof: Class 1, Groups B, C & D. Class II, Groups E, F, G., Aluminum, Iron, Stainless Steel or Epoxy Coated Aluminum Casing. 3/4” NPT Conduit, 1/2” NPT Process, Bakelite Termination, 1/2” NPT Extension (Many More Options Available)
  • General-purpose: Non-Hazardous, Cast Aluminum, 3/4” NPT Conduit, 1/2” Process, Ceramix Composition, 1/2” NPT Extension (Many Options Available for Different Applications)

Process Temperature

  • -200° to 850° C (-328° to 1,562° F)

Version / Leadwires

  • 2-Wire
  • 3-Wire
  • 4-Wire
  • 4-Wire Compensated Loop
