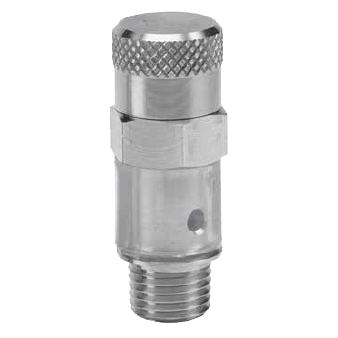

4500 Series Exhaust Port Flow Regulator

Brand: Midland-ACS
Exhaust Port Flow Regulators: 316L Stainless Steel Exhaust Flow Regulator/Breather supplied complete with tamper proof cap.
Features
Specifically Designed for Severe Environments
Ambient Temperature Range -20º to 70º C (-4° to 158° F)
Low Temperature option available
316L Stainless Steel
show more
Images are representations only.
Exhaust Port Flow Regulators: 316L Stainless Steel Exhaust Flow Regulator/Breather supplied complete with tamper proof cap.
Features
Specifically Designed for Severe Environments
Ambient Temperature Range -20º to 70º C (-4° to 158° F)
Low Temperature option available
316L Stainless Steel
4EFRSE122
MIDLANDS Series 4500 Exhaust Port Regulator, 1.8 Cv, 1/2" NPT, Low Temperature
Out of Stock

4500 Series Regulator

Process Connection

Temperature Options

Specifications

Brand

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)
  • -50° to 90° C (-58° to 194° F) Low Temperature Version

Approvals & Certifications

  • ATEX
  • CE
  • EAC

Enclosure, Body Material

  • 316L Stainless Steel

Flow Capacity

  • 1/2" - 64 scfm (108 m³/hour) - Cv 1.8
  • 1/4" - 23 scfm (38.79 m³/hour) - Cv 0.65
  • 3/8" - 39 scfm (66 m³/hour) - Cv 1.1

Internal Part Material

  • 316L Stainless Steel

Media

  • Air
  • Gases - Filtered Lubricated or Non-Lubricated
  • Inert Gas
  • Liquids - Low Pressure Hydraulic, Mineral Oil or Water
  • Sour Natural Gas
  • Sweet Natural Gas

NPT Connection

  • 1/2" NPT Male
  • 1/4" NPT Male
  • 3/8" NPT Male

Pressure Range

  • bar: 0 to 12
  • kPa: 0 to 1,200
  • psi: 0 to 174 (kPa: 0 to 1,200, bar: 0 to 12)

Seat/Seal Material

  • EPDM on Low Temperature Option
  • Nitrile

Spring Material

  • 316 Stainless Steel
