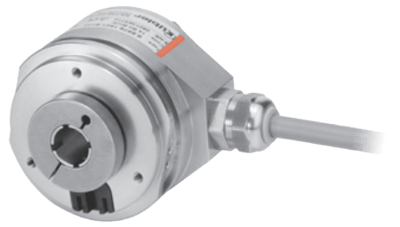

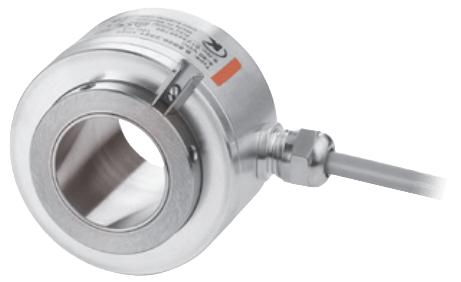

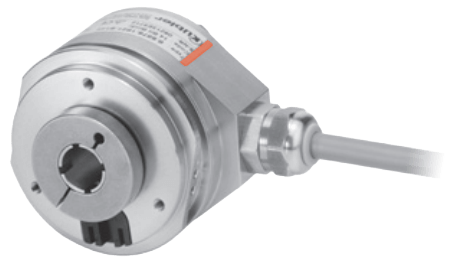

582X (Hollow Shaft) Incremental Encoder

Brand: Turck, Inc.
Features:
  • Sturdy model to industry standard, ø58 mm housing
  • Many variations, also customized versions
  • Short-circuit proof outputs
  • Reverse connection protection (at UB = 10-30 Vdc)
  • Highly flexible PVC-cable
  • Resolution up to 36,000 ppr
  • High shaft load
show more
Images are representations only.
Features:
  • Sturdy model to industry standard, ø58 mm housing
  • Many variations, also customized versions
  • Short-circuit proof outputs
  • Reverse connection protection (at UB = 10-30 Vdc)
  • Highly flexible PVC-cable
  • Resolution up to 36,000 ppr
  • High shaft load

582X (Hollow Shaft)

Type

Flange

  • view details

Hollow Shaft

Type of Connection / Supply Voltage

Type of Connection / Supply Voltage

Type of Connection / Supply Voltage

Connection Type

Pulse Rate

Pulse Rate

Specifications

Brand

Approvals & Certifications

  • CE Requirements According to EN 61000-6-2, EN 61000-6-4 & EN 61000-6-3
  • RoHS Compliant According to EU Guideline 2002/95/EG
  • UL (C,US): File 224618

Cable Length

  • 3 feet (1 Meter)

Cable Material

  • PVC

Capacity

  • Axial Load Capacity of Shaft: 40 N
  • Radial Load Capacity of Shaft: 80 N

Communication

  • RS-422 (TTL-Compatible)

Consumption

  • Power Consumption (No Load) with Inverted Signal for Push-Pull: 80 mA Typical (150 mA - Maximum)
  • Power Consumption (No Load) with Inverted Signal for RS-422 (TTL Compatible): 40 mA Typical (90 mA - Maximum)
  • Power Consumption (No Load) with Inverted Signals for Sine Wave: 65 mA Typical (110 mA - Maximum)
  • Power Consumption (No Load) without Inverted Signal for Push-Pull: 55 mA Typical (125 mA - Maximum)

Electrical Connectors

  • Axial 12-Pin Plug without Mating Connector

Electrical Protection

  • Short Circuit Proof Outputs

Environmental Protection

  • IP65
  • IP66

Frequency

  • -3 dB Frequency: ≤ 180 kHz
  • Pulse Frequency: 300 kHz, Maximum

Load

  • Permissible Load / Channel for Push-Pull: ± 30 mA - Maximum
  • Permissible Load / Channel for RS-422 (TTL Compatible): ± 20 mA - Maximum

Measuring Time

  • Rise & Fall Time for Push-Pull: 1 microsecond, Maximum
  • Rise & Fall Time for RS-422 (TTL-Compatible): 200 Nanoseconds, Maximum

Operating Temperature

  • -20° to 105° C (-4° to 221° F) for Model 5823
  • Constant Flexing: -20° to 70° C (-4° to 158° F)
  • Non-Condensing, for Continuous Operation 3,000 Min⁻¹, Ventilated: -20° to 85° C (-4° to 185° F)

Output Format

  • Push-pull
  • RS-422
  • Sine Wave

Pulse Range

  • 25 to 36,000 Pulses

Resolution

  • 36,000 Ppr

Reverse Polarity Protection

  • Yes (Only for 10-30 Vdc)

Shaft Material

  • Stainless Steel

Shock

  • Shock Resistance According to DIN-IEC 68-2-27: 1,000 m/sec², 6 milliseconds

Speed

  • Speed without Seal: Maximum

Supply Voltage

  • RS-422 (TTL Compatible) & Push-Pull: 5-30 Vdc
  • RS-422 (TTL Compatible) & Sine Wave: 5 V (± 5%)
  • RS-422 (TTL Compatible), Push-Pull & Sine Wave: 10-30 Vdc

Torque

  • Starting Torque: < 0.05 Nm

Vibration

  • Vibration Resistance According to IEC 68-2-6: 100 m/sec², 10 to 2,000 Hz
