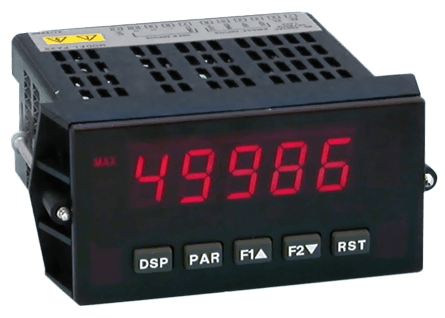

INDI-PAX/DISP-PAX Analog Input Panel Meter

Brand: Sensy S.A.
Universal panel meters for using with transducers and process signals.
Features
  • Strain gauge, process, voltage and current inputs
  • Intuitive and easy programming (high flexibility)
  • 16 points scaling for linearization
  • Programmable function keys/user inputs
  • Variable intensity display
  • Options:
    • 4(0) to 20 mA or 0-10 V Analog output
    • 2 or 4 setpoints with relay outputs
    • RS232, RS485, USB or fieldbus capabilities
    • NEMA 4X / IP 65
    • Desktop or industrial steel housing
    • Rail DIN adaptor
show more
Universal panel meters for using with transducers and process signals.
Features
  • Strain gauge, process, voltage and current inputs
  • Intuitive and easy programming (high flexibility)
  • 16 points scaling for linearization
  • Programmable function keys/user inputs
  • Variable intensity display
  • Options:
    • 4(0) to 20 mA or 0-10 V Analog output
    • 2 or 4 setpoints with relay outputs
    • RS232, RS485, USB or fieldbus capabilities
    • NEMA 4X / IP 65
    • Desktop or industrial steel housing
    • Rail DIN adaptor

Specifications

Brand

Accuracy

  • 0.1% of Full Scale

Applications

  • Industrial Weighing
  • Torque Measurement

Approvals & Certifications

  • CE

Communication

  • FOUNDATION Fieldbus
  • RS-232
  • RS-485
  • USB

Display

  • 5-Digits (14.2 mm)

Environmental Protection

  • IP54
  • IP65
  • NEMA 4X

Input

  • ± 24 mV
  • ± 240 mV
  • 0.2 mA to 2 A
  • 10 Vdc
  • 20 mA
  • 200 mVdc to 300 Vdc

Output

  • 0-10 V - Analog Output
  • 4-20 mA - Analog Output

Power Supply

  • 11-36 Vdc (11 W)
  • 24 Vac (15 VA)
  • 85-250 Vac (15 VA)

Sensor Excitation

  • 10 Vdc at 125 mA - Maximum
  • 24 Vdc ± 5% at 50 mA - Maximum

Service Temperature

  • 0° to 50° C (32° to 122° F)

Storage Temperature

  • -40° to 60° C (-40° to 140° F)
