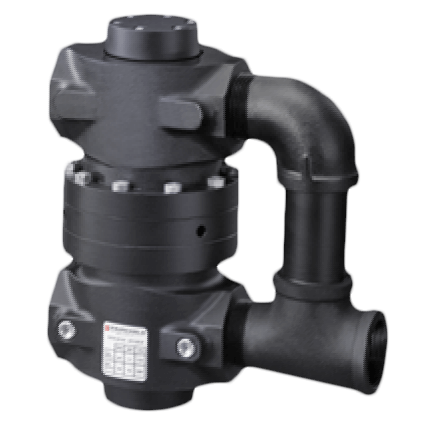

Model 200XLR Pneumatic Volume Booster

Brand: Fairchild Industrial Products
Based on the Model 200 valve body, the Rotork Fairchild Model 200XLR Volume Booster couples two identical units to obtain ultra high flow capacity in both forward and exhaust modes.

As a pilot operated regulator design, the M200 handles up to 250 psig, [17.0 BAR], (1,700 kPa) supply pressure and provides a flow Ultra high capacity of 1,800 SCFM (3,058 m3/HR), which equates to a Cv factor of approximately 18 in both forward and exhaust flow modes.
Features
  • Forward and exhaust flow capacity of 1800 SCFM (3058 m3/Hr)
  • Control sensitivity to 1" water column
  • Increased Sensitivity ("L") option
  • Separate Control Chamber
  • Optional Adjustable By-Pass Needle Valve (includes bubble tight exhaust valve)
show more
Based on the Model 200 valve body, the Rotork Fairchild Model 200XLR Volume Booster couples two identical units to obtain ultra high flow capacity in both forward and exhaust modes.

As a pilot operated regulator design, the M200 handles up to 250 psig, [17.0 BAR], (1,700 kPa) supply pressure and provides a flow Ultra high capacity of 1,800 SCFM (3,058 m3/HR), which equates to a Cv factor of approximately 18 in both forward and exhaust flow modes.
Features
  • Forward and exhaust flow capacity of 1800 SCFM (3058 m3/Hr)
  • Control sensitivity to 1" water column
  • Increased Sensitivity ("L") option
  • Separate Control Chamber
  • Optional Adjustable By-Pass Needle Valve (includes bubble tight exhaust valve)

Specifications

Ambient Temperature Range

  • -40° to 93.3° C (-40° to 200° F)

Diaphragm Material

  • Nitrile on Dacron

Elastomers

  • FluoroCarbon (Viton)

Enclosure, Body Material

  • Aluminum Die Cast

Exhaust Capacity - Relieving Units Only

  • 325 scfm (552.5 m³/hour)

Flow Capacity

  • 1500 scfm (2550 m³/hour) at psig: 100 (kPa: 700, bar: 7) Supply

NPT Connection

  • 1-1/2" NPT Female

Sensitivity

  • 1" WC (2.54 cm)

Signal or Output Pressure - Maximum

  • psig: 150 (kPa: 1,000, bar: 10)

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • psig: 250

Supply Pressure Effect

  • less than psig: 0.5 (bar: 0.035, kPa: 3.5) for psig: 100 (bar: 7, kPa: 700)

Trim Material

  • Aluminum
  • Brass
  • Stainless Steel
  • Zinc-Plated Steel
