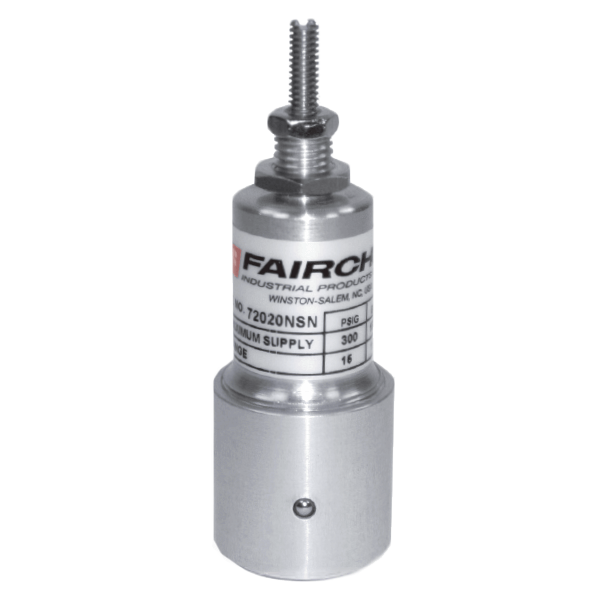

Model 72 High Performance Miniature Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 72 high performance miniature regulator has a slightly larger footprint than the Model 70, which in conjunction with its over molded pintle valve, provides highly responsive, yet extremely stable operation. The Aluminum bonnet and valve body of the Model 72 makes it a light weight and versatile product.

The Fairchild Model 72 pneumatic regulator features control sensitivity of 2" water column and a supply pressure effect of less than 0.5% to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Model 72 pressure regulator will handle a 250 psi, 17 BAR maximum supply pressure and offers five (5) set point pressure ranges from 0-5 psi, 0-3.5 BAR, 0-35 kPa up to 2-100 psi, 0.1-7 BAR, 15-700 kPa.
Features
  • Compact size
  • Repeatability within 0.02 psig dead ended
  • Lightweight Aluminum and zinc plated steel construction
  • Vibration damper
show more
The Rotork Fairchild Model 72 high performance miniature regulator has a slightly larger footprint than the Model 70, which in conjunction with its over molded pintle valve, provides highly responsive, yet extremely stable operation. The Aluminum bonnet and valve body of the Model 72 makes it a light weight and versatile product.

The Fairchild Model 72 pneumatic regulator features control sensitivity of 2" water column and a supply pressure effect of less than 0.5% to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Model 72 pressure regulator will handle a 250 psi, 17 BAR maximum supply pressure and offers five (5) set point pressure ranges from 0-5 psi, 0-3.5 BAR, 0-35 kPa up to 2-100 psi, 0.1-7 BAR, 15-700 kPa.
Features
  • Compact size
  • Repeatability within 0.02 psig dead ended
  • Lightweight Aluminum and zinc plated steel construction
  • Vibration damper
72010MKR
FAIRCHILD Model 72 High Performance Mini Regulator, 0-5 psig, 0-35 kPa, Manifold Mount, Knob Adjust, Relieving
8 - 12 days
72020MKR
FAIRCHILD Model 72 High Performance Mini Regulator, 0-15 psig, 0-100 kPa, Manifold Mount, Knob Adjust, Relieving
8 - 12 days

Specifications

Actuator Type

  • Knob
  • Screwdriver Slot
  • Tamper-Proof

Ambient Temperature Range

  • -40° to 71° C (-40° to 160° F)

Diaphragm Material

  • FluoroCarbon

Enclosure, Body Material

  • Aluminum - Anodized

Exhaust Capacity - Relieving Units Only

  • 0.15 scfm (0.29 m³/hour) with psig: 5 (kPa: 35, bar: 0.35) Downstream Pressure

Flow Capacity

  • 2.5 scfm (4.25 m³/hour)

Mounting

  • Bottom Port Mount
  • M5 x 0.8 Thread Ports
  • Manifold Mount

Pressure Range

  • bar: 0 to 7
  • kPa: 0 to 700
  • psig: 0 to 100

Relief

  • Non-Relieving
  • Relieving

Supply Pressure - Maximum

  • bar: 20.6
  • kPa: 2,068
  • psig: 300

Supply Pressure Effect

  • less than psig: 0.025 (kPa: 0.18, bar: 0.0018) for psig: 5 (kPa: 35, bar: 0.35) Change in Supply Pressure

Trim Material

  • Zinc-Plated Steel
