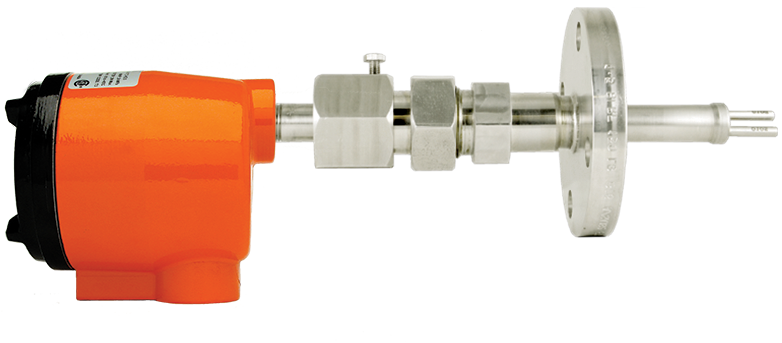

Kayden CLASSIC® 814 Flow, Level, Interface Switch & Transmitter

Brand: Kayden Instruments
The Kayden CLASSIC 814 Flow, Level, Interface Switch & Transmitter features a precision welded, highly accurate stainless steel sensor. Ideal for liquids, gases & slurries in a clean or dirty process. The CLASSIC 814 Retractable Packing Gland is available with a Raised Face or RTJ Flange, in a wide range of flange sizes and ANSI ratings, with low and medium pressure applications.

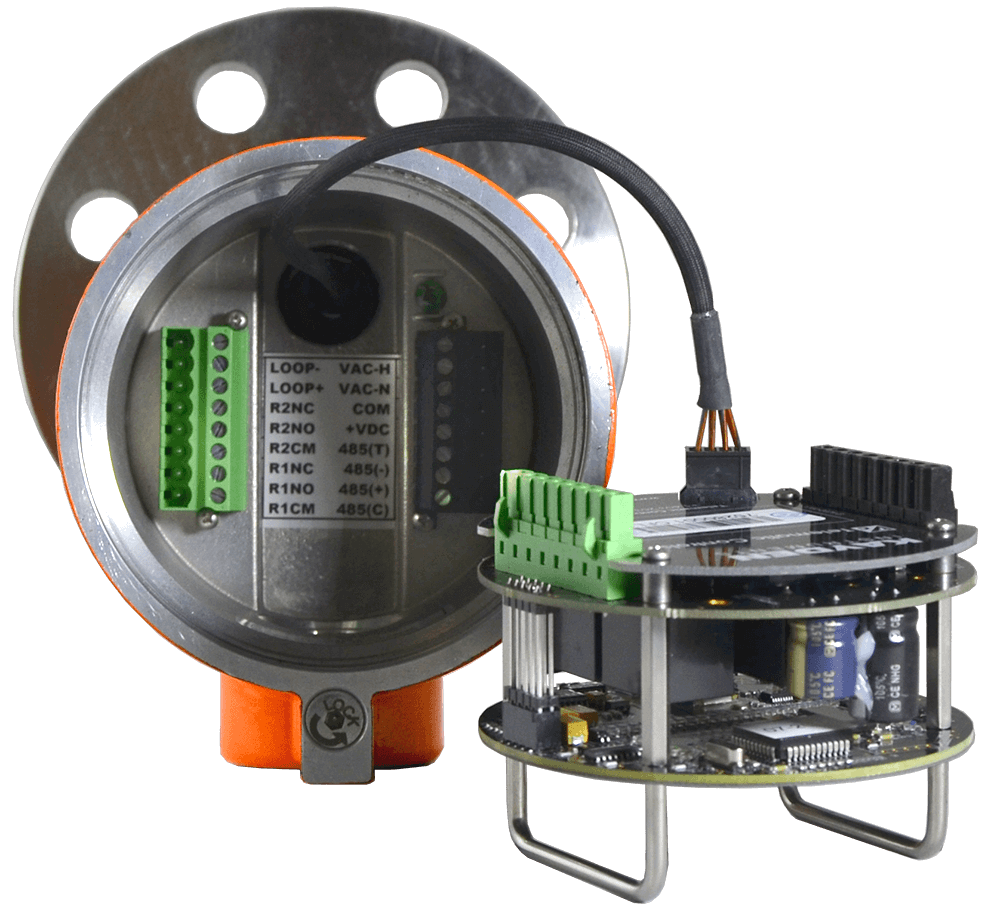

All Kayden models feature a rugged flameproof enclosure with blind or lens covers available. Kayden’s advanced digital electronics will revolutionize the way you monitor and control your process.

  • Process Connection
    • Retractable Packing Gland
    • Raised Face or RTJ Flange
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Insertion 'U' Length
    • Available in 1/2" (1 cm) increments
    • Min. 2.5" to Max. 120" (6.4 - 305 cm)
  • Input Power
    • 12-24 Vdc & 115-230 Vac, 50-60 Hz
  • Operating Pressure (Maximum)
    • Dependant on Flange Rating
  • Temperature Range (Sensor)
    • -40° C to 160° C, -40° F to 320° F
  • Local Enclosure
    • Aluminum Flameproof
    • 1" Female NPT Conduit Connection
  • Local Enclosure Cover
    • Blind or Glass Lens Flameproof
  • Materials of Construction (Sensor and Flange)
    • 316/316L Stainless Steel
  • Outputs/Communications
    • Two Independent Relays (SPDT)
    • 4-20 mA
    • Modbus
  • Approvals
    • CSA
    • FM
    • Single Seal
    • NACE
    • NEMA 4X
show more
The Kayden CLASSIC 814 Flow, Level, Interface Switch & Transmitter features a precision welded, highly accurate stainless steel sensor. Ideal for liquids, gases & slurries in a clean or dirty process. The CLASSIC 814 Retractable Packing Gland is available with a Raised Face or RTJ Flange, in a wide range of flange sizes and ANSI ratings, with low and medium pressure applications.

All Kayden models feature a rugged flameproof enclosure with blind or lens covers available. Kayden’s advanced digital electronics will revolutionize the way you monitor and control your process.

  • Process Connection
    • Retractable Packing Gland
    • Raised Face or RTJ Flange
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Insertion 'U' Length
    • Available in 1/2" (1 cm) increments
    • Min. 2.5" to Max. 120" (6.4 - 305 cm)
  • Input Power
    • 12-24 Vdc & 115-230 Vac, 50-60 Hz
  • Operating Pressure (Maximum)
    • Dependant on Flange Rating
  • Temperature Range (Sensor)
    • -40° C to 160° C, -40° F to 320° F
  • Local Enclosure
    • Aluminum Flameproof
    • 1" Female NPT Conduit Connection
  • Local Enclosure Cover
    • Blind or Glass Lens Flameproof
  • Materials of Construction (Sensor and Flange)
    • 316/316L Stainless Steel
  • Outputs/Communications
    • Two Independent Relays (SPDT)
    • 4-20 mA
    • Modbus
  • Approvals
    • CSA
    • FM
    • Single Seal
    • NACE
    • NEMA 4X
21 models matching criteria
814-RAA-131AT-I0025-C1B0A-1E
KAYDEN® CLASSIC® Thermal Flow, Level, Interface Switch, Modbus, Retractable Packing Gland, 1-1/2" 150# RF High-Hub SST Flange, 2.5"U Length, 316 SST Sensor, Local Electronics Enclosure with Blind Cover, Approvals: c CSA us (UL Standards)
5 - 7 days
$1,747.75USD
Does not ship to US
814-RAA-131AT-I0150-C1B0A-1E
KAYDEN® CLASSIC® Thermal Flow, Level, Interface Switch, Modbus, Retractable Packing Gland, 1-1/2" 150# RF High-Hub SST Flange, 15"U Length, 316 SST Sensor, Local Electronics Enclosure with Blind Cover, Approvals: c CSA us (UL Standards)
In Stock 5 - 7 days
$2,630.07USD
Does not ship to US
814-RAA-131ET-I0140-C1G0A-1E
KAYDEN® CLASSIC® Thermal Flow, Level, Interface Switch, Modbus, Retractable Packing Gland, 1-1/2" 150# RF Carbon Steel Flange, 14"U Length, 316 SST Sensor, Local Electronics Enclosure with Glass Lens Cover, Approvals: c CSA us (UL Standards)
In Stock 5 - 7 days
$2,630.07USD
Does not ship to US
814-RAA-141AT-I0160-C1B0A-1E
KAYDEN® CLASSIC® Thermal Flow, Level, Interface Switch, Modbus, Retractable Packing Gland, 2" 150# RF SST Flange, 36"U Length, 316 SST Sensor, Local Electronics Enclosure with Blind Cover, Approvals: c CSA us (UL Standards)
In Stock 5 - 7 days
$2,694.35USD
Does not ship to US
814-RAA-141AJ-M2000-C1G0A-9E
KAYDEN® CLASSIC® Thermal Flow, Level, Interface Switch, Modbus, Retractable Packing Gland, 2" 150# RF SST Flange, 200 cm U Length, 316 SST Sensor, Local Electronics Enclosure with Glass Lens Cover, Approvals: c CSA us (UL Standards)
In Stock 5 - 7 days
$2,931.40USD
Does not ship to US
814-RAA141AX-I0070-CIG0A1E
KAYDEN® CLASSIC® Thermal Flow, Level, Interface Switch, Modbus, Retractable Packing Gland, 2" 150# RF SST Flange, 7"U Length, 316 SST Sensor, Local Electronics Enclosure with Glass Lens Cover, Approvals: c CSA us (UL Standards)
In Stock 5 - 7 days
$3,224.70USD
Does not ship to US
814-RAA-141AT-I0360-C1B0A-1E
KAYDEN® CLASSIC® Thermal Flow, Level, Interface Switch, Modbus, Retractable Packing Gland, 2" 150# RF SST Flange, 36"U Length, 316 SST Sensor, Local Electronics Enclosure with Blind Cover, Approvals: c CSA us (UL Standards)
In Stock 5 - 7 days
$3,256.85USD
Does not ship to US
814-RAA-141AX-I0300-C1G0A-1E
KAYDEN® CLASSIC® Thermal Flow, Level, Interface Switch, Modbus, Retractable Packing Gland, 2" 150# RF SST Flange, 30"U Length, 316 SST Sensor, Local Electronics Enclosure with Glass Lens Cover, Approvals: c CSA us (UL Standards)
In Stock 5 - 7 days
$3,871.57USD
Does not ship to US
814-RAA131AT-M2700-C1B0A1E
KAYDEN® CLASSIC® Thermal Flow, Level, Interface Switch, Modbus, Retractable Packing Gland, 1-1/2" 150# RF High-Hub SST Flange, 270" U Length, 316 SST Sensor, Local Electronics Enclosure with Blind Cover, Approvals: c CSA us (UL Standards)
In Stock 5 - 7 days
$5,245.67USD
Does not ship to US
814-RAA-161AT-I1390-C1B0A-1E
KAYDEN® CLASSIC® Thermal Flow, Level, Interface Switch, Modbus, Retractable Packing Gland, 4" 150# RF SST Flange, 139"U Length, 316 SST Sensor, Local Electronics Enclosure with Blind Cover, Approvals: c CSA us (UL Standards)
In Stock 5 - 7 days
$6,222.00USD
Does not ship to US

Specifications

Accuracy

  • Flow Service: ± 1.0% of Set Point Velocity over Operating Range of ± 28° C (± 50° F)
  • Level Service: ± 0.64 cm (0.25")

Applications

  • Flow
  • Interface
  • Level

Approvals & Certifications

  • CRN - Canadian Registration Number - the Kayden Classic 814 Does Not have A CRN Number
  • CSA
  • CSA - Local (Sensor) Enclosure Flameproof: Class I, Division 1, Groups B, C, D, Ex D IIB + H2 AEx D IIB + H2 (Class I, Zone 1, Group IIB + H2) Temperature Code: T3 Enclosure Typical 4, IP55 Single Seal Approved Per ANSI/ISA 12.27.01-2003
  • CSA - Remote Electronics Enclosure - Optional Flameproof: Class I, Groups B, C, D, Ex D IIB + H2 AEx D IIB + H2 (Class I, Zone 1, Groups IIB + H2) Temperature Code: T3
  • FM
  • FM - Local (Sensor) Enclosure Flameproof: Class I, Division 1, Groups B, C, D Temperature Codes: T2D (Ta=75° C), T3 (Ta=65° C) Class I, Zone 1, AEx D IIB + H2 Enclosure Typical 4/IP55
  • FM - Remote Electronics Enclosure - Optional Flameproof: Class I, Division 1, Groups B, C, D Temperature Codes: T2D (Ta=75° C), T3 (Ta=65° C) Class I, Zone 1, AEx D IIB + H2 Enclosure Typical 4/IP55

Communication

  • Modbus RTU Communication-Alarms, Flow Status & Diagnostics
  • RS-485 Using Kayden's Remote Control & Monitoring Software (RCMS) or other Modbus Compatible Software

Cover - for Local Enclosure

  • Blind Cover - Flameproof
  • Glass Lens Cover - Flameproof

Electronics - Standard Features

  • *Configurable only from the Kayden RCM Software
  • 100% Digital Design. Electronics are Environmentally Sealed
  • 4-Adjustable Independent Switch Point Timers
  • Automated Redundant Self-Test Diagnostics
  • Display Panel Lock-Out*
  • Easy Setup: No Mechanical Jumpers or Trim Pots
  • Incrementally Adjustable Heater Power (5% Steps) with Automatic Over-Range Protection
  • Intelligent User Interface with Push-Button & Constant Display of Operation (Flow/Level)
  • Start-Up Bypass Timer
  • Temperature Compensation
  • Temperature Mode*: Process Temperature may be Displayed/Graphed in Flow/Level Mode

Enclosure Finish

  • Powder-Coated Polyester TGIC

Enclosure, Body Details

  • 1" NPT Female Conduit Connection
  • Buna-N O-Ring on Cover

Enclosure, Body Material

  • Copper-Free Aluminum (Does Not Exceed 0.4% Copper)

Environmental Protection

  • IP55
  • NEMA 4 / IP55

Flange Material

  • 316 Stainless Steel

Flange Size - 10" (DN250)

  • 10" (DN250) - 150#

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 150#

Flange Size - 2" (DN50)

  • 2" (DN50) - 150#

Flange Size - 3" (DN80)

  • 3" (DN80) - 150#

Flange Size - 4" (DN100)

  • 4" (DN100) - 150#

Flange Size - 5" (DN125)

  • 5" (DN125) - 150#

Flange Size - 6" (DN150)

  • 6" (DN150) - 150#

Flange Size - 8" (DN200)

  • 8" (DN200) - 150#

Flange Type

  • Raised Face (RF)
  • RTJ - Ring Typical Joint

Input Power

  • 12-24 Vdc, 115-230 Vac, 50/60 Hz / Universal Power Input
  • Power Consumption: Maximum

Insertion 'U' Length

  • Custom 'U' Lengths 2.5" to 120" (6.4 cm to 305 cm) Available in 1/2" (1.0 cm) Increments.

Operating Pressure - Sensor

  • Maximum

Operating Temperature - Electronics

  • -55° to 65° C (-67° to 149° F)

Operating Temperature - Sensor

  • -40° to 160° C (-40° to 320° F)

Output

  • 4-20 mA (Thermal Signal, Scaleable)

Principle of Operation

  • Thermal, Calorimetric

Process Connection Style

  • Flanged Retractable

Remote Control & Monitoring Software

  • Adjust Relay Modes
  • Adjust Set Points 1 & 2
  • Load or Save User Settings
  • Lock or Unlock the Display Panel to Protect the Settings
  • Many Other Adjustable Features
  • Modify Heater Settings to Optimize Response Time
  • Monitor Operating Status
  • Operated Via a Personal Computer Locally or from a Remote Control Center
  • Visualize the Actions of the Process Via the Graphical Display

Remote Electronics Enclosure & Cover

  • Blind Cover - Flameproof
  • Glass Lens Cover - Flameproof

Response Time

  • Approximately 0.5 to 30 seconds

Retraction Assembly

  • Low Pressure with Security Chain, 316, 316L Stainless Steel (MWP 125 psi)
  • Low Pressure: 316, 316L Stainless Steel (MWP 50 psi)
  • Medium Pressure: 316, 316L Stainless Steel (MWP 500 psi)

Sensor, Probe Style

  • Insertion

Storage Temperature

  • Product Should Be Stored in a Clean & Dry Environment between -30° & 60° C (-22° & 140° F)

Switch Point Range

  • Gases: 0.25 to 200 sfps, 0.08 to 60 SMPS - Standard Condition 21° C (70° F) at 14.7 psi (1 Atm)
  • Hydrocarbon-based Liquids: 0.01 to 5.0 FPS, 0.003 to 1.50 MPS
  • Water-based Liquids: 0.01 to 3.00 FPS, 0.003 to 0.9 MPS

Switch Type

  • 2 SPDT Sealed Relay Contacts Rated @ 4 Amps Resistive 230 Vac or 30 Vdc, Maximum

Wetted Materials

  • 316, 316L Stainless Steel
  • All-Welded Construction
  • Highly Saturated Nitrile (Pressure Seal-sensor)

Typical Applications

Flow
  • Pump Protection – Dry Alarm
  • Leak Detection
  • Flow Monitoring & Verification
  • Tank Overflow Protection
  • Flare Gas Monitoring
  • Monitoring Purge Air Flow
  • Lube Oil Systems
  • Vent Monitoring
  • Natural Gas to Boilers
  • Emergency Eye Wash & Shower Stations
  • Drain Line Flow
  • High Pressure Flows
  • Tanker Loading & Unloading
  • Relief Valve & Rupture Disk Flow Monitoring
  • Remote Indication of Flow via Analog Output & Digital Communications
  • Chemical Injection/Additive Flow Monitoring
Level
  • Storage Tanks
  • Oil Separators & Treaters – High, Low & Interface Level
  • Sumps – All Types of fluids ( Water, Oil, etc. )
  • Free Water Knock-out Tanks – High, Low and Interface Level
  • Leak Detection (Accumulation Reservoir)
  • Tank Overflow
  • Sampler Systems
  • Sand Separators
Interface
  • Interface Control in Separation Vessels
  • Interface Detection
  • Interface Control & Level Detection in Settling Vessels
Media
  • Liquids, Air & Gases
  • Hazardous & General-Purpose Areas
  • Slurries
  • Corrosive Liquids
