Description

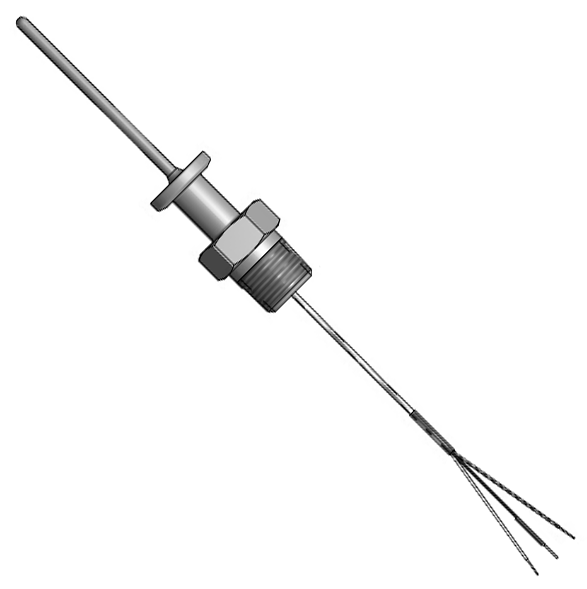

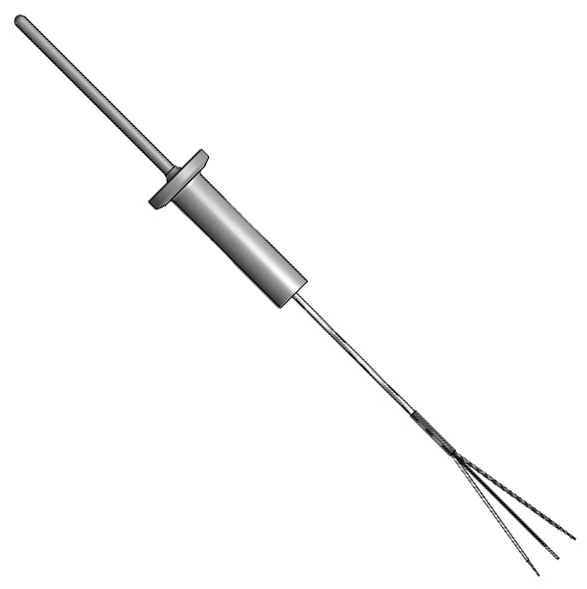

Miniature CIP sanitary RTD temperature sensors are provided with 16AMP sanitary caps to fit 1/2" and 3/4" tube size sanitary fittings. They are used in pharmaceutical, chemical, biotech, R & D laboratory, and food process applications. The sanitary caps are welded to the sheath, all made of 316 stainless steel, and then ground and polished to a finish that meets or exceeds 15µin Ra. 3.1 surface finish test reports that list actual finish measurements are available for an additional charge.
The process contact surfaces are free of pits, crevices, and pockets thus preventing corrosion and bacteria growth. All leads are fluoropolymer insulated to further provide moisture and chemical resistance. The listed sheath lengths provide assurance that the sensing element is properly placed in the flowing medium when used with typical sanitary tees and tube fittings, and the small sheath diameter provides fast temperature response times.
Configure
Miniature Sanitary CIP RTD Sensors
RTD Assemblies - Tolerance
Element Connection
Immersion Length "X"
Sanitary Cap Style
Sanitary Cap Size
Terminations
Transmitter Cover
Transmitter Configuration
Transmitter Configuration
Failure Mode
Units Of Measure
Units Of Measure
Stainless Steel Tag Option
Security Screw Option
Stainless Steel Tag Option
Transmitter Options
Transmitter Type
Transmitter Configuration
Transmitter Configuration
Failure Mode
Units Of Measure
Units Of Measure
Leadwire Extension Type
"B" Length In Inches
"C" Length In Inches
Lead Terminations
Cord Grip Options
Mating Connector Options
Documentation
Documentation
