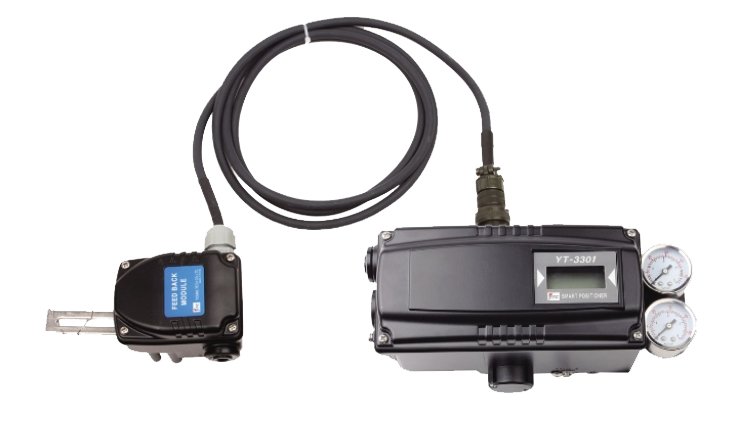

YT-3301 Smart Positioner

Brand: Young Tech Co., Ltd
The YT-3301 Smart Positioner supplies remote functions and higher liabilities in high temperature and vibration environment. Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, PID control, Alarm, and Hart protocol.
Features
  • Seperated feedback module
  • HART communication
  • Auto calibration
  • PID control
  • 4 buttons for local control
  • LCD display
  • Feedback signal
  • Auto/Manual Switch
show more
Images are representations only.
The YT-3301 Smart Positioner supplies remote functions and higher liabilities in high temperature and vibration environment. Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, PID control, Alarm, and Hart protocol.
Features
  • Seperated feedback module
  • HART communication
  • Auto calibration
  • PID control
  • 4 buttons for local control
  • LCD display
  • Feedback signal
  • Auto/Manual Switch

YT-3301

Motion Type

Acting Type

Explosion-Proof

Lever Type

Connection

Communication

Options

Temperature Range

Cable Length

Specifications

Ambient Temperature Range

  • -30° to 85° C (-22° to 185° F)

Approvals & Certifications

  • ATEX
  • IEC
  • IEC Ex
  • KC

Communication

  • HART

Conduit Connection

  • PF 1/2 (G 1/2")

Enclosure, Body Material

  • Die Cast Aluminum

Environmental Protection

  • IP66

Flow Capacity

  • 70 LPM

Hysteresis

  • ± 0.05% of Span

Independent Linearity

  • ± 0.5% of Full Scale

Input Signal

  • 4-20 mA DC

NPT Connection

  • 1/4" NPT

Operating Temperature - Sensor

  • -40° to 120° C (-40° to 248° F)

PT/PF/PS (JIS) Connection

  • 1/4" PT

Supply Pressure

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • psig: 20.3 to 101.5
