Images are representations only.

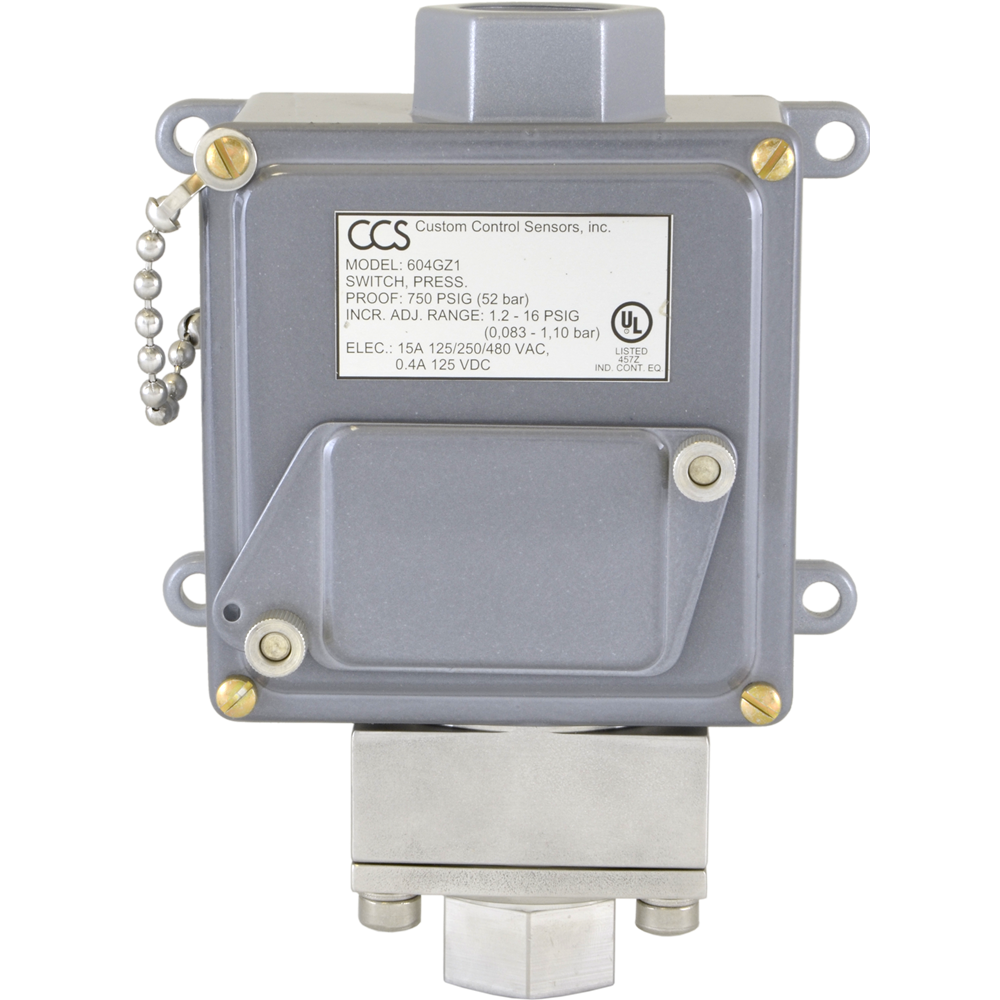

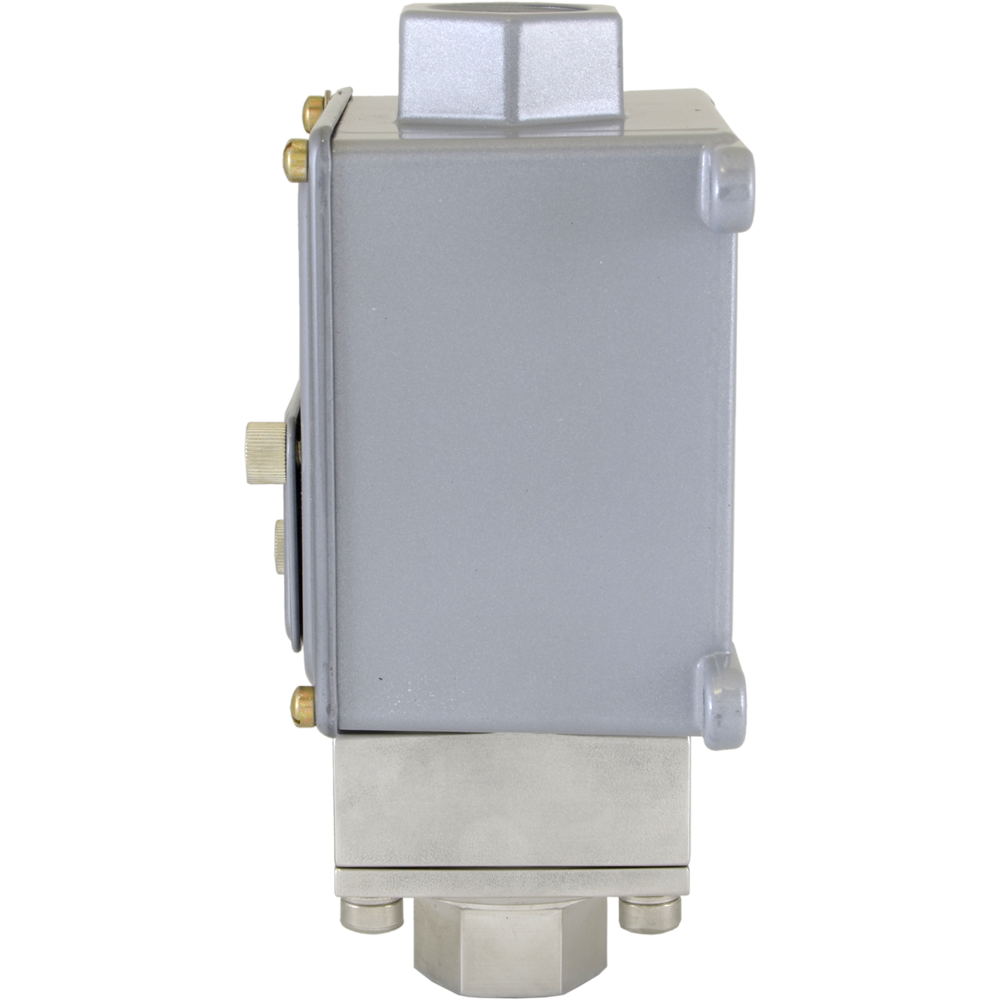

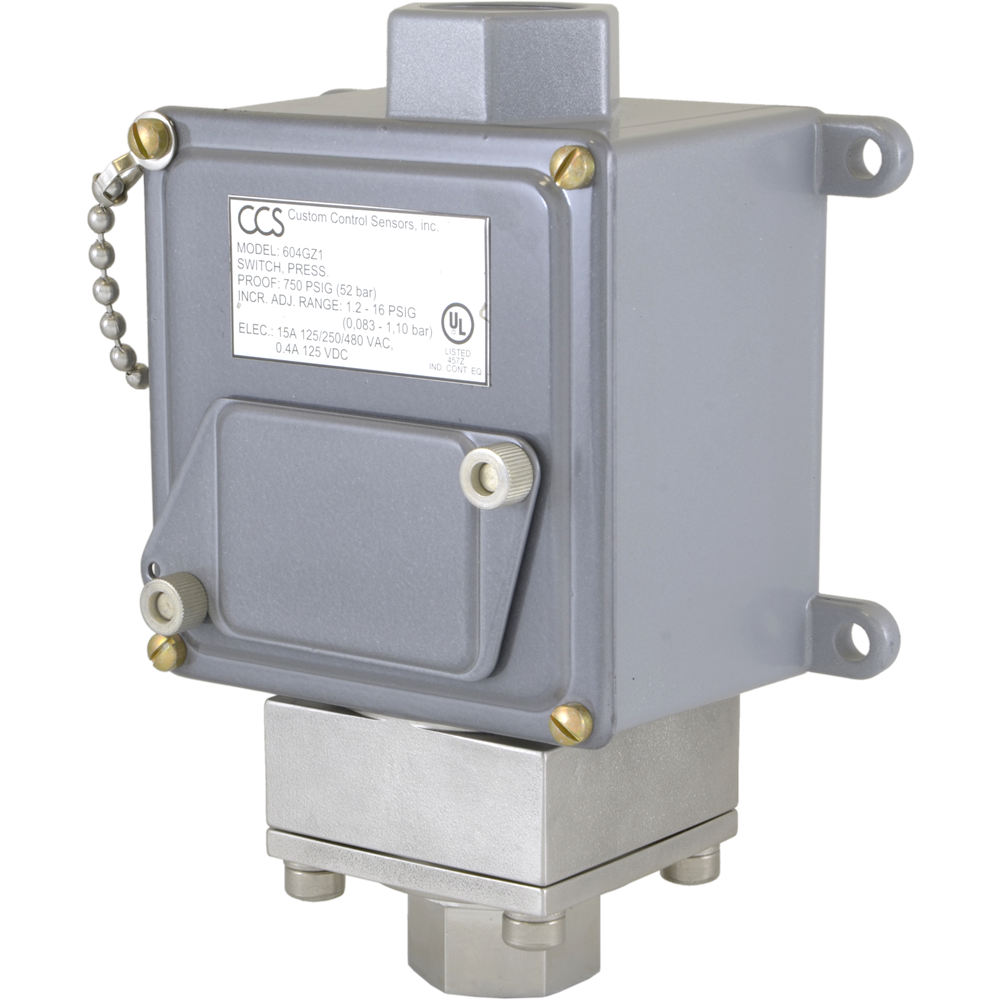

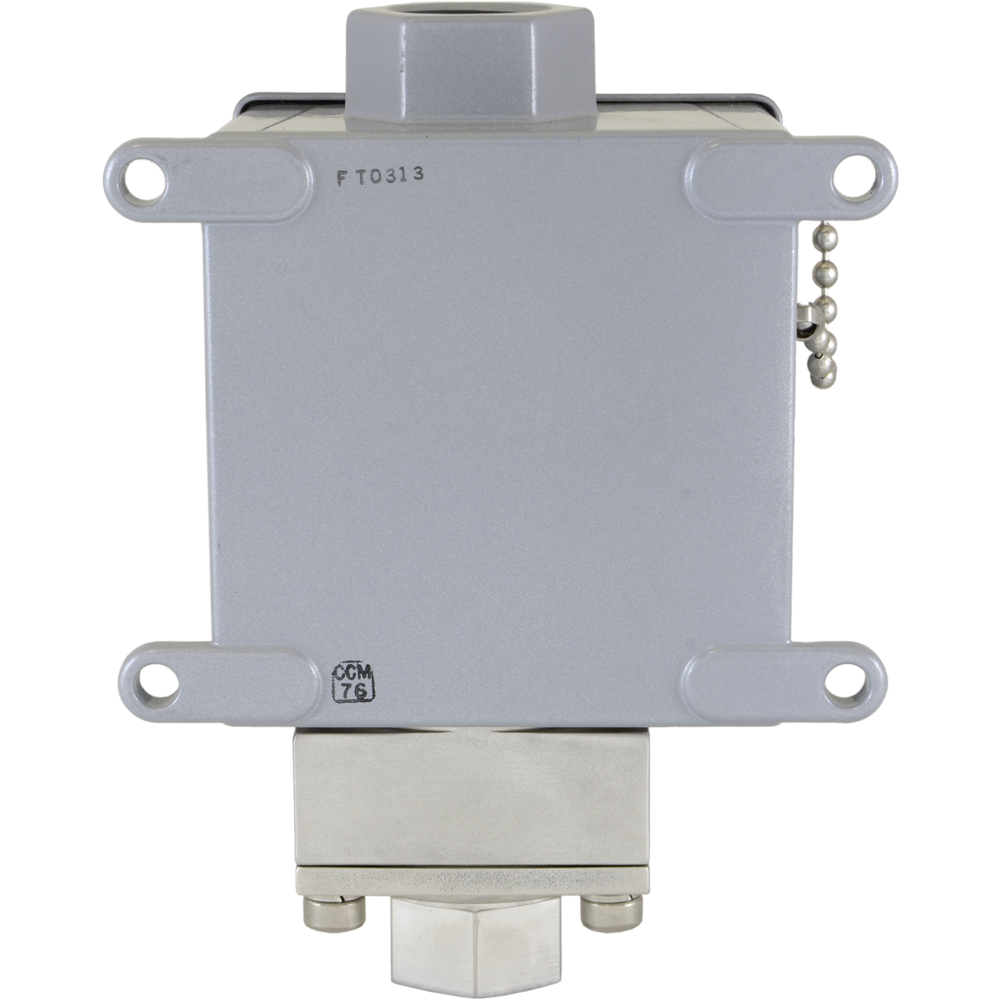

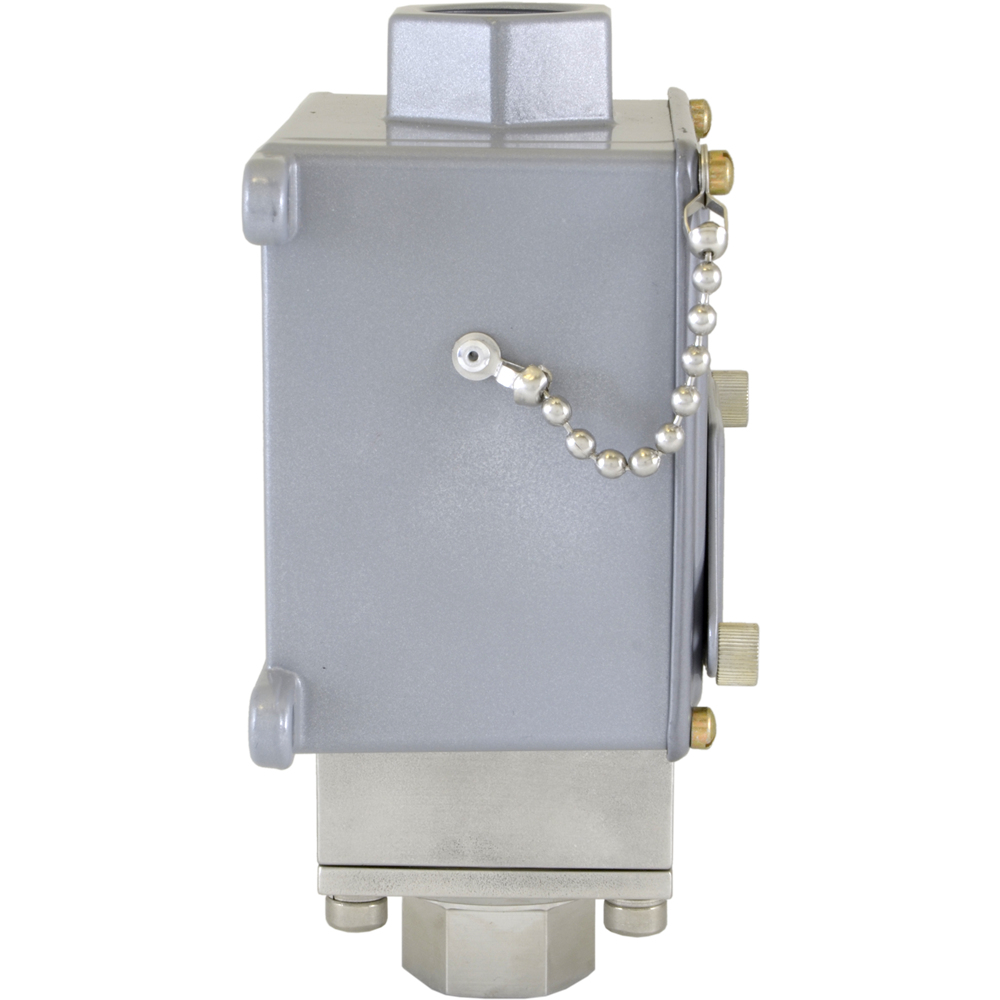

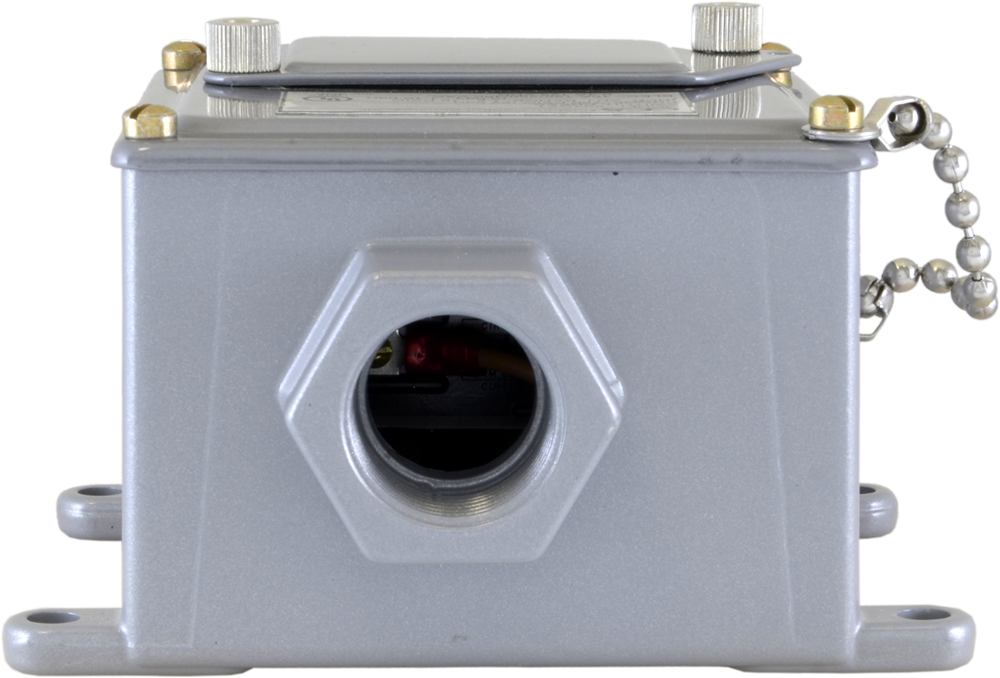

604GZ Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Adjustable Set Point Range:
    • Increasing: 1.2 to 2300 psig, 8.3 to 15,857.9 kPa, 0.08 to 159 bar
    • Decreasing: 0.4 to 2125 psig, 2.8 to 14,651.3 kPa, 0.03 to 147 bar
  • Deadband: Approximately 0.8 to 175 psi, 5.5 to 1206 kPa, 0.06 to 12.1 bar
  • System Pressure (Maximum): 500 to 3000 psig, 3447.3 to 20,684.27 kPa, 34.5 to 207 bar
  • Proof Pressure: 750 to 5000 psig, 5171 to 34,473.78 kPa, 51.7 to 345 bar
  • Wetted Materials:

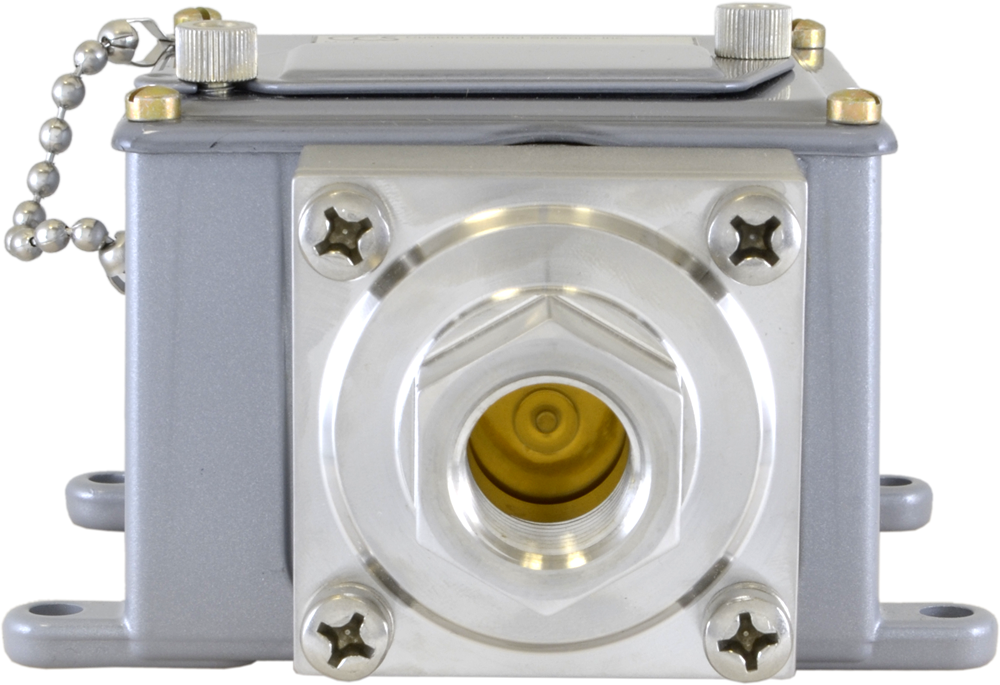

    • Pressure Port: 1/2" Female NPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, General Purpose
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 1.2 to 2300 psig, 8.3 to 15,857.9 kPa, 0.08 to 159 bar
    • Decreasing: 0.4 to 2125 psig, 2.8 to 14,651.3 kPa, 0.03 to 147 bar
  • Deadband: Approximately 0.8 to 175 psi, 5.5 to 1206 kPa, 0.06 to 12.1 bar
  • System Pressure (Maximum): 500 to 3000 psig, 3447.3 to 20,684.27 kPa, 34.5 to 207 bar
  • Proof Pressure: 750 to 5000 psig, 5171 to 34,473.78 kPa, 51.7 to 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" Female NPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, General Purpose
Close

Displaying prices & availability for United States in USD. Change location or currency

24 models matching criteria
604GZM11-7011
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, DPDT View More
  • Adjustable Set Point Range:
    • Increasing: 20 to 150 psig, 137.9 to 1,034.2 kPa, 1.4 to 10.3 bar
    • Decreasing: 6 to 136 psig, 41.4 to 937.7 kPa, 0.4 to 9.4 bar

  • Deadband: Approximately 14 psi, 82.73 kPa, 0.8 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: DPDT
  • UL, CRN, CE Mark, NACE, General Purpose
4 In Stock
$960.90USD
$19.17 Shipping
604GZM11
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port, Polyimide, Viton, DPDT View More
  • Adjustable Set Point Range:
    • Increasing: 20 to 150 psig, 137.9 to 1,034.2 kPa, 1.4 to 10.3 bar
    • Decreasing: 8 to 138 psig, 55.2 to 951.4 kPa, 0.6 to 9.5 bar

  • Deadband: Approximately 12 psi, 82.73 kPa, 0.8 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: DPDT
  • UL, CRN, CE Mark, General Purpose
2 In Stock
Non-Cancellable / Non-Refundable
$947.62USD
$19.17 Shipping
604GZ11
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port, Polyimide, Viton View More
  • Adjustable Set Point Range:
    • Increasing: 20 to 150 psig, 137.9 to 1034.2 kPa, 1.4 to 10.3 bar
    • Decreasing: 8 to 138 psig, 55.2 to 951.47 kPa, 0.6 to 9.5 bar

  • Deadband: Approximately 12 psi, 82.74 kPa, 0.8 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CRN, CE Mark, General Purpose
5 - 7 weeks
$797.18USD
Does not ship to US
604GZ2
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port, Polyimide, Viton View More
  • Adjustable Set Point Range:
    • Increasing: 8 to 75 psig, 55.2 to 517.1 kPa, 0.6 to 5.2 bar
    • Decreasing: 3 to 70 psig, 20.7 to 482.6 kPa, 0.2 to 4.8 bar

  • Deadband: Approximately 5 psi, 34.47 kPa, 0.34 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CRN, CE Mark, General Purpose
Contact For Inventory
$797.18USD
$19.17 Shipping
604GZ3
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port, Polyimide, Viton View More
  • Adjustable Set Point Range:

    • Increasing: 50 to 375 psig, 344.8 to 2585.5 kPa, 3.5 to 25.9 bar
    • Decreasing: 22 to 347 psig, 151.7 to 2392.4 kPa, 1.5 to 23.9 bar

  • Deadband: Approximately 28 psi, 193.05 kPa, 1.9 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CRN, CE Mark, General Purpose
Contact For Inventory
$797.18USD
Does not ship to US
604GZ5
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port, Polyimide, Viton View More
  • Adjustable Set Point Range:
    • Increasing: 330 to 1000 psig, 2,275.2 to 6,894.7 kPa, 22.8 to 68.9 bar
    • Decreasing: 265 to 935 psig, 1,827.1 to 6,446.6 kPa, 18.3 to 64.5 bar

  • Deadband: Approximately 65 psi, 448.1 kPa, 4.5 bar
  • System Pressure (Maximum): 3000 psig, 20,684.2 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CRN, CE Mark, General Purpose
5 - 7 weeks
$797.18USD
Does not ship to US
604GZ1
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port, Polyimide, Viton View More
  • Adjustable Set Point Range:

    • Increasing: 1.2 to 16 psig, 8.3 to 110.3 kPa, 0.08 to 1.1 bar
    • Decreasing: 0.4 to 15.2 psig, 2.8 to 104.8 kPa, 0.03 to 1.04 bar

  • Deadband: Approximately 0.8 psi, 5.51 kPa, 0.05 bar
  • System Pressure (Maximum): 500 psig, 3,447.38 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CRN, CE Mark, General Purpose
5 - 7 weeks
$879.78USD
Does not ship to US
604GZM2
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port, Polyimide, Viton, DPDT View More
  • Adjustable Set Point Range:
    • Increasing: 8 to 75 psig, 55.2 to 517.1 kPa, 0.6 to 5.2 bar
    • Decreasing: 3 to 70 psig, 20.7 to 482.6 kPa, 0.2 to 4.8 bar

  • Deadband: Approximately 5 psi, 34.47 kPa, 0.34 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: DPDT
  • UL, CRN, CE Mark, General Purpose
5 - 7 weeks
Non-Cancellable / Non-Refundable
$947.62USD
Does not ship to US
604GZM3
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port, Polyimide, Viton, DPDT View More
  • Adjustable Set Point Range:
    • Increasing: 50 to 375 psig, 344.8 to 2585.5 kPa, 3.5 to 25.9 bar
    • Decreasing: 22 to 347 psig, 151.7 to 2392.4 kPa, 1.5 to 23.9 bar

  • Deadband: Approximately 28 psi, 193.05 kPa, 1.9 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: DPDT
  • UL, CRN, CE Mark, General Purpose
5 - 7 weeks
$947.62USD
Does not ship to US
604GZM1
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port, Polyimide, Viton, DPDT View More
  • Adjustable Set Point Range:
    • Increasing: 1.2 to 16 psig, 8.3 to 110.3 kPa, 0.08 to 1.1 bar
    • Decreasing: 0.4 to 15.2 psig, 2.8 to 104.8 kPa, 0.03 to 1.04 bar

  • Deadband: Approximately 0.8 psi, 5.51 kPa, 0.06 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: DPDT
  • UL, CRN, CE Mark, General Purpose
5 - 7 weeks
Non-Cancellable / Non-Refundable
$982.28USD
Does not ship to US
Show More Models (13)
Close
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • cUL
  • EMC
  • LVD
  • PED
  • RoHS
  • UL

Deadband, Approximate

  • bar: 0.06 to 12.1
  • kPa: 5.6 to 1,206.5
  • psig: 0.8 to 175

Diaphragm Material

  • Polyimide
  • Viton Dacron

Electrical Connectors

  • Terminal Strip - Internal

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66
  • Non-Hazardous Area

Manual Reset

  • Manual Reset on Increasing Pressure

NACE & NIST

  • NACE

NPT Connection

  • 1/2” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • 316 Stainless Steel

Proof Pressure

  • bar: 51.7 to 345
  • kPa: 5,171 to 34,473
  • psig: 750 to 5,000

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.03 to 147
  • kPa: 2.8 to 14,651
  • psig: 0.4 to 2,125

Set Point - Increasing

  • bar: 0.08 to 159
  • kPa: 8.3 to 15,858
  • psig: 1.2 to 2,300

Standard Features

  • Internal Case Ground
  • Weatherproof

Switch Type

  • SPDT

System Pressure

  • bar: 34.5 to 207
  • kPa: 3,447 to 20,684
  • psig: 500 to 3,000
