Images are representations only.

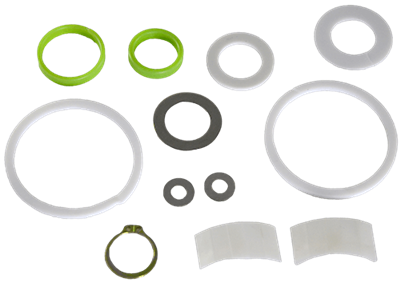

90 Series Repair Kit

Brand: A-T Controls, Inc
Features
  • Series: 90 150# Flanged 2-Piece
  • Type: Repair Kit
  • Seat: RTFE, PTFE, TFM-1600, MG1241, UHMWPE, 50/50%
  • Valve Size: 1/2" to 12" NPT
Features
  • Series: 90 150# Flanged 2-Piece
  • Type: Repair Kit
  • Seat: RTFE, PTFE, TFM-1600, MG1241, UHMWPE, 50/50%
  • Valve Size: 1/2" to 12" NPT
Close

Specifications

Brand

Direct Mount

  • Yes

Enclosure, Body Material

  • 316 Stainless Steel
  • Alloy 20 or Incoloy
  • WCB Carbon Steel

Flange Size - 1-1/2” (DN 40)

  • 1-1/2" (DN 40) - 150#

Flange Size - 1” (DN 25)

  • 1" (DN 25) - 150#

Flange Size - 1/2” (DN 15)

  • 1/2" (DN 15) - 150#

Flange Size - 10” (DN 250)

  • 10" (DN 250) - 150#

Flange Size - 12” (DN 300)

  • 12" (DN 300) - 150#

Flange Size - 2-1/2” (DN 65)

  • 2-1/2" (DN 65) - 150#

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150#

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 150#

Flange Size - 3/4” (DN 20)

  • 3/4" (DN 20) - 150#

Flange Size - 4” (DN 100)

  • 4" (DN 100) - 150#

Flange Size - 6” (DN 150)

  • 6" (DN 150) - 150#

Flange Size - 8” (DN 200)

  • 8" (DN 200) - 150#

Options

  • Cleaned for Oxygen
  • Gear Operator
  • Stem Extension
  • Vented Ball

Port

  • Full

Pressure Rating

  • psi: 285

Pyramidal Stem Packing

  • Yes

Seat / Seal Material

  • 50 % Stainless Steel Powder / 50 % Carbon-Filled Teflon
  • MG1241
  • PEEK
  • PTFE (Carbon-Filled Teflon)
  • RTFE (Reinforced Teflon)
  • TFM 1600
  • UHMWPE

TA-Luft Certified

  • Yes

Trim Material

  • 316 Stainless Steel
