Description

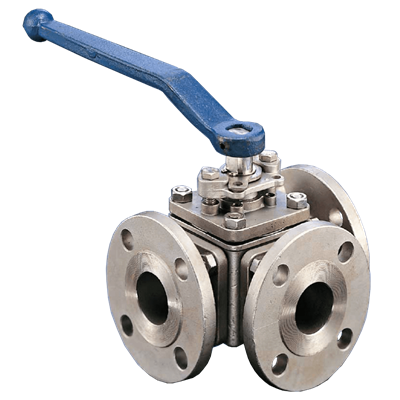

The multi-port 4-Way direct mount ball valve offers the superior performance and reliability that is required to optimize process performance.
This versatile, high performance multi-port ball valve offers solutions to mixing and diverting with various flow patterns and end configurations available.
It can be maintained in-line, leaving the end pieces intact.
The direct mount design makes automation easier and maintains a lower profile.
This valve features the pyramidal stem design that is so effective in other A-T valve series.
There are a myriad of end piece and flow pattern combinations available.
Features- Design: Multi-Port 4-Way Valve
- Size: 1/4" to 4"
- Port: Full
- Direct Mount: Yes
- Pyramidal Stem Packing: Yes
- Materials of Construction:
- Body: 316 Stainless Steel
- Trim: 316 Stainless Steel
- Available Seats: RTFE, PTFE, 50/50%, Cavity Filled
- End Connections: Threaded Ends, Socket Weld, Butt Weld, Sanitary, Flanged
- Maximum Pressure Rating: 300 to 1,000 psi - Valve Size Dependent
Configure
Specifications
Specifications
Brand
Direct Mount
- Yes
Enclosure, Body Material
- 316 Stainless Steel
Flange Size - 1-1/2” (DN 40)
- 1-1/2" (DN 40) - 150#
- 1-1/2" (DN 40) - 300#
Flange Size - 1” (DN 25)
- 1" (DN 25) - 150#
- 1" (DN 25) - 300#
Flange Size - 1/2” (DN 15)
- 1/2" (DN 15) - 150#
- 1/2" (DN 15) - 300#
Flange Size - 2-1/2” (DN 65)
- 2-1/2" (DN 65) - 150#
- 2-1/2" (DN 65) - 300#
Flange Size - 2” (DN 50)
- 2" (DN 50) - 150#
- 2" (DN 50) - 300#
Flange Size - 3” (DN 80)
- 3" (DN 80) - 150#
- 3" (DN 80) - 300#
Flange Size - 3/4” (DN 20)
- 3/4" (DN 20) - 150#
- 3/4" (DN 20) - 300#
Flange Size - 4” (DN 100)
- 4" (DN 100) - 150#
- 4" (DN 100) - 300#
NPT Connection
- 1" NPT Female
- 1/2" NPT Female
- 1/4" NPT Female
- 1-1/2" NPT Female
- 1-1/4" NPT Female
- 2" NPT Female
- 2-1/2" NPT Female
- 3" NPT Female
- 3/4" NPT Female
- 3/8" NPT Female
- 4" NPT Female
Options
- 4-Way Multi Port Valve
Port
- Full
Pressure Rating
- psi: 1,000 (bar: 69 bar, kPa: 6,895) at -30° to 150° C (-22° to 302° F) with 1/4" to 1" Valve
Pyramidal Stem Packing
- Yes
Seat / Seal Material
- 50 % Stainless Steel Powder / 50 % Carbon-Filled Teflon
- Cavity Filled
- PTFE (Carbon-Filled Teflon)
- RTFE (Reinforced Teflon)
Standard Features
- 4-Way High Performance, Direct Mount
TA-Luft Certified
- Yes
Tri-Clamp Connection
- 1" Sanitary Clamp
- 1/2" Sanitary Clamp
- 1-1/2" Sanitary Clamp
- 2" Sanitary Clamp
- 2-1/2" Sanitary Clamp
- 3" Sanitary Clamp
- 3/4" Sanitary Clamp
- 4" Sanitary Clamp
Trim Material
- 316 Stainless Steel
Valve Type
- Manual
Welded Connection
- 1" Butt Weld End
- 1" Socket Weld End
- 1/2" Butt Weld End
- 1/2" Socket Weld End
- 1/4" Butt Weld End
- 1/4" Socket Weld End
- 1-1/2" Butt Weld End
- 1-1/2" Socket Weld End
- 1-1/4" Butt Weld End
- 1-1/4" Socket Weld End
- 2" Butt Weld End
- 2" Socket Weld End
- 2-1/2" Butt Weld End
- 2-1/2" Socket Weld End
- 3" Butt Weld End
- 3" Socket Weld End
- 3/4" Butt Weld End
- 3/4" Socket Weld End
- 3/8" Butt Weld End
- 3/8" Socket Weld End
- 4" Butt Weld End
- 4" Socket Weld End
