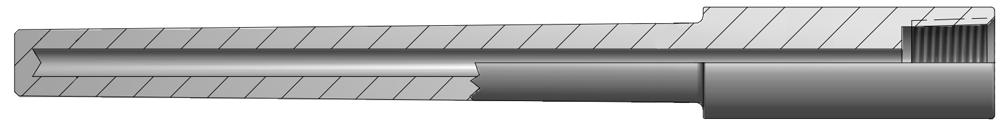

Straight-Shank Socket-Weld Thermowell

Brand: Pyromation
Straight-Shank, Socket-Weld Thermowells are available in a variety of materials, process connection sizes, lengths, and optional lagging extensions. Thermowell specifications should be determined based on process conditions which include strength, temperature, pressure and corrosion-resistance requirements.

The Straight-Shank Socket-Weld is designed to be used with a 3000 class weld-o-let which allows the thermowell to be welded permanently into the process. They are designed with a standard 0.260" or 0.385" bore diameter to accommodate sensing elements with either a 0.252" or 0.377" maximum diameter, respectively.

These wells are available as separate components or as part of complete sensor assemblies.
show more
Straight-Shank, Socket-Weld Thermowells are available in a variety of materials, process connection sizes, lengths, and optional lagging extensions. Thermowell specifications should be determined based on process conditions which include strength, temperature, pressure and corrosion-resistance requirements.

The Straight-Shank Socket-Weld is designed to be used with a 3000 class weld-o-let which allows the thermowell to be welded permanently into the process. They are designed with a standard 0.260" or 0.385" bore diameter to accommodate sensing elements with either a 0.252" or 0.377" maximum diameter, respectively.

These wells are available as separate components or as part of complete sensor assemblies.

Specifications

Brand

Bore Size

  • 0.260", 0.385"

Pipe Size

  • 3/4" NPS
  • 1" NPS
  • 1-1/2" NPS
  • 1-1/4" NPS

Material of Construction

  • Well cap & chain: 316 stainless steel, brass
