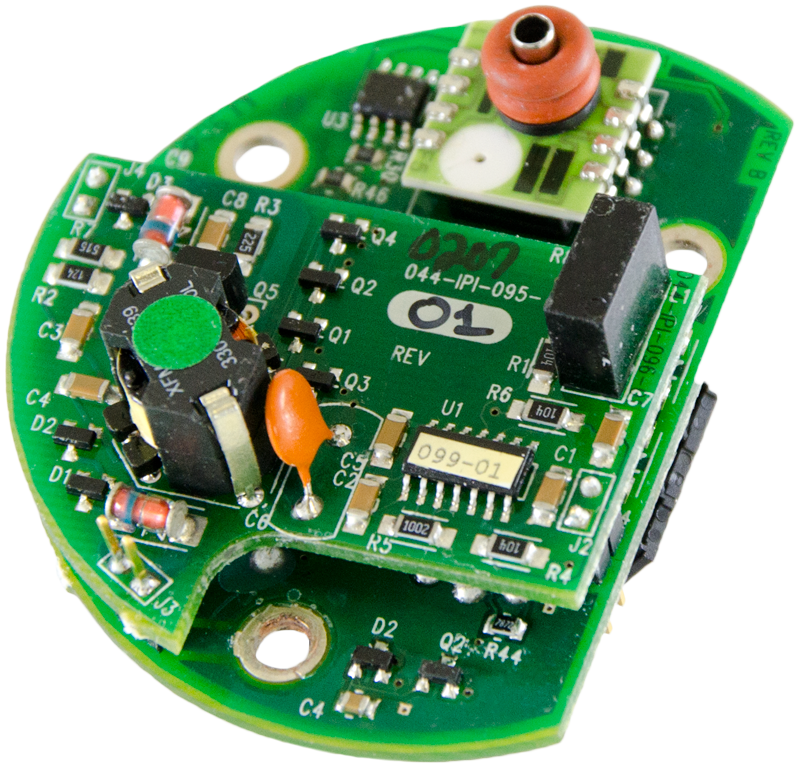

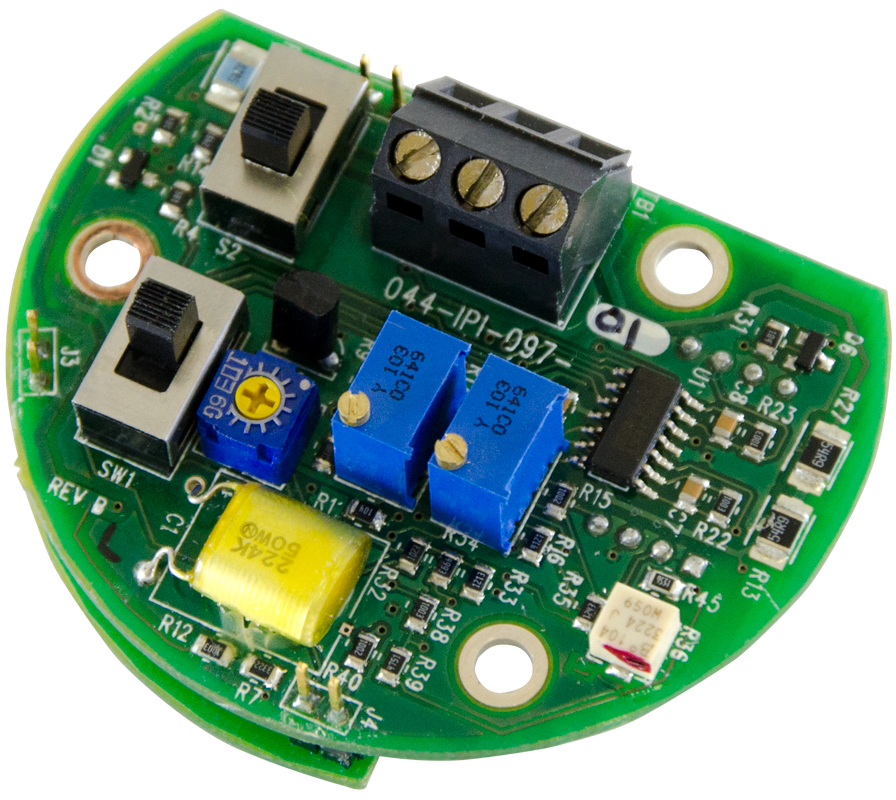

Circuit Board Assembly for TX7850 I/P Transducer

Brand: Fairchild Industrial Products
The Model TXI7850 Transducer is an electronically controlled pressure sensitive device that converts a current signal to a pneumatic output.  This device is composed of the Primary Converting Section and the Relay Section.  The Piezoelectric ceramic disk in the Primary Section functions as a flapper.  The flapper and the nozzle work together to  control the signal pressure in the Relay Section.  The signal pressure acts on a diaphragm assembly that controls the pressure in the output chamber.
show more
The Model TXI7850 Transducer is an electronically controlled pressure sensitive device that converts a current signal to a pneumatic output.  This device is composed of the Primary Converting Section and the Relay Section.  The Piezoelectric ceramic disk in the Primary Section functions as a flapper.  The flapper and the nozzle work together to  control the signal pressure in the Relay Section.  The signal pressure acts on a diaphragm assembly that controls the pressure in the output chamber.
044-IPI-099-01
FAIRCHILD Circuit Board Assembly, TX7850 I/P Transducer, Standard Range
8 - 12 days
Non-Cancellable / Non-Refundable

Specifications

Temperature Range

  • -40°F to + 160°F, (-40°C to + 71.2°C)
  • -40­°F to + 180°F, (-40°C to + 82.2°C)

Accuracy (ISA S51.1)

  • 0.25% Full Scale Guaranteed
  • 0.15% Full Scale Typical

Temperature Effect

  • [+0.5% +0.04% / oF Temperature Change] of Span typical
