Model 4800A High Flow Pneumatic Volume Booster

Brand: Fairchild Industrial Products

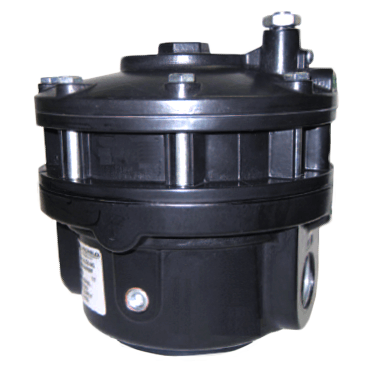

Rotork Fairchild’s M4800A is a High Flow Pneumatic Volume Booster specifically designed for Valve and valve actuation systems. With its Cv of 9 in both forward and exhaust modes, this pilot operated booster provides fast response and accurate control for valve actuation.

In addition, the M4800A has an integral bypass valve, for optimum tuning and adjustment, even while in operation, to obtain maximum performance on opening and closing times with minimal overshoot or oscillation.

In its pilot operated regulator design, the M4800A handles up 250 psig, [17.0 BAR], (1,700 kPa) supply pressure and delivers an output pressure up to 150 psig [10.0 BAR] (1,000 kPa). The Fairchild Model 4800A Booster provides a flow capacity of 500 SCFM (850 m3/HR), which equates to a Cv factor of approximately 9 in both forward and exhaust modes.
Features
  • Cv = 9; Flow capacity of 500 SCFM (850 m3/Hr)
  • Ratio Accuracy of 0.5%
  • Fixed deadband between the operation of the supply valve and exhaust valve
  • Integral bypass needle valve
  • Soft seat supply and exhaust valve
  • Pressure balanced supply valve
  • Damped diaphragm control chamber
  • Two accessory ports connected to the outlet chamber
  • Tapped exhaust port.
show more
Images are representations only.
Rotork Fairchild’s M4800A is a High Flow Pneumatic Volume Booster specifically designed for Valve and valve actuation systems. With its Cv of 9 in both forward and exhaust modes, this pilot operated booster provides fast response and accurate control for valve actuation.

In addition, the M4800A has an integral bypass valve, for optimum tuning and adjustment, even while in operation, to obtain maximum performance on opening and closing times with minimal overshoot or oscillation.

In its pilot operated regulator design, the M4800A handles up 250 psig, [17.0 BAR], (1,700 kPa) supply pressure and delivers an output pressure up to 150 psig [10.0 BAR] (1,000 kPa). The Fairchild Model 4800A Booster provides a flow capacity of 500 SCFM (850 m3/HR), which equates to a Cv factor of approximately 9 in both forward and exhaust modes.
Features
  • Cv = 9; Flow capacity of 500 SCFM (850 m3/Hr)
  • Ratio Accuracy of 0.5%
  • Fixed deadband between the operation of the supply valve and exhaust valve
  • Integral bypass needle valve
  • Soft seat supply and exhaust valve
  • Pressure balanced supply valve
  • Damped diaphragm control chamber
  • Two accessory ports connected to the outlet chamber
  • Tapped exhaust port.
4856ANNNF
FAIRCHILD Model 4800A Pneumatic Volume Booster, 1:1 Ratio, Cv=5, 3/4" FNPT, Nitrile Elastomer, No Feedback Port, Zinc Plated Steel Trim
Out of Stock
4856ANNNS
FAIRCHILD Model 4800A Pneumatic Volume Booster, 1:1 Ratio, Cv=5, 3/4" FNPT, Nitrile Elastomer, No Feedback Port, Stainless Steel Trim
Out of Stock
4896ANJNF
FAIRCHILD Model 4800A Pneumatic Volume Booster, 1:1 Ratio, Cv=7, 3/4" FNPT, Fluorocarbon (Viton) Elastomer, No Feedback Port, Zinc Plated Steel Trim
Out of Stock

Model 4800A

Flow Capacity

Port Size

Port Thread

Elastomers

Feedback Option

Trim

Specifications

Ambient Temperature Range

  • -40° to 93.3° C (-40° to 200° F)

Approvals & Certifications

  • CRN

BSP Connection

  • 1" BSPP Female
  • 1" BSPT Female
  • 3/4" BSPP Female
  • 3/4" BSPT Female

Diaphragm Material

  • Nitrile on Dacron

Elastomers

  • FluoroCarbon
  • Nitrile

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres

Exhaust Capacity - Relieving Units Only

  • 100 scfm (170 m³/hour)

Flow Capacity

  • 500 scfm (850 m³/hour) at psig: 100 (kPa: 700, bar: 7)

Flow Rate

  • 5.0 Cv
  • 9.0 Cv

Mounting

  • Bracket

NPT Connection

  • 1" NPT Female
  • 3/4" NPT Female

Ratio

  • 0.042361111111

Ratio Accuracy

  • 0.5% of psi: 100 (kPa: 700, bar: 7) Output Span

Signal or Output Pressure - Maximum

  • psig: 150 (kPa: 1,000, bar: 10)

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • psig: 250

Supply Pressure Effect

  • psi: 0.10 (kPa: 0.7, bar: 00.7) for psi: 100 (kPa: 700, bar: 7) Change in Supply Pressure

Trim Material

  • Stainless Steel
  • Zinc-Plated Steel
