Model 716.05 Differential Pressure Gauge

Brand: WIKA Instruments Ltd.

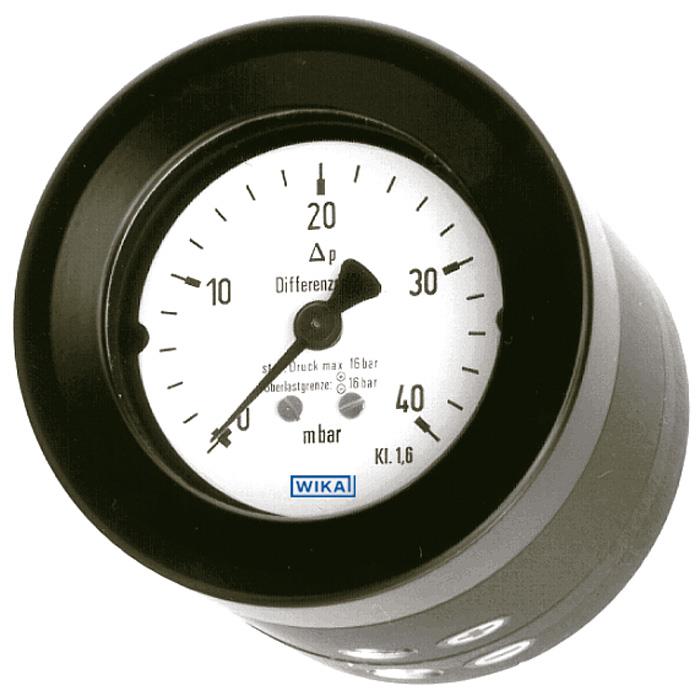

The compact differential pressure gauge, model 716.05 with a nominal size of 80 mm, has been specifically designed for measuring points at which differential pressure measurements with low differential pressures take place.

In addition, an overload safety of up to 16 bar is guaranteed, on either side.
Features
  • Differential pressure measuring ranges from 0 … 16 mbar.
  • High working pressure (static pressure) and high overpressure safety up to 16 bar.
  • Numerous options for installation, connection form and connection location.
show more
Images are representations only.
The compact differential pressure gauge, model 716.05 with a nominal size of 80 mm, has been specifically designed for measuring points at which differential pressure measurements with low differential pressures take place.

In addition, an overload safety of up to 16 bar is guaranteed, on either side.
Features
  • Differential pressure measuring ranges from 0 … 16 mbar.
  • High working pressure (static pressure) and high overpressure safety up to 16 bar.
  • Numerous options for installation, connection form and connection location.

Specifications

Version

  • Small compact design

Nominal Size in mm

  • 80

Accuracy Class

  • 2.5: Scale ranges from 0 ... 40 mbar to 0 ... 600 mbar
  • 4.0: Scale ranges 0 ... 16 mbar and 0 ... 25 mbar

Scale Ranges

  • 0 to 16 mbar to 0 to 600 mbar

Pressure Limitation

  • Fluctuating: Full scale value
  • Steady: Full scale value

Overload Safety

  • Either side max. 16 bar

Max. Working Pressure (Static Pressure)

  • 16 bar

Permissible Temperature

  • Medium: +70° C maximum
  • Ambient: -15 ... +60° C

Temperature effect

  • When the temperature of the measuring system deviates from the reference temperature (+20° C): max. ±0.5 %/10 K of true scale value

Ingress Protection

  • lP66 per IEC/EN 60529

Process Connections (wetted)

  • Lower mount or back mount, 2 x G ⅛ female

Case (Wetted)

  • Aluminium, black, pressure-tight

Ring

  • Aluminium, black

Pressure Element (Wetted)

  • Stainless steel

Separating diaphragm of measuring Chamber (wetted)

  • Diaphragm, silicone rubber

Sealings (wetted)

  • NBR

Movement (wetted)

  • Copper alloy, wear parts argentan

Dial (Wetted)

  • Aluminium, white, black lettering

Pointer (wetted)

  • Aluminium, black

Window (wetted)

  • Glass

Weight

  • 0.64 kg

Installation

  • According to affixed symbols, ⊕ high pressure,
  • ⊖ low pressure

Mounting

  • Rigid Measuriing lines

Typical Applications

  • Differential pressure measurement at measuring points with very low differential pressures and very high onesided or reciprocal overload
  • For transparent, clean, non-sticky, non-aggressive media
  • Control of ventilator and blast pressures
  • Filter monitoring in ventilation and heating systems
  • Level measurement in closed vessels
