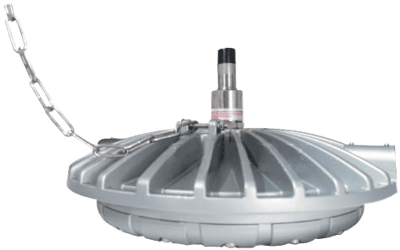

L1512D, Class 1, Division 1, Explosion Proof High Bay Light (COB) 140W, 160W, 180W, 200W, 220W, 240W

Brand: Top Hi-Tech Inc.
Request Information
Favorite
  • cULus Explosion Proof Approved for Canada & USA
  • L1512D: (COB) 140W, 160W, 80W, 200W, 220W, 240W
    • Class I, Division 1, Group B, C, D.
    • Class II, Division 1, Group E, F, G
    • Class III
    • IP67 / NEMA 6
  • Ambient Temperature:
    • •CID1: -25°C ~ +40°C, T5 / -25°C ~ +55°C, T4A
    • •CIID1: +40°C, T4A / +55°C, T4
Features
  • "AC IN LED Technology"
    • No Driver (Ballast), to fail, No Efficiency Loss
    • Long Lifespan ( 60,000 hrs )
    • LED Lighting provides 2 million times power cycle
    • High Efficiency, Generates Less Heat
    • Smaller Volume and Light weight
  • High Corrosion Resistance
  • Easy installation and maintenance
  • Applicable to High Temperature Environment
  • Light Color: Cool White / Warm White
  • Retrofit to conventional Explosion-Proof Light
  • High Bay or Submersible for Wet Wells
show more
  • cULus Explosion Proof Approved for Canada & USA
  • L1512D: (COB) 140W, 160W, 80W, 200W, 220W, 240W
    • Class I, Division 1, Group B, C, D.
    • Class II, Division 1, Group E, F, G
    • Class III
    • IP67 / NEMA 6
  • Ambient Temperature:
    • •CID1: -25°C ~ +40°C, T5 / -25°C ~ +55°C, T4A
    • •CIID1: +40°C, T4A / +55°C, T4
Features
  • "AC IN LED Technology"
    • No Driver (Ballast), to fail, No Efficiency Loss
    • Long Lifespan ( 60,000 hrs )
    • LED Lighting provides 2 million times power cycle
    • High Efficiency, Generates Less Heat
    • Smaller Volume and Light weight
  • High Corrosion Resistance
  • Easy installation and maintenance
  • Applicable to High Temperature Environment
  • Light Color: Cool White / Warm White
  • Retrofit to conventional Explosion-Proof Light
  • High Bay or Submersible for Wet Wells
Close

Displaying prices & availability for United States in USD. Change location or currency

L1512D (COB)
Top Hi-Tech Explosion-proof High Bay Light, L1512D (COB) View More
  • cULus Explosion Proof Approved for Canada & USA
  • L1512D: (COB) 140W, 160W, 80W, 200W, 220W, 240W
    • Class I, Division 1, Group B, C, D.
    • Class II, Division 1, Group E, F, G
    • Class III
    • IP67 / NEMA 6
  • Ambient Temperature:
    • •CID1: -25°C ~ +40°C, T5 / -25°C ~ +55°C, T4A
    • •CIID1: +40°C, T4A / +55°C, T4
Out of Stock
Close

Specifications

Brand

Watts (±10%)

  • 140 W / 160 W / 180 W / 200 W / 220 W / 240 W

Lumen (± 10%)

  • 3000K: (140 W: 11911 lm), (160 W: 13750 lm), (180 W: 15504 lm), (200 W: 17050 lm), (220 W: 18732 lm), (240 W: 20435 lm)
  • 5000K: (140 W: 12339 lm), (160 W: 14003 lm), (180 W: 15811 lm), (200 W: 17505 lm), (220 W: 19300 lm), (240 W: 21006 lm)

Color of LED Light

  • 3000K (Warm White)
  • 5000K (Cool White)

Rated Voltage (±10%)

  • COB: 120 V / 277 V / 347 V / 480 V

Frequency

  • 50/60 Hz

Amps

  • 140 W: (120 V: 1.17A), (277 V: 0.51A), (347 V: 0.40A), (480 V: 0.29A)
  • 160 W: (120 V: 1.33A), (277 V: 0.58A), (347 V: 0.46A), (480 V: 0.33A)
  • 180 W: (120 V, 1.50 A), (277 V: 0.65A), (347 V: 0.52A), (480 V: 0.38A)
  • 200 W: (120 V, 1.67A), (277 V: 0.72A), (347 V: 0.58A), (480 V: 0.42A)
  • 220 W: (120 V: 1.83A), (277 V: 0.79A), (347 V: 0.63A), (480 V: 0.46A)
  • 240 W: (120 V: 2.00A), (277 V: 0.87A), (347 V: 0.69A), (480 V: 0.50A)

Power Factor

  • cos ≥ 0.87 (480 V)
  • cos ≥ 0.9

Ambient Temperature

  • Class II, Div. 1: 40° C,T4A / 55° C, T4
  • Class I, Div. 1: -25° C ~ +40° C, T5 / -25° C ~ +55° C, T4A

Degree of Protection

  • IP67 / NEMA 6

Material

  • Enclosure: Aluminum Alloy
  • Glass: Tempered Glass

Entrance Thread

  • 1 x NPT 3/4”

Electrical Cable

  • 3 Feet (1 Meter) of c(UL), SOOW Cable, 3 Conductor #18 AWG, FT2

LED Serive Life

  • 60,000 Hrs

CRI

  • Warm White ≥ 80
  • Cool White ≥ 70

Beam Angle

  • X-110° / Y-110°
Close

Typical Applications

  • Waste Water Treatment Plants - Well Stations
  • Compressor Stations
  • Petrochemical Plants
  • Offshore Platforms
  • Storage Facilities
  • Paper Mills
  • Shipyards
  • Loading Docks
