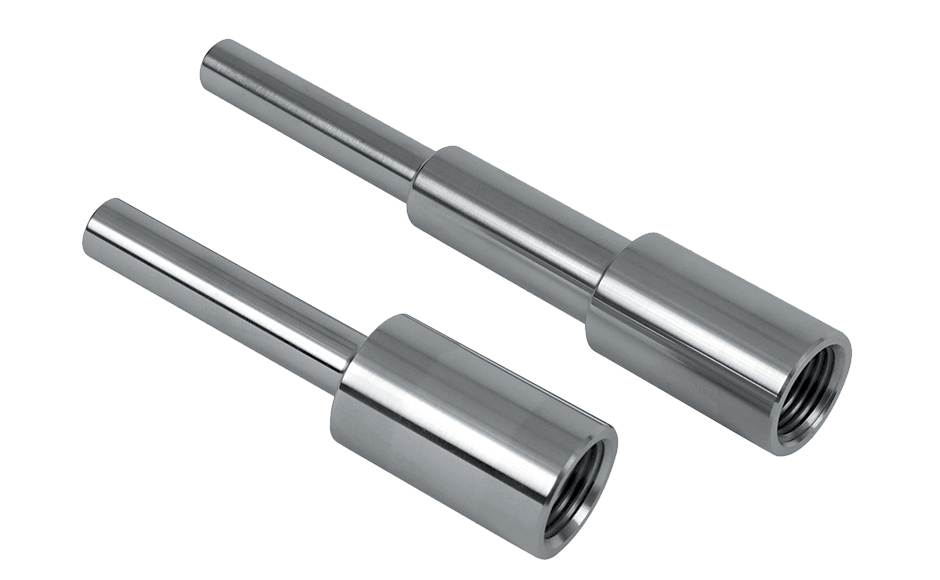

TW25 Socket-Weld Straight Lagged Thermowell

Brand: Mac-Weld Machining Ltd.
Mac-Weld's socket-weld thermowells are available in a wide variety of process pipe sizes and configurations. Mac-Weld's socket-weld thermowells are designed and manufactured 100% in house, and are made to accept standard and custom made thermometers, thermocouples, bulbs and RTD's.
show more
Images are representations only.
Mac-Weld's socket-weld thermowells are available in a wide variety of process pipe sizes and configurations. Mac-Weld's socket-weld thermowells are designed and manufactured 100% in house, and are made to accept standard and custom made thermometers, thermocouples, bulbs and RTD's.

TW25

Bore Size

Process Connection

Stem Material

Stem Length

Plug and Chain Material

Thread

Surface Finish

Sheath Material

Coating

Tests & Certificates

Dye Penetration Testing

Material Testing

Power Supply

Specifications

Approvals & Certifications

  • Dye Penetration Testing
  • Hydrostatic Internal Testing
  • Material Test Report
  • Radiograph

Bore Size

  • 0.260" (6.6 mm)
  • 0.385" (9.78 mm)

Insertion 'U' Length

  • 10" (25.4 cm)
  • 13" (33 cm)
  • 16" (40.6 cm)
  • 22" (56 cm)
  • 34" (86 cm)
  • 4" (10.1 cm)
  • 40" (101.6 cm)
  • 5.5" (14 cm)
  • 7" (17.8 cm)

Materials of Construction

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 310 Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • 347 Stainless Steel
  • Alloy 20 or Incoloy®
  • Aluminum 6061
  • Brass
  • Carbon Steel
  • Carbon Steel A105
  • Chrome-M Moly F-22
  • Chrome-Moly F-11
  • Hastelloy® B
  • Hastelloy® C-276
  • Incoloy® 800
  • Inconel® 600
  • Kynar
  • Kynar Coating
  • Monel® 400
  • Naval Brass
  • Nickel 200
  • PVC
  • Special
  • Stellite over Spray
  • Teflon
  • Teflon Coating
  • Titanium

NACE & NIST

  • NACE MR-1090

NPT Connection

  • 1" NPT Male
  • 3/4" NPT Male

Options

  • 125/250 RMS Flange Finish
  • 4-12 RMS High Polish Stem Finish
  • Full Penetration Weld
  • Stress Relieving
  • Tantalum Sheath (Straight Stem Only)
  • Velocity Calculation (Tapered Wells Only)

Plug Material

  • 304 Stainless Steel
  • Brass

Special Cleaning & Packaging

  • Cleaning O2 or Chlorine

Stem Length

  • 12" (30.5 cm)
  • 15" (38.1 cm)
  • 18" (45.7 cm)
  • 2.5" (6.35 cm)
  • 24" (61 cm)
  • 36" (91.4 cm)
  • 4" (10.2 cm)
  • 42" (106.7 cm)
  • 6" (15.2 cm)
  • 7.5" (19.1 cm)
  • 9" (22.9 cm)
