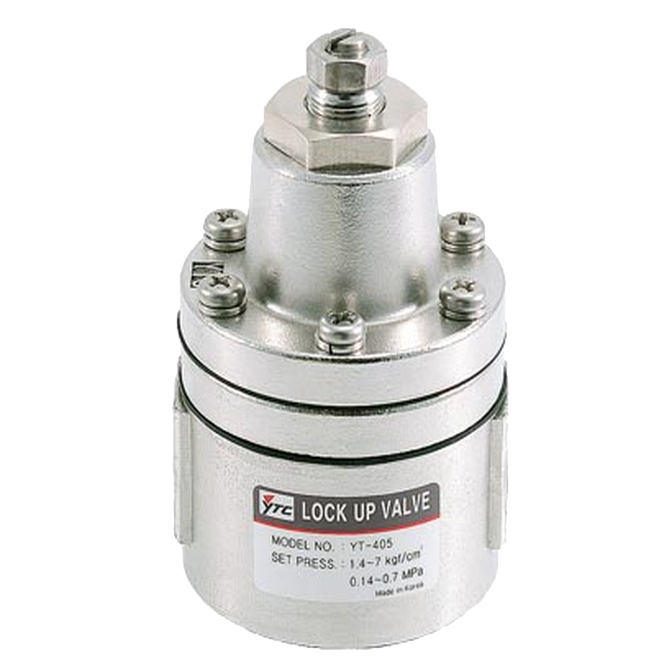

YT-405 Lock Up Valve

Brand: Rotork YTC
Request Information
Favorite
The YT-405 Lock Up Valve senses the main supply pressure and shuts down the air flow when the pressure is lower than setting level to avoid system shutdown or damages to pipelines.
Features
  • Due to its compact size and light weight, lock up valve can be installed without a bracket.
  • It responds to less than 0.1kgf/㎠ pressure change.
  • Epoxy power coating resists against the corrosion.
  • 100 mesh screen filters small dust entering into the unit.
show more
The YT-405 Lock Up Valve senses the main supply pressure and shuts down the air flow when the pressure is lower than setting level to avoid system shutdown or damages to pipelines.
Features
  • Due to its compact size and light weight, lock up valve can be installed without a bracket.
  • It responds to less than 0.1kgf/㎠ pressure change.
  • Epoxy power coating resists against the corrosion.
  • 100 mesh screen filters small dust entering into the unit.
Close
Close

Specifications

Brand

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)

Approvals & Certifications

  • CE

Enclosure, Body Material

  • 316 Stainless Steel

Flow Capacity

  • 0.9 Cv

Lock-Up Pressure

  • psig: 101.5 (bar: 7, MPa: 0.7)

NPT Connection

  • 1/4” NPT Female

Pressure Range

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • psig: 20 to 100

Supply Pressure - Maximum

  • bar: 10
  • MPa: 1
  • psi: 145
