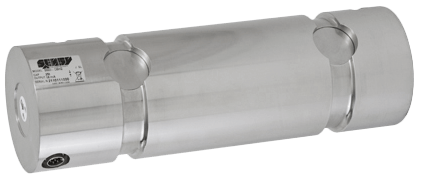

5000 Custom Load Pin

Brand: Sensy S.A.
Request Information
Favorite
Custom made load pin designed to be installed at the same place of a common axle without any big changes of the existing mechanical environment.
Features
  • CE certified for hoisting applications and lifts
  • Sturdy design
  • Stainless steel
  • Protection IP 65 (IP 68 option)
  • Easy to install
  • Complete range of "CE" certified electronics, load limiters and displays available
  • Available options (non exhaustive list):
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Protection IP68
    • High service temperature (up to 180° C)
    • Amplified output (V or mA)
    • Certified redundant version for SIL3 applications
show more
Custom made load pin designed to be installed at the same place of a common axle without any big changes of the existing mechanical environment.
Features
  • CE certified for hoisting applications and lifts
  • Sturdy design
  • Stainless steel
  • Protection IP 65 (IP 68 option)
  • Easy to install
  • Complete range of "CE" certified electronics, load limiters and displays available
  • Available options (non exhaustive list):
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Protection IP68
    • High service temperature (up to 180° C)
    • Amplified output (V or mA)
    • Certified redundant version for SIL3 applications
Close

Displaying prices & availability for Virginia, United States in USD. Change location or currency

62 models matching criteria
5300-20T(30T)-SL (No Cable)
SENSY Load Pin, Capacity 20t, Set for 30t, 150% Breaking Load,16mA Output Signal, IP65, SL No Cable View More
  • Load Cell Capacity: 20 t *Set for 30t
  • Construction: Stainless Steel
  • Breaking Load: 150%
  • Maximum Operating Load: 300%
  • Accuracy Class: SL
  • No Cable
  • No Female Connector
  • Output Signal (Sensitivity): 16mA
  • Protection: IP65
  • Included Options:
    • EX-C6-CSA
    • 4-20mA, 2 wires
    • CSA CA/US Class 1 Div1 Certified
    • B-AMPH-PT02E-10-6P
      • Amphenol PT02E-10-6P (025) - No Cable


24 In Stock
Non-Cancellable / Non-Refundable
$1,324.41USD
$19.12 Shipping
5000-HOIS002148
SENSY Load Pin, Capacity 8.75klb, 500% Breaking Load, Diam=1.125", IP65, 6m Cable View More
  • Capacity: 8.75 klb
  • Dimensions:
    • Diameter: 1.125"
    • Dimension L: 3.6875"
    • Dimension I: 1.6875
    • Dimension "A": 1.00"
  • Breaking Load: 500%
  • Maximum Operating Load: 200%
  • Cable Length: 6m
  • Accuracy Class: SL
  • Sensitivity: 16mA
  • Protection: IP65
Out of Stock
5000-HOIS003931
SENSY Load Pin, Capacity 320 kN, 500% Breaking Load, 16 mA, IP65, 6m Cable View More
Load pin 320kN

Capacity 320kN

Ø 76.2mm (g6)

Dimension L 146.05 mm

Dimension I 95.25 mm

Dimension "A" 24.4 mm

Breaking Load 500 %

Maximum operating load 200 %

Cable length 6 m

Accuracy class SL

CE Hoisting Use Y

Fixing plate Y

Protection IP65

Output signal ( sensitivity) 16 mA

Included options :

B-M12 STAINLESS 1,00

Binder stainless steel connector M12

D-DP 1CABLE 1,00

Dual bridges, 1 cable

K-CABLE PET 4X0.25 1,00

Polyéthylen cable IGUS, 4cond.

S-SENSIB. SPECIALE 1,00

4-20mA for -150Kn to +320Kn

EX-C6-CSA 1,00

4-20mA output, 2 wires

CSA CA/US Class 1 Div1 Certified
Out of Stock
5000-FORC000940
SENSY Load Pin 50,000 lb, 300% Breaking Load, 4-20 mA, 2-Wires, CSA, IP65 View More
  • Load pin Capacity 50,000lb
  • Ø 2h8"
  • Dimension L 4 "
  • Dimension I 2"
  • Dimension "A" 1"
  • Breaking Load 300%
  • Maximum operating load 150%
  • Accuracy class SL
  • CE Hoisting Use N
  • Protection IP65
  • Output signal (sensitivity) 8 mA
  • Included Options:
    • B-AMPH-PT02E-10-6P
      • Amphenol PT02E-10-6P - No Cable

    • EX-C6-CSA/IECEX
      • 4-20mA output, Exi, 2 wires
      • CSA CA/US Class 1 Div1 Certified
      • IECEx/ATEX certified by SIRA

    • W-BT-40 CP-10
      • TR -40C COMP -10C


9 - 10 weeks
5000M-1"3/4-12T-WI
SENSY Capteur 5000M-1"3/4 12t Wireless, 0.3 Cable, Max Operating Load 200%, IP65, SL View More
  • Capteur Load Pin
  • Capacity: 12t
  • Breaking Load: 500%
  • Maximum Operating Load: 200%
  • Accuracy Class: SL
  • Service Temperature Range: -25°C to +70°C
  • Sensitivity: ±1 mV/V
  • Cable Length: ±0.3m
  • CE Hoisting Use: Y
  • Lubricating Hole: N
  • Stainless Steel Construction
  • Protection: IP65
8 - 10 weeks
5000M-1"3/8-6.3T-WI
SENSY Capteur 5000M-1"3/8 6.3t Wireless, 0.3 Cable, Max Operating Load 150%, IP65, SL View More
  • Capteur Load Pin
  • Capacity: 11t
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: SL
  • Service Temperature Range: -25°C to +70°C
  • Sensitivity: ±1.5 mV/V
  • Cable Length: ±0.3m
  • Lubricating Hole: N
  • Stainless Steel Construction
  • Protection: IP65
  • Included Option:
    • S-CAPACITE SPECIALE - Capacity 11t

8 - 10 weeks
5000MFORC000023
SENSY Load Measuring Shackle, 30t Capa, 300% Breaking Load,IP67M, SL, IH10-6P Connector (no cable) View More
  • Load Shackle Capacity 30t - 2"
  • Accuracy class SL
  • Output signal (sensitivity) RS485
  • Maximum operating load 150%
  • Breaking Load 300%
  • Cable Length: 6m
  • Protection IP67
  • CE Hoisting Use: Y
  • Lubricating Hole: N
  • Included Options:
    • B-OTHER NO CABLE

      Connector IH10-6P NO cable
    • F-IP67M

      Protection : IP67 Marine
    • U-RS48R IND/MODBUS

      RS 485 Modbus, 16 bits resolution

10 - 11 weeks
Non-Cancellable / Non-Refundable
5100-2MN-0.1-EP
SENSY Tension & Compression Load Cell, Capacity 2MN, 300% Breaking Load, 8mA Output, 6m Cable, IP67 View More
  • Load Cell Capacity: 2MN
  • Construction: Stainless Steel
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: 0.1%
  • Cable Length: 6m
  • Output Signal (Sensitivity): 8mA
  • Protection: IP67 Standard
  • Included Options:
    • F-IP67
      • Protection: IP67

    • J-4/20 3F-BIND
      • Embedded amplifier 4-20mA, 3 wires

    • W-BT-40 CP-40
      • TR -40°C COMP. -40°C


8 - 10 weeks
Non-Cancellable / Non-Refundable
5510-2T-A3
SENSY Shear Beam Load Cell, Capacity 2.5t, 250% Breaking Load, IP67, A3 Accuracy Class View More
  • Design: 5510-2T ATEX Specialized Desander
  • Capacity: 2.5t
  • Accuracy Class: A3
  • Protection:
    • IP 67

  • Maximum Operating Load:
    • 120%

  • Output Signal (Sensitivity):
    • 2.5 mV/V

  • Breaking Load: 250%
  • Cable Length: 8 m
  • Included Options:
    • EX-I T4 GD
      • ​ATEX Certificate, Eex(i), T4 gas/dust
      • II 1GD Ex ia IIC T4 Ga Ex ia IIIC T80°C Da

    • S-Capacity Special - Capacity 2.5t

6 - 8 weeks
5930-5000N-1% 1.5MV/V
SENSY Compression Load Cell, Capacity 5000N, 300% Breaking Load, 1.5m Cable, 1.5mV/V, -20° to +60°C View More
  • Capacity: 5000N
  • Breaking Load: 300%
  • Maximum Operating Load: 120%
  • Accuracy Class: 1%
  • Cable Length: 3 m
  • Protection: IP66
  • Output Signal (sensitivity): 1.5mV/V
  • Temperature:
    • Compensated: -20° to +60°C

  • Included Options:
    • EX-I T4 GD
      • ATEX Certificate, Eex(i), T4 gas/dust, II 1 GD Ex ia IIC T4 Ga Ex ia IIIC T80°C Da


6 - 7 weeks
Show More Models (51)
Close

Specifications

Brand

Applications

  • Force Measurement
  • Hoisting
  • Industrial Weighing
  • Load Limitation

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
  • CE
  • CSA
  • IECEx
  • SIL 3

Cable Length

  • 19.69 feet (6 metres)

Capacity

  • 0.5 to 3000 T

Electrical Connectors

  • Female/Male DIN 45322

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP65
  • IP67
  • IP68

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Range

Insulation Resistance

  • > 5,000 megaohms at 50 V

Load

  • > 300 % to > 1000 % of Full Scale - Breaking
  • 50 % to 100 % of Full Scale - Pernissible Dynamic Loading

Load Limit

  • 150 % to 300 % of Full Scale

Operating Temperature

  • 180° C (356° F) - High Service Temperature

Repeatability

  • Error: < ± 0.25 % of Full Scale

Resistance

  • 352 ± 2 ohms - Input/Output

Sensitivity

  • 0.5 to 1.5 mV/V

Service Temperature

  • -30° to 70° C (-22° to 158° F)

Static Lateral Force

  • 100 % to 200 % of Full Scale

Storage Temperature

  • -50° to 85° C (-58° to 185° F)

Temperature Coefficient

  • < ± 0.2 % of Full Scale/10° C (18° F)

Temperature Range

  • -10° to 45° C (14° to 113° F) - Nominal

Zero Balance

  • ± 0.02 mV/V
