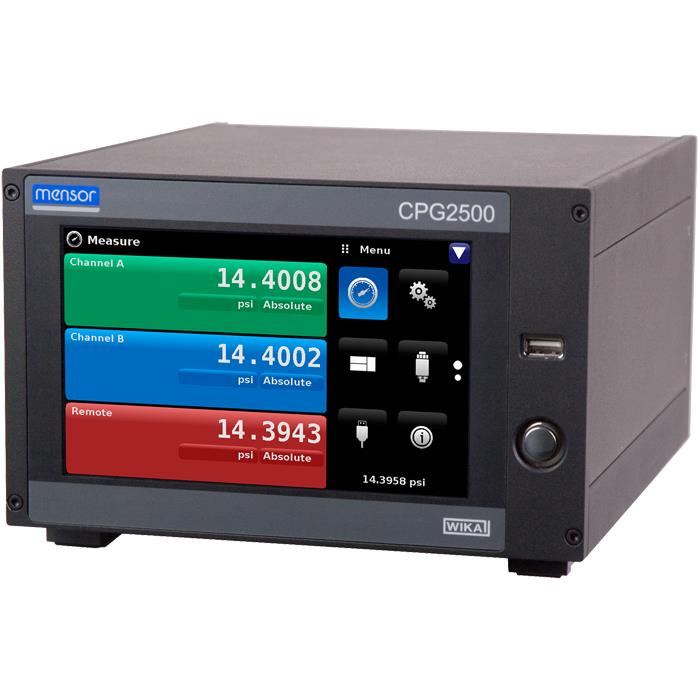

Digital Pressure Indicator - CPG2500

Brand: WIKA Alexander Wiegand SE & Co. KG
The model CPG2500 digital pressure indicator is used in calibration laboratories and manufacturing facilities as a source for precise pressure measurement.

It is used to verify the accuracy of field pressure indicators/transmitters or as a laboratory standard and wherever there is a need for a high level of pressure accuracy in manufacturing, testing and calibration of pressure instruments or gauges
Features
  • Pressure ranges from 0 ... 2.890 bar (0 ... 42,000 psi).
  • Removable/interchangeable pressure sensors.
  • Accuracy down to 0.01 % IS (IntelliScale).
  • External pressure sensor up to 1,600 bar (23,000 psi).
show more
The model CPG2500 digital pressure indicator is used in calibration laboratories and manufacturing facilities as a source for precise pressure measurement.

It is used to verify the accuracy of field pressure indicators/transmitters or as a laboratory standard and wherever there is a need for a high level of pressure accuracy in manufacturing, testing and calibration of pressure instruments or gauges
Features
  • Pressure ranges from 0 ... 2.890 bar (0 ... 42,000 psi).
  • Removable/interchangeable pressure sensors.
  • Accuracy down to 0.01 % IS (IntelliScale).
  • External pressure sensor up to 1,600 bar (23,000 psi).

Specifications

Certifications & Approvals

  • CE
  • EAC
  • GOST
  • Uzstandard
  • UkrSEPRO
  • MTSCHS
  • KazInMetr
  • BelGIM

Power Supply

  • 100-120 Vac or 200-240 Vac 50/60 Hz, 24 VA Max.

Pressure Range

  • 0 to 2,890 bar (0 to 42,000 psi)

Accuracy

  • 0.008 % of IS

Precision

  • 0.004 % Full Scale

External Pressure Range

  • 25 mbar to 1,000 bar (0.36 to 15,015 psi)

Typical Applications

  • Pressure standard for calibration laboratories
  • Transfer standard with external sensor
  • Pressure instrument manufacturing
  • Differential pressure measurement
  • Simultaneous 3-channel pressure monitoring
