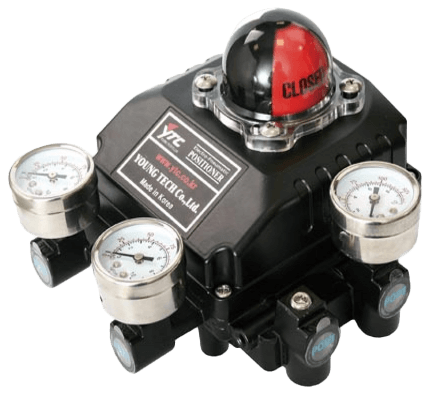

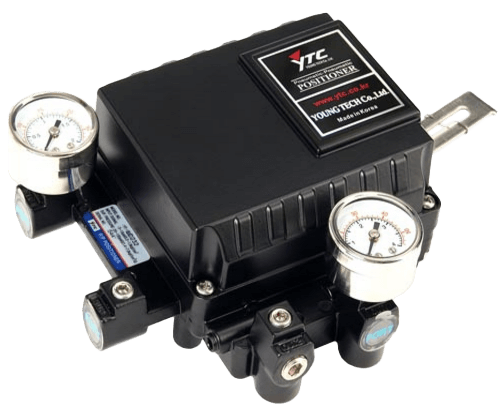

YT-1200 Pneumatic Positioner

Brand: A-T Controls, Inc.
The YT-1200R &YT-1200L are advanced pneumatic valve controllers for single or double acting rotary or linear actuators.

No additional parts are necessary to change between single or double acting actuators or direct or reverse acting.
Features
  • Corrision Resistant Coated Aluminum Diecast Housing Stands Up to Harsh Environments.
  • Pilot Valve Design Reduces Air Consumption by More than 50%
  • Vibration Resistant Design Maintains Superior Performance in Poor Conditions - No Resonance Effects from 5 to 200 Hz
  • Optional Gauges and Orifices
show more
The YT-1200R &YT-1200L are advanced pneumatic valve controllers for single or double acting rotary or linear actuators.

No additional parts are necessary to change between single or double acting actuators or direct or reverse acting.
Features
  • Corrision Resistant Coated Aluminum Diecast Housing Stands Up to Harsh Environments.
  • Pilot Valve Design Reduces Air Consumption by More than 50%
  • Vibration Resistant Design Maintains Superior Performance in Poor Conditions - No Resonance Effects from 5 to 200 Hz
  • Optional Gauges and Orifices
9 models matching criteria
ROTORK YTC YT-1200L Series Pneumatic Positioner, Double-Acting, 10-150mm Stroke, 1/4" NPT, IP66 View More
  • YT-1200: Pneumatic-Pneumatic Positioner
  • L: Linear Motion Type
  • D: Double Acting
  • 1: 10~40MM Lever Type
  • 1: 01 Orifice Type
  • 2: NPT (1/4") Connection Type
  • S: Standard Temperature: -20 deg C to +70 deg C
  • Input Signal: 0.02-0.1MPa (0.2~1 bar)
  • Supply Pressure: 0.14~0.7MPa (1.4~7 bar)
  • Flow Capacity: 80LPM (sup=0.14MPa)
  • Material: Aluminium Diecasting
4 - 6 weeks
$448.83USD
$19.16 Shipping
ROTORK YTC YT-1200L Series Pneumatic Positioner, Single-Acting, 10-150mm Stroke, 1/4" NPT, IP66 View More
  • YT-1200: Pneumatic-Pneumatic Positioner
  • L: Linear Motion Type
  • S: Single Acting
  • 1: 10~40MM Lever Type
  • 1: 01 Orifice Type
  • 2: NPT (1/4") Connection Type
  • S: Standard Temperature: -20 deg C to +70 deg C
  • Input Signal: 0.02-0.1MPa (0.2~1 bar)
  • Supply Pressure: 0.14~0.7MPa (1.4~7 bar)
  • Flow Capacity: 80LPM (sup=0.14MPa)
  • Material: Aluminium Diecasting
4 - 6 weeks
$448.83USD
$19.16 Shipping
ROTORK YTC YT-1200R Series Pneumatic Positioner, Double-Acting, 0-90 deg Stroke, 1/4" NPT, IP66 View More
  • YT-1200: Pneumatic-Pneumatic Positioner
  • R: Rotary Motion Type
  • D: Double Acting
  • 1: M6 x 34L Lever Type
  • 1: Orifice Type: Ø1
  • 2: NPT (1/4") Connection Type
  • S: Standard Temperature: -20 deg C to +70 deg C
  • 0: No Options
  • Input Signal: 0.02-0.1MPa (0.2~1 bar)
  • Supply Pressure: 0.14~0.7MPa (1.4~7 bar)
  • Flow Capacity: 80LPM (sup=0.14MPa)
  • Material: Aluminium Diecasting
4 - 6 weeks
$448.83USD
$19.16 Shipping
ROTORK YTC YT-1200R Series Pneumatic Positioner, Single-Acting, 0-90 deg Stroke, 1/4" NPT, IP66 View More
  • YT-1200: Pneumatic-Pneumatic Positioner
  • R: Rotary Motion Type
  • S: Single Acting
  • 1: M6 x 34L Lever Type
  • 1: Orifice Type: Ø1
  • 2: NPT (1/4") Connection Type
  • S: Standard Temperature: -20 deg C to +70 deg C
  • 0: No Options
  • Input Signal: 0.02-0.1MPa (0.2~1 bar)
  • Supply Pressure: 0.14~0.7MPa (1.4~7 bar)
  • Flow Capacity: 80LPM (sup=0.14MPa)
  • Material: Aluminium Diecasting





YT 1200R: Pneumatic Positioner - Rotary

S: Single Acting

1: M6x34L Lever Type

1: 01 Orifice Type

2: NPT (1/4") Connection

S: Ambient Temperature -20 deg C ~ 70 deg c (-4 deg F ~ 158 deg F)

0: No Options



Input Signal: 0.02-0.1MPa (0.2~1 bar)

Supply Pressure: 0.14~0.7MPa (1.4~7 bar)

Flow Capacity: 80LPM (sup=0.14MPa)

Material: Aluminum Diecasting
4 - 6 weeks
$448.83USD
$19.16 Shipping
ROTORK YTC YT-1200R Series Pneumatic Positioner, Single-Acting, 0-90 deg Stroke, 1/4" NPT, IP66 View More
  • YT-1200: Pneumatic-Pneumatic Positioner
  • R: Rotary Motion Type
  • S: Single Acting
  • 1: M6 x 34L Lever Type
  • 3: Orifice Type: None
  • 2: NPT (1/4") Connection Type
  • S: Standard Temperature: -20 deg C to +70 deg C
  • 0: No Options
  • Input Signal: 0.02-0.1MPa (0.2~1 bar)
  • Supply Pressure: 0.14~0.7MPa (1.4~7 bar)
  • Flow Capacity: 80LPM (sup=0.14MPa)
  • Material: Aluminium Diecasting
4 - 6 weeks
$448.83USD
$19.16 Shipping
ROTORK YTC YT-1200L Series Pneumatic Positioner, Single-Acting, 10-150mm Stroke, 1/4"NPT,LowTemp View More
  • YT-1200: Pneumatic-Pneumatic Positioner
  • L: Linear Motion Type
  • S: Single Acting
  • 1: 10~40MM Lever Type
  • 1: 01 Orifice Type
  • 2: NPT (1/4") Connection Type
  • L: Low Temperature: -40 deg C to +70 deg C
  • Input Signal: 0.02-0.1MPa (0.2~1 bar)
  • Supply Pressure: 0.14~0.7MPa (1.4~7 bar)
  • Flow Capacity: 80LPM (sup=0.14MPa)
  • Material: Aluminium Diecasting
4 - 6 weeks
$566.75USD
$19.16 Shipping
ROTORK YTC YT-1200R Series Pneumatic Positioner, Double-Acting, 0-90 deg Stroke, 1/4"NPT,LowTemp View More
  • YT-1200: Pneumatic-Pneumatic Positioner
  • R: Rotary Motion Type
  • D: Double Acting
  • 1: M6 x 34L Lever Type
  • 1: Orifice Type: Ø1
  • 2: NPT (1/4") Connection Type
  • L: Low Temperature: -40 deg C to +70 deg C
  • 0: No Options
  • Input Signal: 0.02-0.1MPa (0.2~1 bar)
  • Supply Pressure: 0.14~0.7MPa (1.4~7 bar)
  • Flow Capacity: 80LPM (sup=0.14MPa)
  • Material: Aluminium Diecasting
4 - 6 weeks
$566.75USD
$19.16 Shipping
ROTORK YTC YT-1200R Series Pneumatic Positioner, Single-Acting, 0-90 deg Stroke, 1/4"NPT,LowTemp View More
  • YT-1200: Pneumatic-Pneumatic Positioner
  • R: Rotary Motion Type
  • S: Single Acting
  • 1: M6 x 34L Lever Type
  • 1: Orifice Type: Ø1
  • 2: NPT (1/4") Connection Type
  • L: Low Temperature: -40 deg C to +70 deg C
  • 0: No Options
  • Input Signal: 0.02-0.1MPa (0.2~1 bar)
  • Supply Pressure: 0.14~0.7MPa (1.4~7 bar)
  • Flow Capacity: 80LPM (sup=0.14MPa)
  • Material: Aluminium Diecasting
4 - 6 weeks
$566.75USD
$19.16 Shipping
ROTORK YTC YT-1200L Series Pneumatic Positioner, Double-Acting, 10-150mm Stroke, 1/4"NPT,LowTemp View More
  • YT-1200: Pneumatic-Pneumatic Positioner
  • L: Linear Motion Type
  • D: Double Acting
  • 1: 10~40MM Lever Type
  • 1: 01 Orifice Type
  • 2: NPT (1/4") Connection Type
  • L: Low Temperature -40 deg C ~ +70 deg C
  • Input Signal: 0.02-0.1MPa (0.2~1 bar)
  • Supply Pressure: 0.14~0.7MPa (1.4~7 bar)
  • Flow Capacity: 80LPM (sup=0.14MPa)
  • Material: Aluminium Diecasting
4 - 6 weeks
$584.44USD
$19.16 Shipping

Specifications

Actuator Type

  • Double-Acting
  • Linear
  • Rotary
  • Single Action

Air Consumption

  • 0.19 scfm (0.32 m³/hour)

Approvals & Certifications

  • CSA
  • FM

Enclosure Finish

  • Corrosion-Resistant Coating

Enclosure, Body Material

  • Die Cast Aluminum

Environmental Protection

  • Dust-Proof
  • IP66
  • Weatherproof

Flow Capacity

  • 7 scfm (11.89 m³/hour) - Max.

Frequency

  • No Resonance Effects From: 5 to 200 Hz

Gauge Connection

  • 1/8” NPT

Hysteresis

  • ± 1 % of Full Scale

Linearity

  • ± 2 % of Full Scale

NPT Connection

  • 1/4” NPT

Operating Temperature

  • -20° to 70° C (-4° to 160° F)

Pressure Range

  • psi: 3 to 15 (kPa: 20 to 100, bar: 0.2 to 1)

Repeatability

  • ± 0.5 % of Full Scale

Sensitivity

  • 0.5 % of Full Scale

Supply Pressure

  • psig: 20 to 100 (kPa: 137.9 to 689.5, bar: 1.37 to 6.89)
