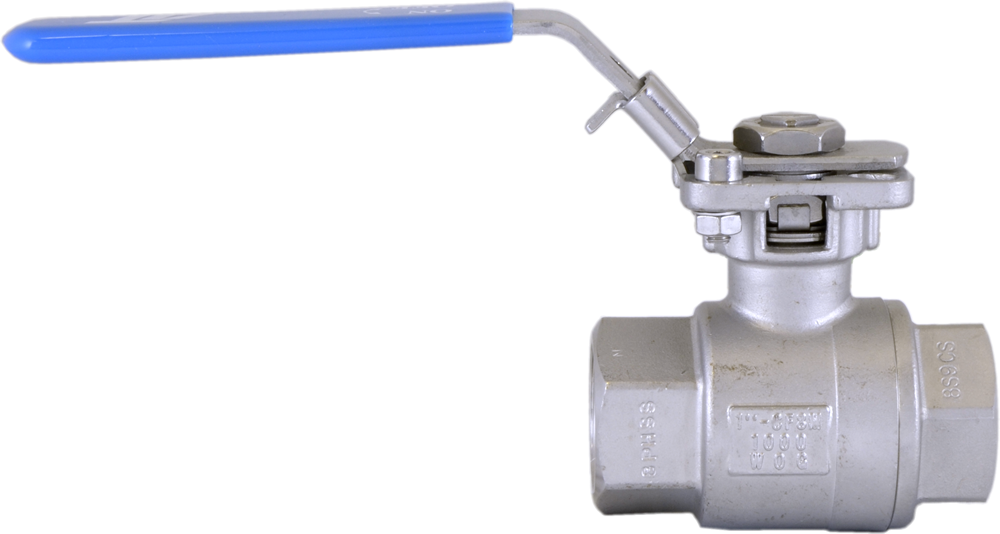

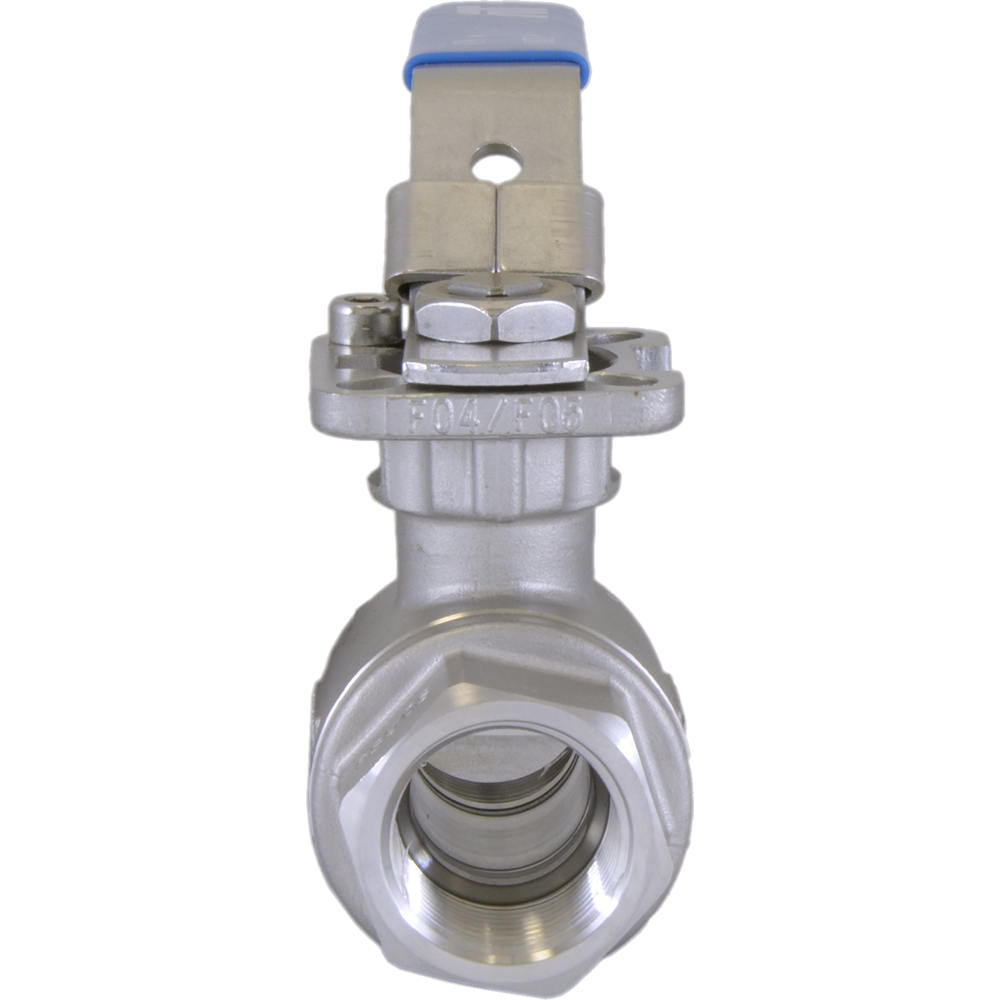

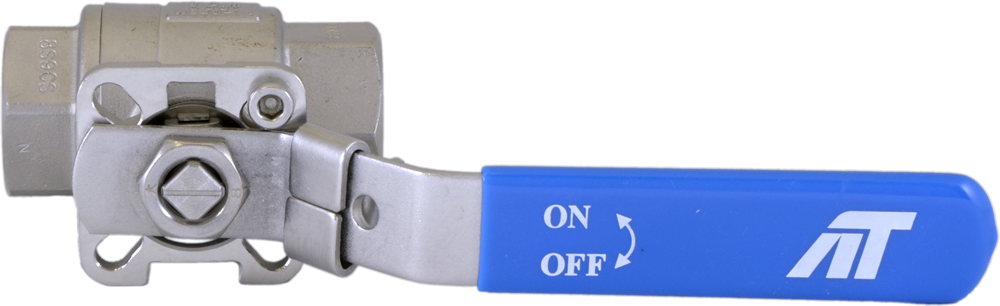

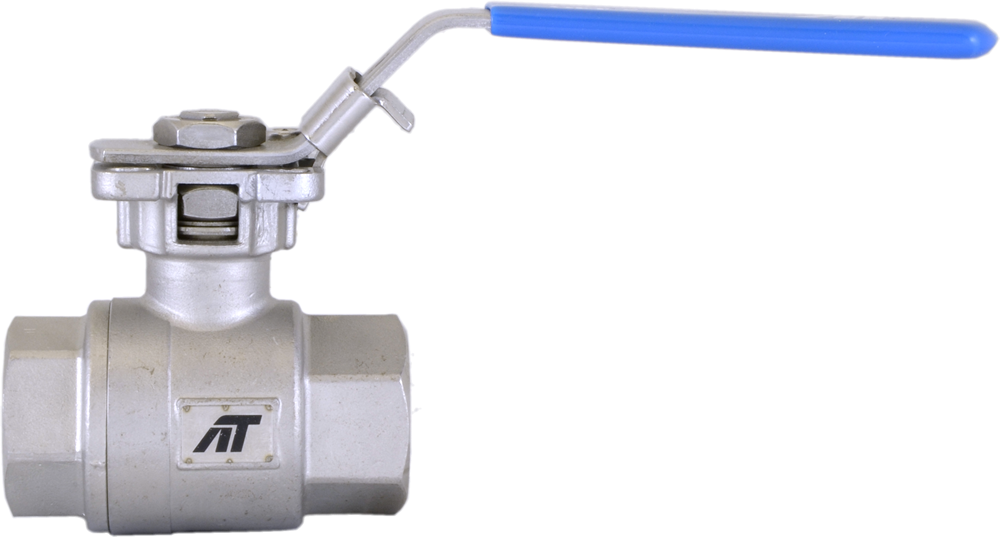

22 Series Manual Ball Valve

Brand: A-T Controls, Inc
A-T's Series 22 ball valves feature a high-quality investment cast body and end.

Superior leak protection is accomplished by using our patented “Pyramidal” stem seal system.

This advanced system protects against wear and leakage experienced by other ordinary ball valves.
Features
  • Design: 2-Piece High Performance
  • Size: 1/4" to 3" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
  • Body: 316 Stainless Steel
  • Trim: 316 Stainless Steel
  • Available Seats: RTFE
  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 800 to 1,000 psig
A-T's Series 22 ball valves feature a high-quality investment cast body and end.

Superior leak protection is accomplished by using our patented “Pyramidal” stem seal system.

This advanced system protects against wear and leakage experienced by other ordinary ball valves.
Features
  • Design: 2-Piece High Performance
  • Size: 1/4" to 3" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
  • Body: 316 Stainless Steel
  • Trim: 316 Stainless Steel
  • Available Seats: RTFE
  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 800 to 1,000 psig
Close

Displaying prices & availability for Ohio, United States 43201 in USD. Change location or currency.

Models matching criteria: 4
22-TH-0025-XXX
A-T CONTROLS Series 22 Ball Valve, 2-Piece Direct Mt. Full-Port, Threaded, 1/4", RTFE view more
  • Design: 2-Piece High-Performance Direct Mount
  • Size: 1/4" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Reinforced TFE Seats
  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
4 In Stock
$63.76 USD
22-TH-0050-XXX
A-T CONTROLS Series 22 Ball Valve, 2-Piece Direct Mt. Full-Port, Threaded, 1/2", RTFE view more
  • Design: 2-Piece High Performance Direct Mount
  • Size: 1/2" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Reinforced TFE Seats
  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
2 - 4 weeks
$74.03 USD
22-TH-0100-XXX
A-T CONTROLS Series 22 Ball Valve, 2-Piece Direct Mt. Full-Port, Threaded, 1", RTFE view more
  • Design: 2-Piece High Performance Direct Mount
  • Size: 1" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Reinforced TFE Seats
  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
2 - 4 weeks
22-TH-0200-XXX
A-T CONTROLS Series 22 Ball Valve, 2-Piece Direct Mt., Threaded Ends, 2", RTFE view more
  • Design: 2-Piece High Performance Direct Mount
  • Size: 2" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Reinforced TFE Seats
  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
2 - 4 weeks
Close

Specifications

Brand

Direct Mount

  • Yes

Enclosure, Body Material

  • 316 Stainless Steel

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1-1/2" NPT Female
  • 1-1/4" NPT Female
  • 2" NPT Female
  • 2-1/2" NPT Female
  • 3" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female

Options

  • Oval Handle
  • Spring Return Handle
  • Vented Ball

Port

  • Full

Pressure Rating

  • psig: 800 to 1,000

Pyramidal Stem Packing

  • Yes

Seat / Seal Material

  • RTFE (Reinforced Teflon)

TA-Luft Certified

  • Yes

Trim Material

  • 316 Stainless Steel

Valve Type

  • Manual
