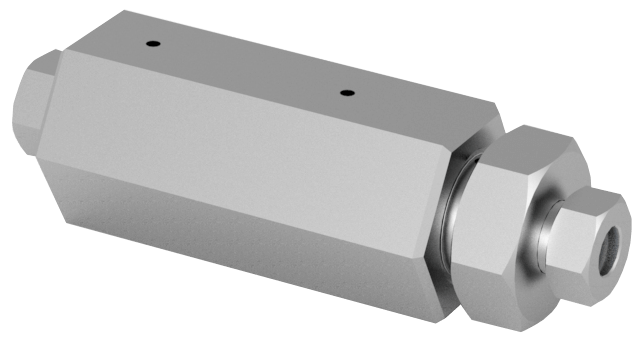

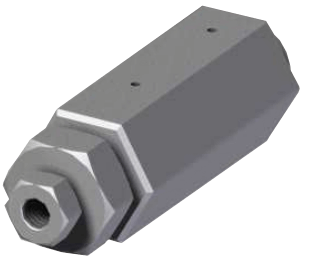

MPCV Medium Pressure Check Valve

Brand: Bifold - by Rotork
The Bifold range of check valves have been developed using advanced sealing techniques from within the existing hydraulic control valve products.

These sealing techniques ensure the ball check valve prevents reverse flow by providing a leak-tight shutoff.
Features
  • 15 psi nominal cracking pressure
  • Optimized flow path. High tensile 316L CW stainless steel bodies as standard
  • Exotic materials available upon request
  • Traceability via a unique serial number stamped on the valve body
  • Operating temperature range of -20° to 120°C (-4° to 248°F)
  • Tube sizes from 1/4" to 1"
show more
The Bifold range of check valves have been developed using advanced sealing techniques from within the existing hydraulic control valve products.

These sealing techniques ensure the ball check valve prevents reverse flow by providing a leak-tight shutoff.
Features
  • 15 psi nominal cracking pressure
  • Optimized flow path. High tensile 316L CW stainless steel bodies as standard
  • Exotic materials available upon request
  • Traceability via a unique serial number stamped on the valve body
  • Operating temperature range of -20° to 120°C (-4° to 248°F)
  • Tube sizes from 1/4" to 1"

Specifications

Configuration

  • Ball Typical
  • Soft Seat Typical

Cracking Pressure

  • psi: 15 (kPa: 103.4, bar: 1.034)

Enclosure, Body Material

  • 316L Stainless Steel

O-Ring Material

  • Nitrile
  • Viton (80 Shore)

Operating Temperature

  • -20° to 120° C (-4° to 248° F)

Orifice Size

  • 0.11” to 0.56” (2.80 mm to 14.30 mm)

Supply Pressure - Maximum

  • psi: 20,000 (kPa: 137,900, bar: 1,379)

Tube Inlet

  • 1” Tube
  • 1/4” Tube
  • 3/4” Tube
  • 3/8” Tube
  • 9/16” Tube

Tube Outlet

  • 1” Tube
  • 1/4” Tube
  • 3/4” Tube
  • 3/8” Tube
  • 9/16” Tube

Typical Applications

  • Chemical Injection Skids
  • Hydraulic Control Panels
  • Hydrostatic Testing Equipment
  • Other General Industrial Applications
  • Water Jets
