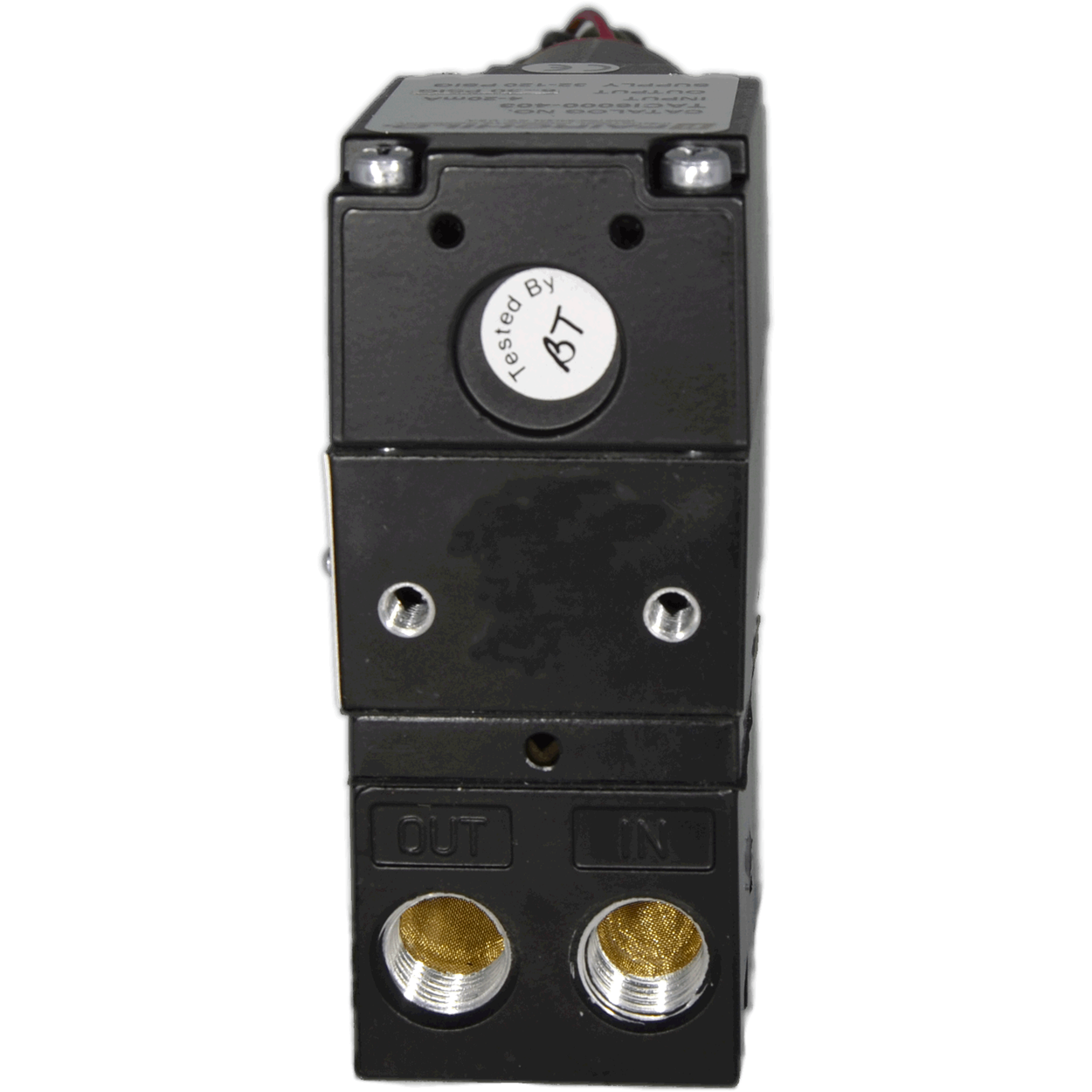

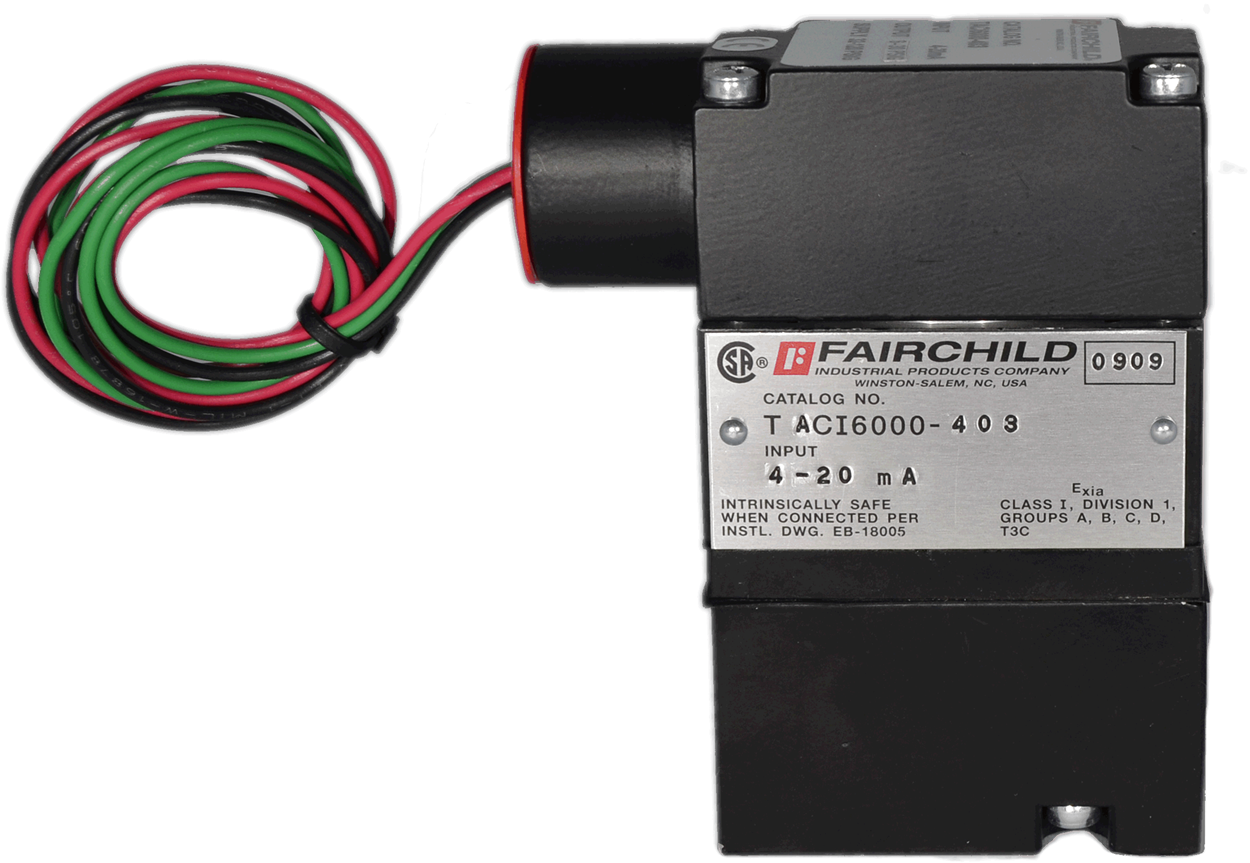

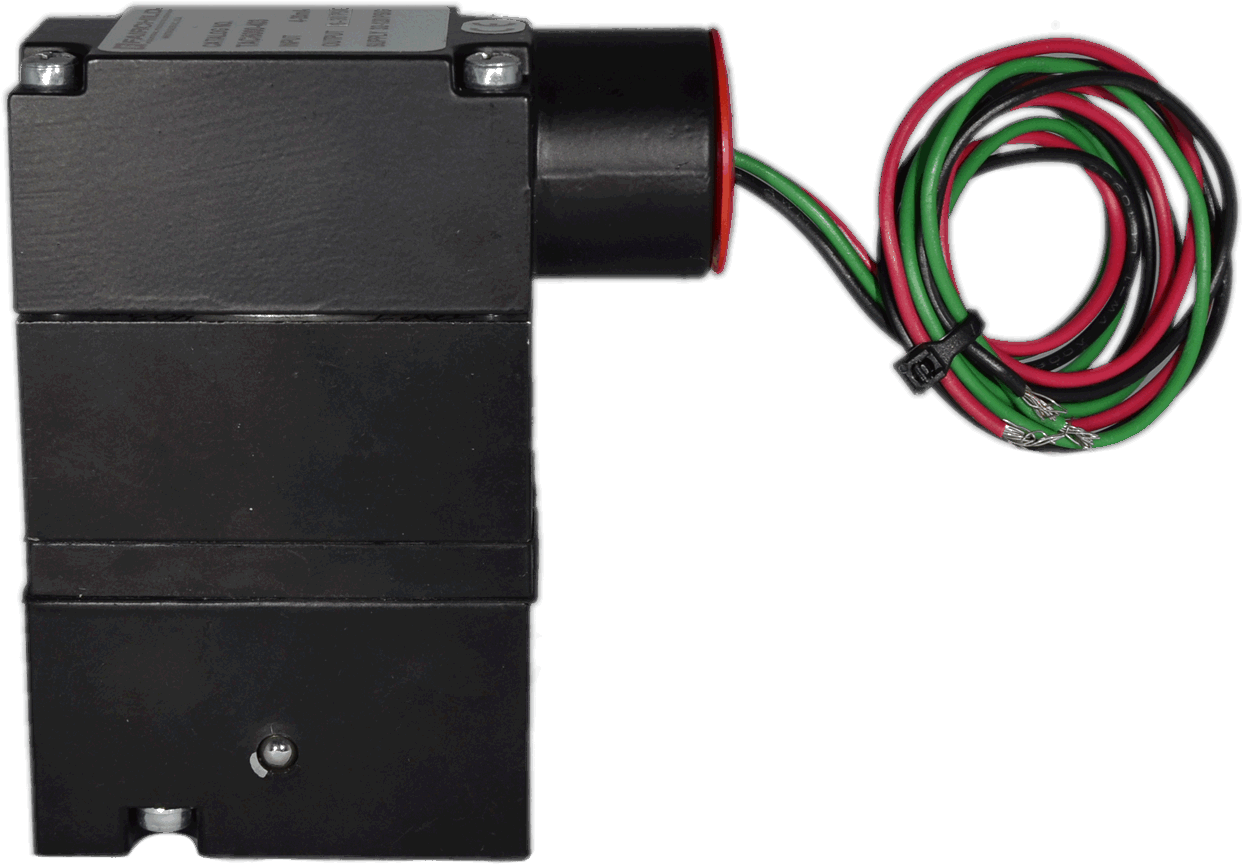

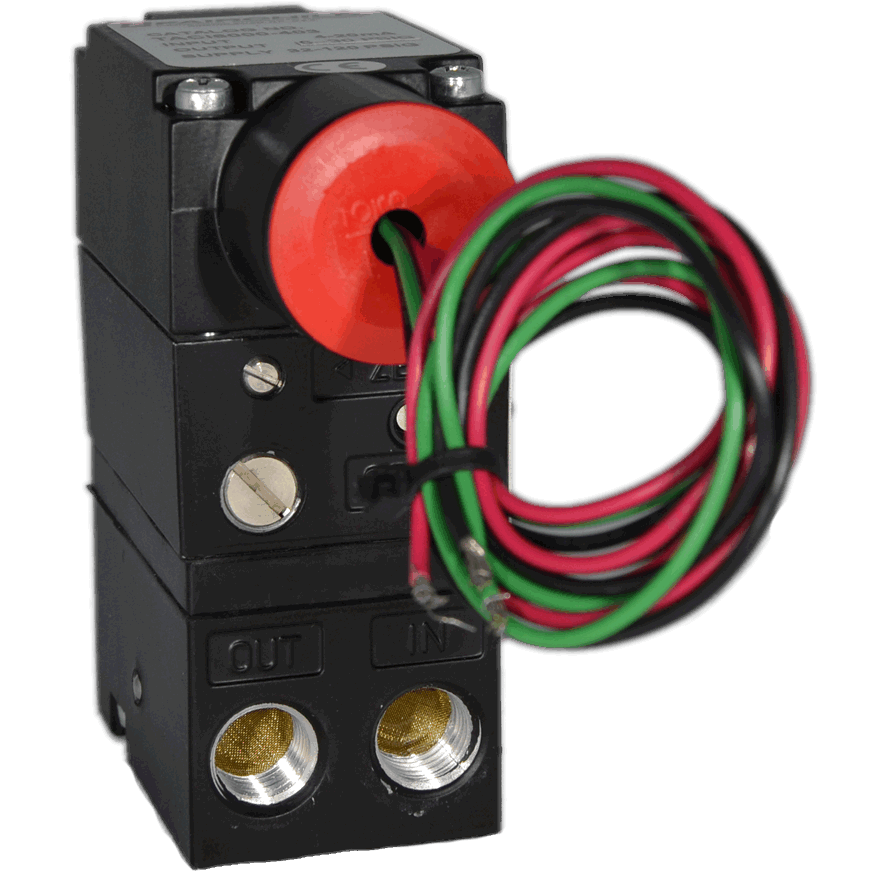

Model T6000 Electro-Pneumatic Pressure Transducer

Brand: Fairchild Industrial Products
Request Information
The Rotork Fairchild T6000 compact size E/P, I/P pressure transducer is a field reversible unit that provides an output directly or inversely proportional to the input signal.

Its six available output pressure ranges and six available input signal ranges meet most process and machine requirements.

The T6000 Series is designed for precision applications providing maximum versatility.

The modular construction permits any basic unit to be used in the explosion-proof, rack, wall, pipe, panel, DIN rail or 3, 5, 10, or 15 unit manifold configurations and servicing or calibration is quick and easy.

An extended range T6000 I/P Transducer is also available, which provides output pressure capability up to 0-120 psi [0-8.0 BAR], (0-800 kPa).

The Extended Unit is made up of three sections, the Primary Control Section, the Pneumatic Relay Section, and an additional Pneumatic Relay Section.

The additional Relay Section is used to amplify the output pressure.
Features
  • Field reversible
  • RFI/EMI Protection
  • Six output pressure ranges
  • Six input signal ranges
  • Compact size
  • Explosion-Proof NEMA 4X, IP65, Type 4 Enclosure available
  • Input and Output ports on both front and bottom
show more
The Rotork Fairchild T6000 compact size E/P, I/P pressure transducer is a field reversible unit that provides an output directly or inversely proportional to the input signal.

Its six available output pressure ranges and six available input signal ranges meet most process and machine requirements.

The T6000 Series is designed for precision applications providing maximum versatility.

The modular construction permits any basic unit to be used in the explosion-proof, rack, wall, pipe, panel, DIN rail or 3, 5, 10, or 15 unit manifold configurations and servicing or calibration is quick and easy.

An extended range T6000 I/P Transducer is also available, which provides output pressure capability up to 0-120 psi [0-8.0 BAR], (0-800 kPa).

The Extended Unit is made up of three sections, the Primary Control Section, the Pneumatic Relay Section, and an additional Pneumatic Relay Section.

The additional Relay Section is used to amplify the output pressure.
Features
  • Field reversible
  • RFI/EMI Protection
  • Six output pressure ranges
  • Six input signal ranges
  • Compact size
  • Explosion-Proof NEMA 4X, IP65, Type 4 Enclosure available
  • Input and Output ports on both front and bottom
Close
Close

Specifications

Brand

Accuracy

  • 0.5 % to 1.0 % (Independent Linearity)

Air Consumption

  • Maximum

Approvals & Certifications

  • ATEX
  • CE
  • CSA
  • FM

BSP Connection

  • 1/4” BSPT Female

Elastomers

  • Nitrile

Electrical Connectors

  • 1/2” NPT Conduit Fitting with Pigtail
  • DIN 43650
  • Junction Box
  • Rack Mount
  • Terminal Block

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Dust Ignition-Proof
  • Explosion-proof
  • Intrinsically Safe
  • IP65
  • IP66
  • NEMA 4X / IP65, 66

Exhaust Capacity - Relieving Units Only

  • 2 scfm (3.4 m³/hour)

Flow Rate

  • 11 scfm (18.7 m³/hour) at psig: 150 (bar: 10, kPa: 1,000) Supply & Midscale Output - Extended Range
  • 2.5 scfm (4.25 m³/hour) at psig: 25 (bar: 1.7, kPa: 170) Supply & psig: 9 (bar: 0.6, kPa: 60) Output
  • 9 scfm (15.3 m³/hour) at psig: 120 (bar: 8, kPa: 800) Supply & psig: 9 (bar: 0.6, kPa: 60) Output

Hysteresis

  • 0.25 % of Full Scale
  • Less than 1.0 % of Full Scale at psig: 125 (bar: 8.8, kPa: 880)
  • Less than 1.0 % of Full Scale at psig: 35 (bar: 2.5, kPa: 250)
  • Less than 1.0 % of Full Scale at psig: 65 (bar: 4.6, kPa: 460)

Input

  • 4-20 mA
  • mA: 10-50
  • Vdc: 0-10
  • Vdc: 0-5
  • Vdc: 1-5
  • Vdc: 1-9

NPT Connection

  • 1/4” NPT Female

Orifice Material

  • Nickel-Plated Brass

Output Pressure

  • bar: 0 to 8
  • kPa: 0 to 800
  • psig: 0 to 120

Process Temperature

  • -30° to 65° C (-20° to 150° F)

Relief

  • Relieving

Repeatability

  • ≤ 0.1 % of Full Scale

RFI/EMI Effect

  • < 0.5 % of Span at 30 V/m Class 3 Band ABC (20-1,000 MHz) Per SAMA PMC 33.1 1978 & < 0.5 % of Span at 10 V/m Level, to 2 GHz Band Per EN 61,000-4-3: 1998 +A1 EMC Directive 89/336/EEC European Norms EN 61326

Signal Impedance

  • 3-Wire Voltage Input: 10 Kilohms

Span - Minimum

  • For Output Range psig: 0 to 120 - psig: 50 (bar: 3.5, kPa: 350)
  • For Output Range psig: 0 to 30 - psig: 12 (bar: 0.8, kPa: 80)
  • For Output Range psig: 0 to 60 - psig: 25 (bar: 1.5, kPa: 150)
  • For Output Range psig: 3 to 15 - psig: 5 (bar: 0.35, kPa: 35)
  • For Output Range psig: 3 to 27 - psig: 10 (bar: 0.7, kPa: 70)
  • For Output Range psig: 6 to 30 - psig: 10 (bar: 0.7, kPa: 70)

Span & Zero Adjustments

  • Screwdriver Adjustments Located on Front of Unit

Supply Pressure

  • For Output Range psig: 0 to 120: psig: 125 to 150 (bar: 8.8 to 10, kPa: 880 to 1,000)
  • For Output Range psig: 0 to 30: psig: 35 to 150 (bar: 2.5 to 10, kPa: 250 to 1,000)
  • For Output Range psig: 0 to 60: psig: 65 to 150 (bar: 4.6 to 10, kPa: 460 to 1,000)
  • For Output Range psig: 3 to 15: psig: 20 to 120 (bar: 1.5 to 8, kPa: 150 to 800)
  • For Output Range psig: 3 to 27: psig: 32 to 120 (bar: 2.2 to 8, kPa: 220 to 800)
  • For Output Range psig: 6 to 30: psig: 35 to 120 (bar: 2.4 to 8, kPa: 240 to 800)

Supply Pressure Effect

  • psig: 0.25 (bar: 0.17, kPa: 1.7) for a psig: 25 (bar: 1.7, kPa: 170) Change in Supply Pressure

Supply Voltage

  • 3-Wire Voltage Input: 7.2-30 Vdc, less than 3 mA

Trim Material

  • Brass
  • Zinc-Plated Steel

Vent

  • Straight
