Images are representations only.

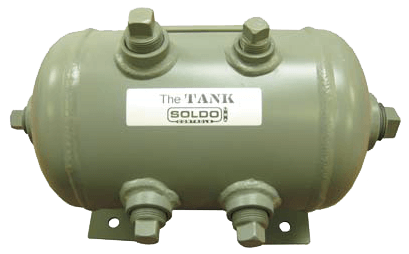

The Fail Safe Air Tank

Brand: Soldo Controls
The Soldo Tank AT Series Fail Safe Air Tank provides a compact design and the most economical solution when used with a double acting actuator over the cost of an equivalent torque spring return actuator.
  • Rugged Design
    • The TANK can be operated up to 200 psi at 650°F (343 and is an ASME coated to Section VIII Division I. The TANK is constructed of carbon steel and polyester powder coated. °C)
  • Standardized Mounting
    • The TANK utilizes hat-style bracket design which is saddle welded onto The TANK. The unique hat-style bracket allows easy wrench access for installing the TANK.
  • Outdoor Application
    • The TANK can be used indoors or outdoors.
  • Pre-Tubed
    • Each TANK is pre-tubed for ¼”, ½”, or ¾” npt.
  • Construction: Powder Coated Carbon Steel
  • Gauge: Stainless Steel 0 to 160 psi
  • Pin Connector: 316 Stainless Steel or Aluminum with Vinyl
  • TANK Approvals: Rated to 200 psi at 343°C (650°F) ASME Section VIII Div I
show more
The Soldo Tank AT Series Fail Safe Air Tank provides a compact design and the most economical solution when used with a double acting actuator over the cost of an equivalent torque spring return actuator.
  • Rugged Design
    • The TANK can be operated up to 200 psi at 650°F (343 and is an ASME coated to Section VIII Division I. The TANK is constructed of carbon steel and polyester powder coated. °C)
  • Standardized Mounting
    • The TANK utilizes hat-style bracket design which is saddle welded onto The TANK. The unique hat-style bracket allows easy wrench access for installing the TANK.
  • Outdoor Application
    • The TANK can be used indoors or outdoors.
  • Pre-Tubed
    • Each TANK is pre-tubed for ¼”, ½”, or ¾” npt.
  • Construction: Powder Coated Carbon Steel
  • Gauge: Stainless Steel 0 to 160 psi
  • Pin Connector: 316 Stainless Steel or Aluminum with Vinyl
  • TANK Approvals: Rated to 200 psi at 343°C (650°F) ASME Section VIII Div I

Specifications

Approvals & Certifications

  • ASME VII Div I

Enclosure, Body Material

  • Powder-Coated Carbon Steel

Mounting

  • Bracket

NPT Connection

  • 1/2" NPT
  • 1/4" NPT
  • 3/4" NPT

Pressure Range

  • bar: 0 to 13.8
  • kPa: 0 to 1,379
  • psi: 0 to 200
