LC203-LC205 2/2-Way Latching Solenoid Valve

Brand: M&M International
Media: Water, Oil, Air
Media Temperature: -10° to 90° C (14° to 194° F)
Ambient temperature: -10° to 50° C (14° to 122° F)
Body Material: Brass (CW617N EN 12165)
Operator Material: Stainless Steel, Brass Plunger
Operator Seal and Diaphragm Material: NBR
Coil Power: DC 3W
Absorbition 20° C (68° F): 500mA for 20Q0, 250mA for 21Q0, 125mA for 22Q0
Protection Class: IP65 (with Connector and Gasket)
show more

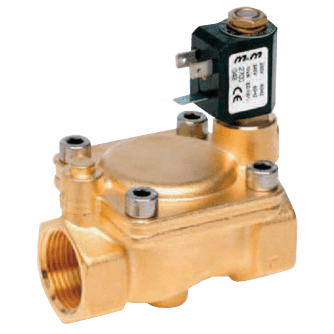

Images are representations only.
Media: Water, Oil, Air
Media Temperature: -10° to 90° C (14° to 194° F)
Ambient temperature: -10° to 50° C (14° to 122° F)
Body Material: Brass (CW617N EN 12165)
Operator Material: Stainless Steel, Brass Plunger
Operator Seal and Diaphragm Material: NBR
Coil Power: DC 3W
Absorbition 20° C (68° F): 500mA for 20Q0, 250mA for 21Q0, 125mA for 22Q0
Protection Class: IP65 (with Connector and Gasket)

Specifications

Approvals & Certifications

  • CE

BSP Connection

  • G 1/2" Female
  • G 1/4" Female
  • G 3/8" Female

Enclosure, Body Material

  • Brass (CW617N EN 12165)

Environmental Protection

  • IP65 (with Connector & Gasket)

Seat/Seal Material

  • Operator Seal Material: NBR
  • Seat Material: EPDM, Maximum
  • Seat Material: FKM, Maximum
