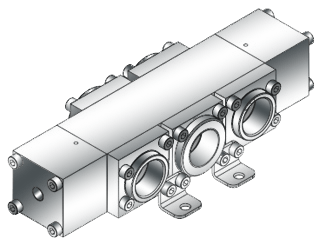

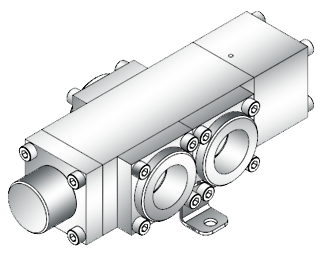

1650 Series Pilot-Operated

Brand: Midland-ACS
A range of 3/2 and 5/2 Pilot Operated Spool Valves in Stainless Steel for use on Gases.
Features
  • Specifically Designed for Severe Environments
  • 3/2 and 5/2 Versions
  • Working Temperature Range -20° to 180º C (-4° to 356º F)
  • 316L Stainless Steel Construction
  • Designed for Actuator Control
show more
A range of 3/2 and 5/2 Pilot Operated Spool Valves in Stainless Steel for use on Gases.
Features
  • Specifically Designed for Severe Environments
  • 3/2 and 5/2 Versions
  • Working Temperature Range -20° to 180º C (-4° to 356º F)
  • 316L Stainless Steel Construction
  • Designed for Actuator Control

Specifications

Brand

Ambient Temperature Range

  • -20° to 180° C (-4° to 356° F)

Approvals & Certifications

  • ATEX
  • CE
  • EAC
  • Ex

Enclosure, Body Material

  • 316L Stainless Steel

Flow Capacity

  • 1" Valves - 477 scfm (810 m³/hour) 13.5 Cv
  • 3/2" Valves - 318 scfm (540 m³/hour) 9.0 Cv

Media

  • Air
  • Gases - Filtered Lubricated or Non-Lubricated
  • Inert Gas
  • Sweet Natural Gas

NACE & NIST

  • NACE

NPT Connection

  • 1/8” Female NPT Pilot Port
  • 1” Female NPT Line Port
  • 3/4" NPT Female Line Port

Seat / Seal Material

  • Fluoroelastomer

Spring Material

  • 316 Stainless Steel - Spool

Supply Pressure - Maximum

  • psi: 174 (bar: 12, kPa: 1,200)
