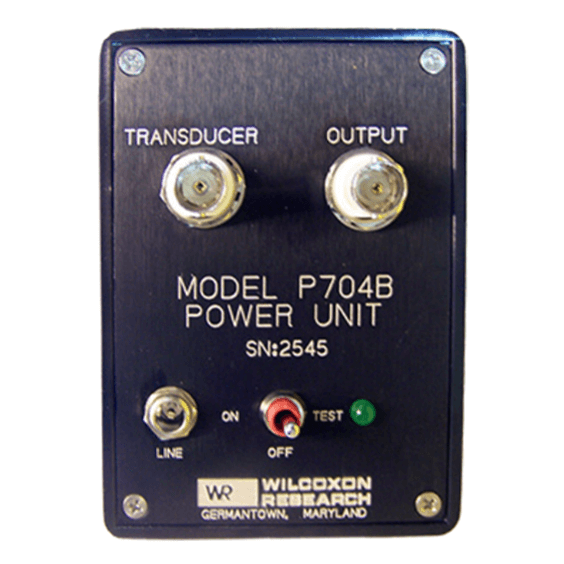

Model P704B General Purpose Power Unit

Brand: Wilcoxon Sensing Technologies
Features:
  • Powers most 700 series accelerometers
  • Battery powered (line adaptor optional)
  • Portable and lightweight
  • Battery condition light
  • Manufactured in an approved ISO 9001 facility
show more
Images are representations only.
Features:
  • Powers most 700 series accelerometers
  • Battery powered (line adaptor optional)
  • Portable and lightweight
  • Battery condition light
  • Manufactured in an approved ISO 9001 facility

Specifications

Approvals & Certifications

  • ISO 9001

Battery Life

  • > 120 Hours

Capacitance

  • Decoupling Capacitor: 22 µF, 35 Vdc

Electrical Connectors

  • Signal Input, Output Connector: BNC Connector

Indication

  • LED Lights

Input

  • 25 Vdc when Using NiCad Batteries
  • Current to Transducer, ± 20%: 2.4 mA DC
  • Voltage to Transducer: 27 Vdc

Load Impedance

  • Recommended Load Impedance: > 100 KiloOhms

Power Requirement

  • 9 V Alkaline Batteries

Temperature Range

  • 0° to 55° C (32° to 130° F)
