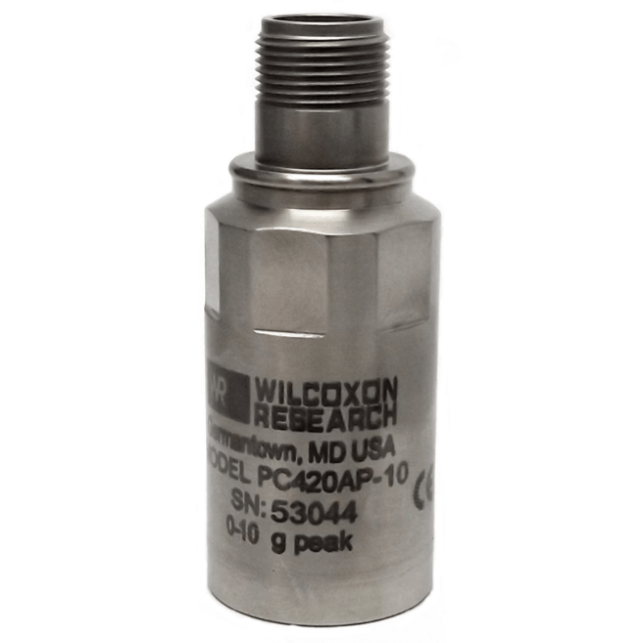

PC420A Series RMS & Peak Acceleration Loop Powered Sensor

Brand: Wilcoxon Sensing Technologies
Wilcoxon’s 4-20 mA vibration sensors integrate easily with an existing PLC, DCS or SCADA system. The PC420A series provides 24/7 output of overall machine vibration for trending in PLC systems, alerting users to changing machine conditions and helping to guide maintenance in prioritizing the need for service. The choice of RMS or peak output allows you to choose the sensor that best fits your industrial requirements.

The 4-20 mA output of the PC420A series is proportional to acceleration vibration. An output of 4 mA indicates a level of 0 g or no vibration present. A full-scale reading of 20 mA indicates that the maximum range (RMS or peak) of vibration is present.
Features
  • Choice of true RMS or calculated peak output
  • Corrosion resistant
  • Hermetically sealed
  • ESD protection
  • Overload protection
  • Reverse wiring protection
show more
Images are representations only.
Wilcoxon’s 4-20 mA vibration sensors integrate easily with an existing PLC, DCS or SCADA system. The PC420A series provides 24/7 output of overall machine vibration for trending in PLC systems, alerting users to changing machine conditions and helping to guide maintenance in prioritizing the need for service. The choice of RMS or peak output allows you to choose the sensor that best fits your industrial requirements.

The 4-20 mA output of the PC420A series is proportional to acceleration vibration. An output of 4 mA indicates a level of 0 g or no vibration present. A full-scale reading of 20 mA indicates that the maximum range (RMS or peak) of vibration is present.
Features
  • Choice of true RMS or calculated peak output
  • Corrosion resistant
  • Hermetically sealed
  • ESD protection
  • Overload protection
  • Reverse wiring protection

PC420A Series

4-20 mA Output Type

4-20 mA Full Scale

Specifications

Approvals & Certifications

  • CE

Circuit Protection

  • Overload Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Cable (J9T2A)
  • Mating Connector: R6 Typical
  • Output Connector: 2-Pin, MIL-C-5015 Style

Element

  • Sensing Element Design: PZT, Shear

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • Corrosion Resistant

Frequency

  • Frequency Response (± 10%): 10 Hz to 1 kHz
  • Frequency Response (± 3 dB): 1 Hz to 2 kHz

Loop Resistance

  • 700 ohms at 24 Vdc, Maximum

Mounting

  • 1/4-28 Tapped Hole

Power

  • RL Minimum Wattage Capability: 0.125 to 0.5 W at 12-30 Vdc

Power Requirement

  • 2-Wire Loop Power (Voltage at Sensor Terminals): 12-30 Vdc

Repeatability

  • ± 2%

Seal Type

  • Hermetic

Sensitivity

  • Transverse Sensitivity: Maximum 5%

Shock

  • Shock Limit: 2,500 G Peak

Temperature Range

  • -40° to 105° C (-40° to 221° F)

Turn-On Time

  • 4-20 mA Loop: < 30 seconds

Vibration

  • Vibration Limit: 250 G Peak
