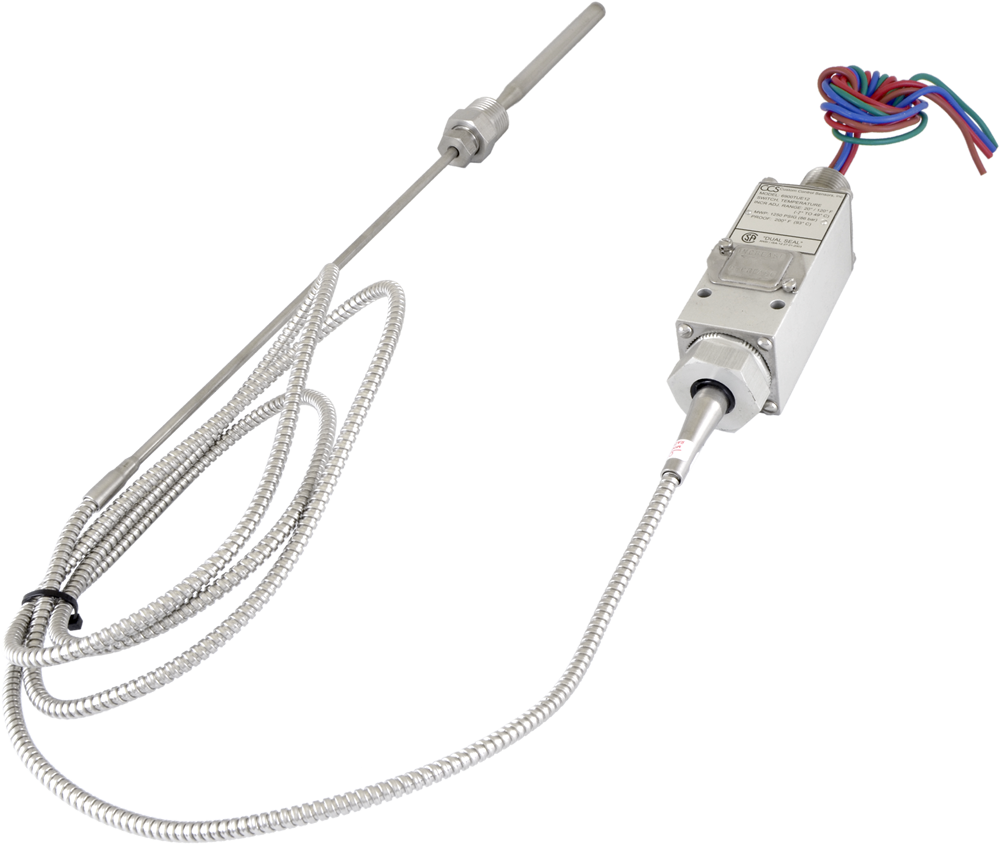

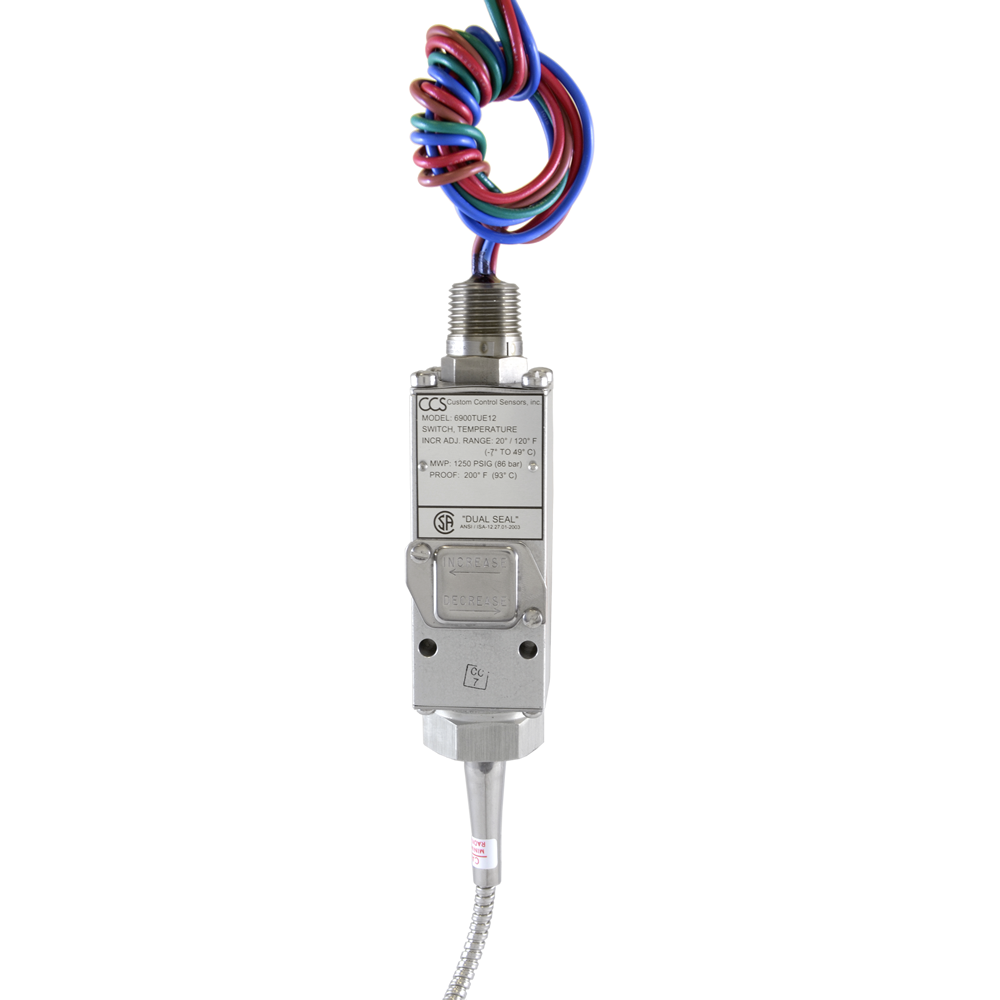

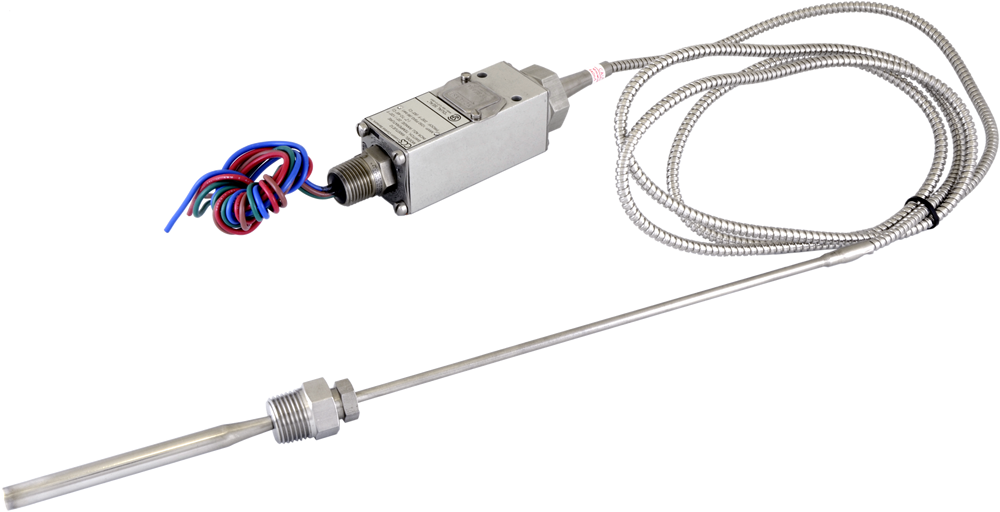

6900TUE Series Temperature Switch

Brand: Custom Control Sensors
The hazardous locations CCS Dual-Snap 6900TUE Series is the most popular, all-around temperature pressure switch with a stainless steel capillary tube and armored jacket probe port fitting.

The series is UL/CSA explosion proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G certified and ATEX/IECEx II 2 G D Ex d IIC and Ex to IIIC. NEMA 4X and IP66 rating is optimum for wet conditions.

It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability.

It comes with high over-temperature capabilities and still relatively compact in size to conveniently mount on panels. It meets the demand for all applications commercial, industrial and otherwise.
Features
  • Adjustable Set Point Range:
    • Increasing: 20° to 650° F, -7° to 343° C
    • Decreasing: 0° to 640° F, -18° to 338° C
  • Deadband: Approximately
    • At Bottom of Range: 20° to 25° F, 11° to 14° C
    • At Top of Range: 5° to 10° F, 4° to 5° C
  • Probe Temperature (Maximum): 200° to 700° F, 93° to 371° C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel
    • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, CRN
show more
The hazardous locations CCS Dual-Snap 6900TUE Series is the most popular, all-around temperature pressure switch with a stainless steel capillary tube and armored jacket probe port fitting.

The series is UL/CSA explosion proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G certified and ATEX/IECEx II 2 G D Ex d IIC and Ex to IIIC. NEMA 4X and IP66 rating is optimum for wet conditions.

It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability.

It comes with high over-temperature capabilities and still relatively compact in size to conveniently mount on panels. It meets the demand for all applications commercial, industrial and otherwise.
Features
  • Adjustable Set Point Range:
    • Increasing: 20° to 650° F, -7° to 343° C
    • Decreasing: 0° to 640° F, -18° to 338° C
  • Deadband: Approximately
    • At Bottom of Range: 20° to 25° F, 11° to 14° C
    • At Top of Range: 5° to 10° F, 4° to 5° C
  • Probe Temperature (Maximum): 200° to 700° F, 93° to 371° C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel
    • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, CRN
