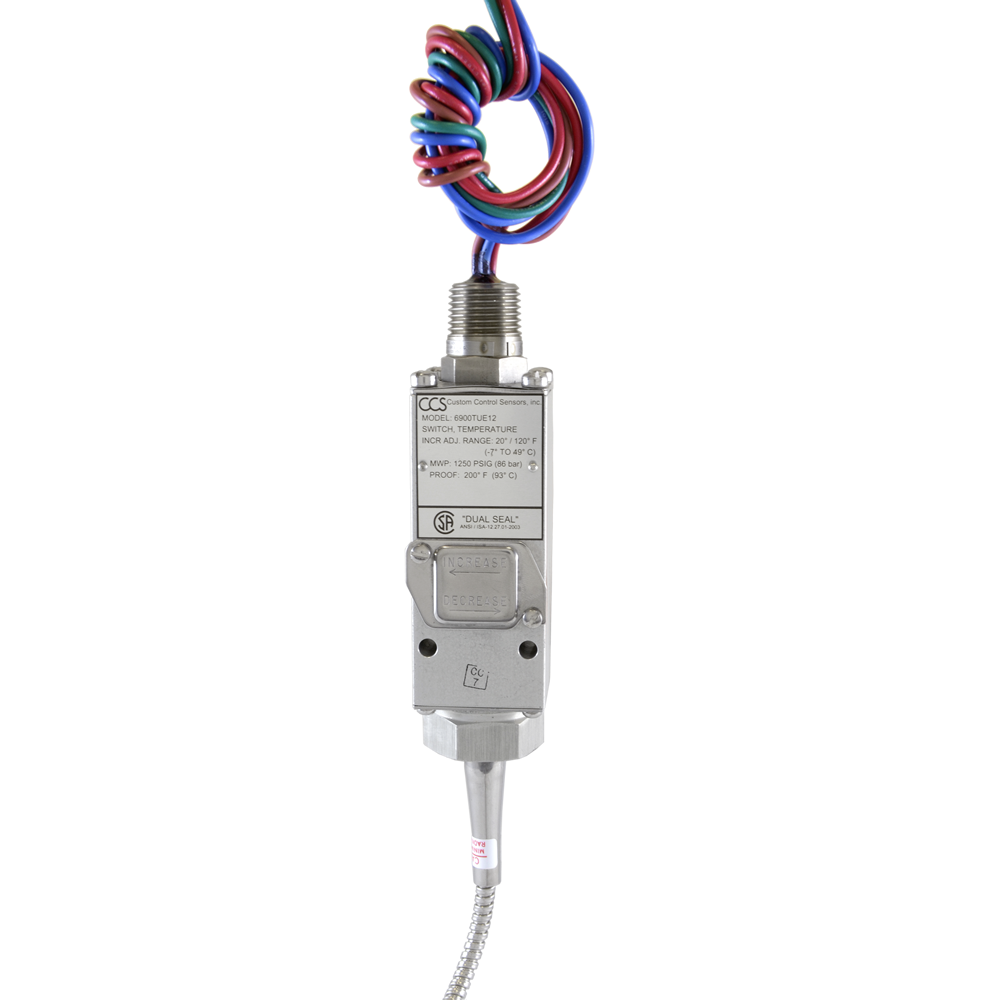

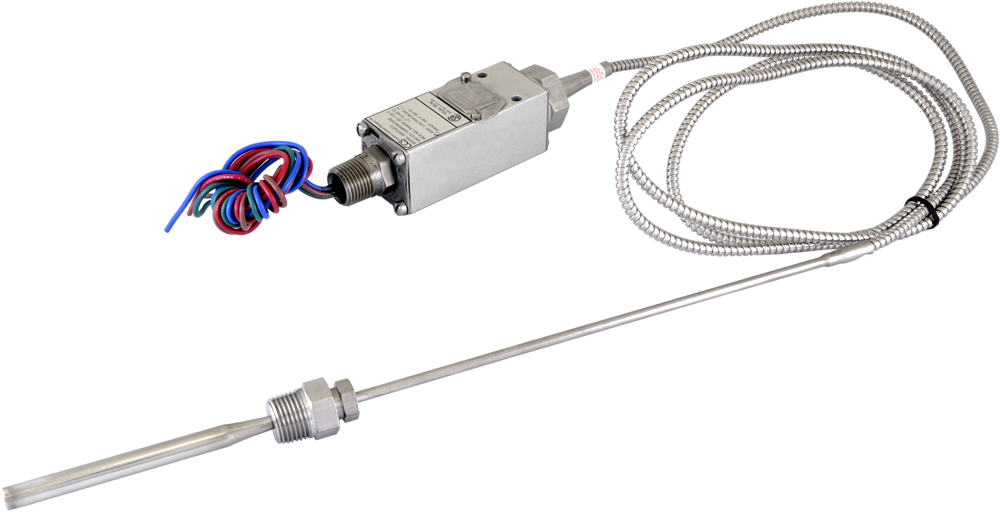

6900TUE Series Temperature Switch

Brand: Custom Control Sensors, LLC
Does not ship to OH, United States
The hazardous locations CCS Dual-Snap 6900TUE Series is the most popular, all-around temperature pressure switch with a stainless steel capillary tube and armored jacket probe port fitting.

The series is UL/CSA explosion proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G certified, and ATEX/IECEx II 2 G D Ex d IIC and Ex to IIIC. NEMA 4X and IP66 ratings are optimal for wet conditions.

It is designed with high vibration and shock resistance, utilizing Dual Snap® disc spring technology, ensuring high accuracy and repeatability.

It comes with high over-temperature capabilities and is still relatively compact in size to conveniently mount on panels. It meets the demand for all applications, commercial, industrial, and otherwise.
FeaturesN
The hazardous locations CCS Dual-Snap 6900TUE Series is the most popular, all-around temperature pressure switch with a stainless steel capillary tube and armored jacket probe port fitting.

The series is UL/CSA explosion proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G certified, and ATEX/IECEx II 2 G D Ex d IIC and Ex to IIIC. NEMA 4X and IP66 ratings are optimal for wet conditions.

It is designed with high vibration and shock resistance, utilizing Dual Snap® disc spring technology, ensuring high accuracy and repeatability.

It comes with high over-temperature capabilities and is still relatively compact in size to conveniently mount on panels. It meets the demand for all applications, commercial, industrial, and otherwise.
FeaturesN
Close

Displaying prices & availability for Ohio, United States in USD. Change location or currency.

Models matching criteria: 63
6900TUE16
CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary show more
  • Adjustable Set Point Range
    • Increasing
      • 185°F to 315°F
      • 85°C to 157°C
    • Decreasing
      • 165°F to 308°F
      • 74°C to 153°C
  • Deadband - Approximate:
    • At Bottom of Range: 20°F, 11°C
    • At Top of Range: 5°F, 4°C
  • Probe Temperature - Maximum: 400°F, 204°C
  • Probe Length / Width: 4.5" / 0.38"
  • Wetted Materials
    • Temperature Probe: 300 Stainless Steel
    • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
50+ In Stock
Does not ship to OH, United States
6900TUE12
CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary show more
  • Adjustable Set Point Range
    • Increasing
      • 20° to 120° F
      • -7° to 49° C
    • Decreasing
      • 0° to 113° F
      • -18° to 45° C
  • Deadband - Approximate
    • At Bottom of Range: 20°F, 11°C
    • At Top of Range: 5°F, 4°C
  • Probe
    • Temperature - Maximum: 200°F, 93°C
    • Length: 4.5"
    • Diameter: 0.38"
  • Wetted Materials
    • Temperature Probe: 300 Stainless Steel
    • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
22 In Stock
6900TUE16-7001
CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10` Capillary show more
  • Adjustable Set Point Range
    • Increasing
      • 185°F to 315°F
      • 85°C to 157°C
    • Decreasing
      • 165°F to 308°F
      • 74°C to 153°C
  • Deadband - Approximate:
    • At Bottom of Range: 20°F, 11°C
    • At Top of Range: 5°F, 4°C
  • Probe Temperature - Maximum: 400°F, 204°C
  • Probe Length / Width: 4.5" / 0.38"
  • Wetted Materials
    • Temperature Probe: 300 Stainless Steel
    • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
9 In Stock
Does not ship to OH, United States
6900TUE20-7001
CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10` Capillary show more
  • Adjustable Set Point Range:

    • Increasing: +385°F to +565°F, +196°C to +296°C
    • Decreasing: +360°F to +555°F, +182°C to +291°C


    • Deadband: Approximately
      • At Bottom of Range: 25°F, 14°C
      • At Top of Range: 10°F, 5°C

    • Probe Temperature (Maximum): +650°F, +343°C
    • Probe Length / Width: 4.5" / 0.38"
    • Wetted Materials:
      • Temperature Probe: 300 Stainless Steel
      • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass

    • Relay: SPDT
    • UL, CSA
      • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

    • CE Mark, NACE
    3 In Stock
    Does not ship to OH, United States
    6900TUE20-7001
    CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10` Capillary show more
    • Adjustable Set Point Range
      • Increasing
        • 385°F to 565°F
        • 196°C to 296°C
      • Decreasing
        • 360°F to 555°F
        • 182°C to 291°C
    • Deadband - Approximate:
      • At Bottom of Range: 25°F, 14°C
      • At Top of Range: 10°F, 5°C
    • Probe Temperature - Maximum: 650°F, 343°C
    • Probe Length / Width: 4.5" / 0.38"
    • Wetted Materials
      • Temperature Probe: 300 Stainless Steel
      • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass
    • Relay: SPDT
    • UL, CSA
      • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • CE Mark, NACE
    2 In Stock
    Does not ship to OH, United States
    6900TUE12-7002
    CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 15` Capillary show more
    • Adjustable Set Point Range:

      • Increasing: +20°F to +120°F, -7°C to +49°C
      • Decreasing: +0°F to +113°F, -18°C to +45°C


      • Deadband: Approximately
        • At Bottom of Range: 20°F, 11°C
        • At Top of Range: 5°F, 4°C

      • Probe Temperature (Maximum): +200°F, +93°C
      • Probe Length / Width: 4.5" / 0.38"
      • Wetted Materials:
        • Temperature Probe: 300 Stainless Steel
        • Capillary Tube: 15' Stainless Steel Graphite & Lubricated Glass

      • Relay: SPDT
      • UL, CSA
        • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

      • CE Mark, NACE
      18 - 20 weeks
      Does not ship to OH, United States
      6900TUE14
      CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary show more
      • Adjustable Set Point Range
        • Increasing
          • 80°F to 205°F
          • 27°C to 96°C
        • Decreasing
          • 60°F to 198°F
          • 16°C to 92°C
      • Deadband - Approximate:
        • At Bottom of Range: 20°F, 11°C
        • At Top of Range: 5°F, 4°C
      • Probe Temperature - Maximum: 300°F, 149°C
      • Probe Length / Width: 4.5" / 0.38"
      • Wetted Materials
        • Temperature Probe: 300 Stainless Steel
        • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
      • Relay: SPDT
      • UL, CSA
        • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
      • CE Mark, NACE
      28 - 35 weeks
      Does not ship to OH, United States
      6900TUE14-7001
      CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10` Capillary show more
      • Adjustable Set Point Range
        • Increasing
          • 80°F to 205°F
          • 27°C to 96°C
        • Decreasing
          • 60°F to 198°F
          • 16°C to 92°C
      • Deadband - Approximate:
        • At Bottom of Range: 20°F, 11°C
        • At Top of Range: 5°F, 4°C
      • Probe Temperature - Maximum: 300°F, 149°C
      • Probe Length / Width: 4.5" / 0.38"
      • Wetted Materials
        • Temperature Probe: 300 Stainless Steel
        • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass
      • Relay: SPDT
      • UL, CSA
        • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
      • CE Mark, NACE, CRN
      28 - 35 weeks
      Does not ship to OH, United States
      6900TUE14-7003
      CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 25` Capillary show more
      • Adjustable Set Point Range:

        • Increasing: +80°F to +205°F, +27°C to +96°C
        • Decreasing: +60°F to +198°F, +16°C to +92°C


        • Deadband: Approximately
          • At Bottom of Range: 20°F, 11°C
          • At Top of Range: 5°F, 4°C

        • Probe Temperature (Maximum): +300°F, +149°C
        • Probe Length / Width: 4.5" / 0.38"
        • Wetted Materials:
          • Temperature Probe: 300 Stainless Steel
          • Capillary Tube: 25' Stainless Steel Graphite & Lubricated Glass

        • Relay: SPDT
        • UL, CSA
          • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

        • CE Mark, NACE
        28 - 35 weeks
        Non-Cancellable / Non-Refundable
        Does not ship to OH, United States
        6900TUE16-7002
        CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 15` Capillary show more
        • Adjustable Set Point Range:

          • Increasing: +185°F to +315°F, +85°C to +157°C
          • Decreasing: +165°F to +308°F, +74°C to +153°C


          • Deadband: Approximately
            • At Bottom of Range: 20°F, 11°C
            • At Top of Range: 5°F, 4°C

          • Probe Temperature (Maximum): +400°F, +204°C
          • Probe Length / Width: 4.5" / 0.38"
          • Wetted Materials:
            • Temperature Probe: 300 Stainless Steel
            • Capillary Tube: 15' Stainless Steel Graphite & Lubricated Glass

          • Relay: SPDT
          • UL, CSA
            • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

          • CE Mark, NACE
          28 - 35 weeks
          Non-Cancellable / Non-Refundable
          Does not ship to OH, United States
          6900TUE16-7003
          CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 25` Capillary show more
          • Adjustable Set Point Range:

            • Increasing: +185°F to +315°F, +85°C to +157°C
            • Decreasing: +165°F to +308°F, +74°C to +153°C


            • Deadband: Approximately
              • At Bottom of Range: 20°F, 11°C
              • At Top of Range: 5°F, 4°C

            • Probe Temperature (Maximum): +400°F, +204°C
            • Probe Length / Width: 4.5" / 0.38"
            • Wetted Materials:
              • Temperature Probe: 300 Stainless Steel
              • Capillary Tube: 25' Stainless Steel Graphite & Lubricated Glass

            • Relay: SPDT
            • UL, CSA
              • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

            • CE Mark, NACE
            28 - 35 weeks
            Non-Cancellable / Non-Refundable
            Does not ship to OH, United States
            6900TUE18
            CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary show more
            • Adjustable Set Point Range
              • Increasing
                • 280°F to 405°F
                • 138°C to 207°C
              • Decreasing
                • 260°F to 398°F
                • 127°C to 203°C
            • Deadband - Approximate:
              • At Bottom of Range: 20°F, 11°C
              • At Top of Range: 5°F, 4°C
            • Probe Temperature - Maximum: 500°F, 260°C
            • Probe Length / Width: 4.5" / 0.38"
            • Wetted Materials
              • Temperature Probe: 300 Stainless Steel
              • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
            • Relay: SPDT
            • UL, CSA
              • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
            • CE Mark, NACE, CRN
            28 - 35 weeks
            Does not ship to OH, United States
            6900TUE18-7001
            CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10` Capillary show more
            • Adjustable Set Point Range:

              • Increasing: +280°F to +405°F, +138°C to +207°C
              • Decreasing: +260°F to +398°F, +127°C to +203°C


              • Deadband: Approximately
                • At Bottom of Range: 20°F, 11°C
                • At Top of Range: 5°F, 4°C

              • Probe Temperature (Maximum): +500°F, +260°C
              • Probe Length / Width: 4.5" / 0.38"
              • Wetted Materials:
                • Temperature Probe: 300 Stainless Steel
                • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass

              • Relay: SPDT
              • UL, CSA
                • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

              • CE Mark, NACE, CRN
              28 - 35 weeks
              Does not ship to OH, United States
              6900TUE18-7003
              CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 25` Capillary show more
              • Adjustable Set Point Range:

                • Increasing: +280°F to +405°F, +138°C to +207°C
                • Decreasing: +260°F to +398°F, +127°C to +203°C


                • Deadband: Approximately
                  • At Bottom of Range: 20°F, 11°C
                  • At Top of Range: 5°F, 4°C

                • Probe Temperature (Maximum): +500°F, +260°C
                • Probe Length / Width: 4.5" / 0.38"
                • Wetted Materials:
                  • Temperature Probe: 300 Stainless Steel
                  • Capillary Tube: 25' Stainless Steel Graphite & Lubricated Glass

                • Relay: SPDT
                • UL, CSA
                  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                • CE Mark, NACE
                28 - 35 weeks
                Non-Cancellable / Non-Refundable
                Does not ship to OH, United States
                6900TUE20
                CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary show more
                • Adjustable Set Point Range
                  • Increasing
                    • 385°F to 565°F
                    • 196°C to 296°C
                  • Decreasing
                    • 360°F to 555°F
                    • 182°C to 291°C
                • Deadband - Approximate:
                  • At Bottom of Range: 25°F, 14°C
                  • At Top of Range: 10°F, 5°C
                • Probe Temperature - Maximum: 650°F, 343°C
                • Probe Length / Width: 4.5" / 0.38"
                • Wetted Materials
                  • Temperature Probe: 300 Stainless Steel
                  • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
                • Relay: SPDT
                • UL, CSA
                  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
                • CE Mark, NACE, CRN
                24 - 28 weeks
                Does not ship to OH, United States
                6900TUE22
                CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary show more
                • Adjustable Set Point Range:

                  • Increasing: +465°F to +650°F, +241°C to +343°C
                  • Decreasing: +440°F to +640°F, +227°C to +338°C

                • Deadband: Approximately
                  • At Bottom of Range: 25°F, 14°C
                  • At Top of Range: 10°F, 5°C

                • Probe Temperature (Maximum): +700°F, +371°C
                • Probe Length / Width: 4.5" / 0.38"
                • Wetted Materials:
                  • Temperature Probe: 300 Stainless Steel
                  • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                • Relay: SPDT
                • UL, CSA
                  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                • CE Mark, NACE, CRN
                24 - 26 weeks
                Does not ship to OH, United States
                6900TUEM12
                CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary, DPDT show more
                • Adjustable Set Point Range:

                  • Increasing: +20°F to +120°F, -7°C to +49°C
                  • Decreasing: +0°F to +113°F, -18°C to +45°C


                  • Deadband: Approximately
                    • At Bottom of Range: 20°F, 11°C
                    • At Top of Range: 5°F, 4°C

                  • Probe Temperature (Maximum): +200°F, +93°C
                  • Probe Length / Width: 4.5" / 0.38"
                  • Wetted Materials:
                    • Temperature Probe: 300 Stainless Steel
                    • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                  • Relay: DPDT
                  • UL, CSA
                    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                  • CE Mark, NACE
                  28 - 35 weeks
                  Non-Cancellable / Non-Refundable
                  Does not ship to OH, United States
                  6900TUEM14
                  CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary, DPDT show more
                  • Adjustable Set Point Range:

                    • Increasing: +80°F to +205°F, +27°C to +96°C
                    • Decreasing: +60°F to +198°F, +16°C to +92°C


                    • Deadband: Approximately
                      • At Bottom of Range: 20°F, 11°C
                      • At Top of Range: 5°F, 4°C

                    • Probe Temperature (Maximum): +300°F, +149°C
                    • Probe Length / Width: 4.5" / 0.38"
                    • Wetted Materials:
                      • Temperature Probe: 300 Stainless Steel
                      • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                    • Relay: DPDT
                    • UL, CSA
                      • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                    • CE Mark, NACE, CRN
                    28 - 35 weeks
                    Does not ship to OH, United States
                    6900TUEM14-7001
                    CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10` Capillary, DPDT show more
                    • Adjustable Set Point Range:

                      • Increasing: +80°F to +205°F, +27°C to +96°C
                      • Decreasing: +60°F to +198°F, +16°C to +92°C


                      • Deadband: Approximately
                        • At Bottom of Range: 20°F, 11°C
                        • At Top of Range: 5°F, 4°C

                      • Probe Temperature (Maximum): +300°F, +149°C
                      • Probe Length / Width: 4.5" / 0.38"
                      • Wetted Materials:
                        • Temperature Probe: 300 Stainless Steel
                        • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass

                      • Relay: DPDT
                      • UL, CSA
                        • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                      • CE Mark, NACE
                      28 - 35 weeks
                      Non-Cancellable / Non-Refundable
                      Does not ship to OH, United States
                      6900TUEM14-7002
                      CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 15` Capillary, DPDT show more
                      • Adjustable Set Point Range:

                        • Increasing: +80°F to +205°F, +27°C to +96°C
                        • Decreasing: +60°F to +198°F, +16°C to +92°C


                        • Deadband: Approximately
                          • At Bottom of Range: 20°F, 11°C
                          • At Top of Range: 5°F, 4°C

                        • Probe Temperature (Maximum): +300°F, +149°C
                        • Probe Length / Width: 4.5" / 0.38"
                        • Wetted Materials:
                          • Temperature Probe: 300 Stainless Steel
                          • Capillary Tube: 15' Stainless Steel Graphite & Lubricated Glass

                        • Relay: DPDT
                        • UL, CSA
                          • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                        • CE Mark, NACE
                        28 - 35 weeks
                        Non-Cancellable / Non-Refundable
                        Does not ship to OH, United States
                        6900TUEM14-7003
                        CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 25` Capillary, DPDT show more
                        • Adjustable Set Point Range:

                          • Increasing: +80°F to +205°F, +27°C to +96°C
                          • Decreasing: +60°F to +198°F, +16°C to +92°C


                          • Deadband: Approximately
                            • At Bottom of Range: 20°F, 11°C
                            • At Top of Range: 5°F, 4°C

                          • Probe Temperature (Maximum): +300°F, +149°C
                          • Probe Length / Width: 4.5" / 0.38"
                          • Wetted Materials:
                            • Temperature Probe: 300 Stainless Steel
                            • Capillary Tube: 25' Stainless Steel Graphite & Lubricated Glass

                          • Relay: DPDT
                          • UL, CSA
                            • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                          • CE Mark, NACE
                          28 - 35 weeks
                          Non-Cancellable / Non-Refundable
                          Does not ship to OH, United States
                          6900TUEM16
                          CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary, DPDT show more
                          • Adjustable Set Point Range:

                            • Increasing: +185°F to +315°F, +85°C to +157°C
                            • Decreasing: +165°F to +308°F, +74°C to +153°C


                            • Deadband: Approximately
                              • At Bottom of Range: 20°F, 11°C
                              • At Top of Range: 5°F, 4°C

                            • Probe Temperature (Maximum): +400°F, +204°C
                            • Probe Length / Width: 4.5" / 0.38"
                            • Wetted Materials:
                              • Temperature Probe: 300 Stainless Steel
                              • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                            • Relay: DPDT
                            • UL, CSA
                              • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                            • CE Mark, NACE, CRN
                            Contact For Inventory
                            Does not ship to OH, United States
                            6900TUEM16-7001
                            CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10` Capillary, DPDT show more
                            • Adjustable Set Point Range:

                              • Increasing: +185°F to +315°F, +85°C to +157°C
                              • Decreasing: +165°F to +308°F, +74°C to +153°C


                              • Deadband: Approximately
                                • At Bottom of Range: 20°F, 11°C
                                • At Top of Range: 5°F, 4°C

                              • Probe Temperature (Maximum): +400°F, +204°C
                              • Probe Length / Width: 4.5" / 0.38"
                              • Wetted Materials:
                                • Temperature Probe: 300 Stainless Steel
                                • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass

                              • Relay: DPDT
                              • UL, CSA
                                • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                              • CE Mark, NACE, CRN
                              28 - 35 weeks
                              Non-Cancellable / Non-Refundable
                              Does not ship to OH, United States
                              6900TUE12-7001
                              CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10` Capillary show more
                              • Adjustable Set Point Range:

                                • Increasing: +20°F to +120°F, -7°C to +49°C
                                • Decreasing: +0°F to +113°F, -18°C to +45°C


                                • Deadband: Approximately
                                  • At Bottom of Range: 20°F, 11°C
                                  • At Top of Range: 5°F, 4°C

                                • Probe Temperature (Maximum): +200°F, +93°C
                                • Probe Length / Width: 4.5" / 0.38"
                                • Wetted Materials:
                                  • Temperature Probe: 300 Stainless Steel
                                  • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass

                                • Relay: SPDT
                                • UL, CSA
                                  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                • CE Mark, NACE
                                28 - 35 weeks
                                Does not ship to OH, United States
                                6900TUE12-7001/7076
                                CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10' Capillary, Teflon Leads show more
                                • Adjustable Set Point Range:

                                  • Increasing: +20°F to +120°F, -7°C to +49°C
                                  • Decreasing: +0°F to +113°F, -18°C to +45°C


                                  • Deadband: Approximately
                                    • At Bottom of Range: 20°F, 11°C
                                    • At Top of Range: 5°F, 4°C

                                  • Probe Temperature (Maximum): +200°F, +93°C
                                  • Probe Length / Width: 4.5" / 0.38"
                                  • Wetted Materials:
                                    • Temperature Probe: 300 Stainless Steel
                                    • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass

                                  • Wire: Teflon
                                  • Relay: SPDT
                                  • UL, CSA
                                    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                  • CE Mark, NACE
                                  28 - 35 weeks
                                  Does not ship to OH, United States
                                  6900TUE12-7003
                                  CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 25` Capillary show more
                                  • Adjustable Set Point Range:

                                    • Increasing: +20°F to +120°F, -7°C to +49°C
                                    • Decreasing: +0°F to +113°F, -18°C to +45°C


                                    • Deadband: Approximately
                                      • At Bottom of Range: 20°F, 11°C
                                      • At Top of Range: 5°F, 4°C

                                    • Probe Temperature (Maximum): +200°F, +93°C
                                    • Probe Length / Width: 4.5" / 0.38"
                                    • Wetted Materials:
                                      • Temperature Probe: 300 Stainless Steel
                                      • Capillary Tube: 25' Stainless Steel Graphite & Lubricated Glass

                                    • Relay: SPDT
                                    • UL, CSA
                                      • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                    • CE Mark, NACE
                                    28 - 35 weeks
                                    Non-Cancellable / Non-Refundable
                                    Does not ship to OH, United States
                                    6900TUE12-7042
                                    CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary, SST Body show more
                                    • Adjustable Set Point Range:

                                      • Increasing: +20°F to +120°F, -7°C to +49°C
                                      • Decreasing: +0°F to +113°F, -18°C to +45°C

                                    • Deadband: Approximately
                                      • At Bottom of Range: 20°F, 11°C
                                      • At Top of Range: 5°F, 4°C

                                    • Probe Temperature (Maximum): +200°F, +93°C
                                    • Probe Length / Width: 4.5" / 0.38"
                                    • Wetted Materials:
                                      • Temperature Probe: 300 Stainless Steel
                                      • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                                    • Wire: Teflon, Explosion Proof Electrical
                                    • Relay: SPDT
                                    • UL, CSA
                                      • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                    • CE Mark, NACE, CRN
                                    28 - 35 weeks
                                    Does not ship to OH, United States
                                    6900TUE14-7001/7076
                                    CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10' Capillary, Teflon Leads show more
                                    • Adjustable Set Point Range:

                                      • Increasing: +80°F to +205°F, +27°C to +96°C
                                      • Decreasing: +60°F to +198°F, +16°C to +92°C


                                      • Deadband: Approximately
                                        • At Bottom of Range: 20°F, 11°C
                                        • At Top of Range: 5°F, 4°C

                                      • Probe Temperature (Maximum): +300°F, +149°C
                                      • Probe Length / Width: 4.5" / 0.38"
                                      • Wetted Materials:
                                        • Temperature Probe: 300 Stainless Steel
                                        • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass

                                      • Wire: Teflon
                                      • Relay: SPDT
                                      • UL, CSA
                                        • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                      • CE Mark, NACE
                                      28 - 35 weeks
                                      Does not ship to OH, United States
                                      6900TUE14-7001E
                                      CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary, Epoxy Coated show more
                                      • Adjustable Set Point Range:

                                        • Increasing: +80°F to +205°F, +27°C to +96°C
                                        • Decreasing: +60°F to +198°F, +16°C to +92°C


                                        • Deadband: Approximately
                                          • At Bottom of Range: 20°F, 11°C
                                          • At Top of Range: 5°F, 4°C

                                        • Probe Temperature (Maximum): +300°F, +149°C
                                        • Probe Length / Width: 4.5" / 0.38"
                                        • Wetted Materials:
                                          • Temperature Probe: 300 Stainless Steel
                                          • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass

                                        • Relay: SPDT
                                        • UL, CSA
                                          • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                        • CE Mark, NACE
                                        28 - 35 weeks
                                        Non-Cancellable / Non-Refundable
                                        Does not ship to OH, United States
                                        6900TUE14-7008
                                        CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary, Gold Contacts show more
                                        • Adjustable Set Point Range:

                                          • Increasing: +80°F to +205°F, +27°C to +96°C
                                          • Decreasing: +60°F to +198°F, +16°C to +92°C

                                        • Deadband: Approximately
                                          • At Bottom of Range: 20°F, 11°C
                                          • At Top of Range: 5°F, 4°C

                                        • Probe Temperature (Maximum): +300°F, +149°C
                                        • Probe Length / Width: 4.5" / 0.38"
                                        • Wetted Materials:
                                          • Temperature Probe: 300 Stainless Steel
                                          • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                                        • Contacts: Gold
                                        • Relay: SPDT
                                        • UL, CSA
                                          • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                        • CE Mark, NACE, CRN
                                        28 - 35 weeks
                                        Does not ship to OH, United States
                                        6900TUE20-7002
                                        CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 15` Capillary show more
                                        • Adjustable Set Point Range:

                                          • Increasing: +385°F to +565°F, +196°C to +296°C
                                          • Decreasing: +360°F to +555°F, +182°C to +291°C


                                          • Deadband: Approximately
                                            • At Bottom of Range: 25°F, 14°C
                                            • At Top of Range: 10°F, 5°C

                                          • Probe Temperature (Maximum): +650°F, +343°C
                                          • Probe Length / Width: 4.5" / 0.38"
                                          • Wetted Materials:
                                            • Temperature Probe: 300 Stainless Steel
                                            • Capillary Tube: 15' Stainless Steel Graphite & Lubricated Glass

                                          • Relay: SPDT
                                          • UL, CSA
                                            • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                          • CE Mark, NACE
                                          28 - 35 weeks
                                          Non-Cancellable / Non-Refundable
                                          Does not ship to OH, United States
                                          6900TUE22-7001
                                          CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10` Capillary show more
                                          • Adjustable Set Point Range:

                                            • Increasing: +465°F to +650°F, +241°C to +343°C
                                            • Decreasing: +440°F to +640°F, +227°C to +338°C


                                            • Deadband: Approximately
                                              • At Bottom of Range: 25°F, 14°C
                                              • At Top of Range: 10°F, 5°C

                                            • Probe Temperature (Maximum): +700°F, +371°C
                                            • Probe Length / Width: 4.5" / 0.38"
                                            • Wetted Materials:
                                              • Temperature Probe: 300 Stainless Steel
                                              • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass

                                            • Relay: SPDT
                                            • UL, CSA
                                              • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                            • CE Mark, NACE
                                            28 - 35 weeks
                                            Does not ship to OH, United States
                                            6900TUE22-7076
                                            CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary, Teflon Leads show more
                                            • Adjustable Set Point Range:

                                              • Increasing: +465°F to +650°F, +241°C to +343°C
                                              • Decreasing: +440°F to +640°F, +227°C to +338°C


                                              • Deadband: Approximately
                                                • At Bottom of Range: 25°F, 14°C
                                                • At Top of Range: 10°F, 5°C

                                              • Probe Temperature (Maximum): +700°F, +371°C
                                              • Probe Length / Width: 4.5" / 0.38"
                                              • Wetted Materials:
                                                • Temperature Probe: 300 Stainless Steel
                                                • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                                              • Relay: SPDT
                                              • Free Leadds: 18 inch Teflon
                                              • UL, CSA
                                                • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                              • CE Mark, NACE, CRN
                                              Contact For Inventory
                                              Does not ship to OH, United States
                                              6900TUEM12-7003
                                              CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 25` Capillary, DPDT show more
                                              • Adjustable Set Point Range:

                                                • Increasing: +20°F to +120°F, -7°C to +49°C
                                                • Decreasing: +0°F to +113°F, -18°C to +45°C


                                                • Deadband: Approximately
                                                  • At Bottom of Range: 20°F, 11°C
                                                  • At Top of Range: 5°F, 4°C

                                                • Probe Temperature (Maximum): +200°F, +93°C
                                                • Probe Length / Width: 4.5" / 0.38"
                                                • Wetted Materials:
                                                  • Temperature Probe: 300 Stainless Steel
                                                  • Capillary Tube: 25' Stainless Steel Graphite & Lubricated Glass

                                                • Relay: DPDT
                                                • UL, CSA
                                                  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                                • CE Mark, NACE
                                                28 - 35 weeks
                                                Non-Cancellable / Non-Refundable
                                                Does not ship to OH, United States
                                                6900TUEMY12-7008
                                                CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary, DPDT,ATEX,Gold show more
                                                • Adjustable Set Point Range:

                                                  • Increasing: +20°F to +120°F, -7°C to +49°C
                                                  • Decreasing: +0°F to +113°F, -18°C to +45°C


                                                  • Deadband: Approximately
                                                    • At Bottom of Range: 20°F, 11°C
                                                    • At Top of Range: 5°F, 4°C

                                                  • Probe Temperature (Maximum): +200°F, +93°C
                                                  • Probe Length / Width: 4.5" / 0.38"
                                                  • Wetted Materials:
                                                    • Temperature Probe: 300 Stainless Steel
                                                    • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                                                  • Relay: DPDT
                                                  • Contacts: Gold
                                                  • ATEX
                                                    • ATEX Certified For Potentially Explosive Atmospheres Electrical Assembly Series
                                                    • 46-XXXXXXX, Models 6*****, Ex d IIC T6, Directive 94/9/EC Sira #08ATEX 1046X (Option Y)
                                                    • IECEx - SIRA Certified, SIR 10,0193X (Option Y)

                                                  • CE Mark, NACE, GOST, CRN
                                                  28 - 35 weeks
                                                  Does not ship to OH, United States
                                                  6900TUEY12
                                                  CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary, ATEX show more
                                                  • Adjustable Set Point Range:

                                                    • Increasing: +20°F to +120°F, -7°C to +49°C
                                                    • Decreasing: +0°F to +113°F, -18°C to +45°C


                                                    • Deadband: Approximately
                                                      • At Bottom of Range: 20°F, 11°C
                                                      • At Top of Range: 5°F, 4°C

                                                    • Probe Temperature (Maximum): +200°F, +93°C
                                                    • Probe Length / Width: 4.5" / 0.38"
                                                    • Wetted Materials:
                                                      • Temperature Probe: 300 Stainless Steel
                                                      • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                                                    • Relay: SPDT
                                                    • ATEX
                                                      • ATEX Certified For Potentially Explosive Atmospheres Electrical Assembly Series
                                                      • 46-XXXXXXX, Models 6*****, Ex d IIC T6, Directive 94/9/EC Sira #08ATEX 1046X (Option Y)
                                                      • IECEx - SIRA Certified, SIR 10,0193X (Option Y)

                                                    • CE Mark, NACE, CRN
                                                    28 - 35 weeks
                                                    Does not ship to OH, United States
                                                    6900TUEY14
                                                    CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary, ATEX show more
                                                    • Adjustable Set Point Range:

                                                      • Increasing: +80°F to +205°F, +27°C to +96°C
                                                      • Decreasing: +60°F to +198°F, +16°C to +92°C

                                                    • Deadband: Approximately
                                                      • At Bottom of Range: 20°F, 11°C
                                                      • At Top of Range: 5°F, 4°C

                                                    • Probe Temperature (Maximum): +300°F, +149°C
                                                    • Probe Length / Width: 4.5" / 0.38"
                                                    • Wetted Materials:
                                                      • Temperature Probe: 300 Stainless Steel
                                                      • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                                                    • Relay: SPDT
                                                    • UL, CSA, ATEX
                                                      • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                                    • CE Mark, NACE, CRN
                                                    28 - 35 weeks
                                                    Does not ship to OH, United States
                                                    6900TUEY18
                                                    CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary, ATEX show more
                                                    • Adjustable Set Point Range:

                                                      • Increasing: +280°F to +405°F, +138°C to +207°C
                                                      • Decreasing: +260°F to +398°F, +127°C to +203°C

                                                    • Deadband: Approximately
                                                      • At Bottom of Range: 20°F, 11°C
                                                      • At Top of Range: 5°F, 4°C

                                                    • Probe Temperature (Maximum): +500°F, +260°C
                                                    • Probe Length / Width: 4.5" / 0.38"
                                                    • Wetted Materials:
                                                      • Temperature Probe: 300 Stainless Steel
                                                      • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                                                    • Relay: SPDT
                                                    • UL, CSA, ATEX
                                                      • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                                    • CE Mark, NACE, CRN
                                                    28 - 35 weeks
                                                    Does not ship to OH, United States
                                                    6900TUEY20
                                                    CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300SST Fitting, 5` Capillary, ATEX/GOST show more
                                                    • Adjustable Set Point Range:
                                                    • Increasing: +385°F to +565°F, +196°C to +296°C
                                                    • Decreasing: +360°F to +555°F, +182°C to +291°C
                                                    • Deadband: Approximately
                                                      • At Bottom of Range: 25°F, 14°C
                                                      • At Top of Range: 10°F, 5°C

                                                    • Probe Temperature (Maximum): +650°F, +343°C
                                                    • Probe Length / Width: 4.5" / 0.38"
                                                    • Wetted Materials:
                                                      • Temperature Probe: 300 Stainless Steel
                                                      • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass

                                                    • Relay: SPDT
                                                    • ATEX
                                                      • ATEX Certified For Potentially Explosive Atmospheres Electrical Assembly Series
                                                      • 46-XXXXXXX, Models 6*****, Ex d IIC T6, Directive 94/9/EC Sira #08ATEX 1046X (Option Y)
                                                      • IECEx - SIRA Certified, SIR 10,0193X (Option Y)

                                                    • CE Mark, NACE, GOST
                                                    • CRN
                                                    28 - 35 weeks
                                                    Does not ship to OH, United States
                                                    6900TUEM16-7003
                                                    CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 25` Capillary, DPDT show more
                                                    • Adjustable Set Point Range:

                                                      • Increasing: +185°F to +315°F, +85°C to +157°C
                                                      • Decreasing: +165°F to +308°F, +74°C to +153°C


                                                      • Deadband: Approximately
                                                        • At Bottom of Range: 20°F, 11°C
                                                        • At Top of Range: 5°F, 4°C

                                                      • Probe Temperature (Maximum): +400°F, +204°C
                                                      • Probe Length / Width: 4.5" / 0.38"
                                                      • Wetted Materials:
                                                        • Temperature Probe: 300 Stainless Steel
                                                        • Capillary Tube: 25' Stainless Steel Graphite & Lubricated Glass

                                                      • Relay: DPDT
                                                      • UL, CSA
                                                        • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

                                                      • CE Mark, NACE
                                                      28 - 35 weeks
                                                      Non-Cancellable / Non-Refundable
                                                      Does not ship to OH, United States
                                                      Show More Models (23)
                                                      Close
                                                      Close

                                                      Specifications

                                                      Brand

                                                      Adjustment Type

                                                      • Field Adjustable

                                                      Approvals & Certifications

                                                      • ATEX
                                                      • CE
                                                      • CRN
                                                      • CRN - Alberta
                                                      • CRN - British Columbia
                                                      • CRN - Manitoba
                                                      • CRN - N.W. Territories
                                                      • CRN - Saskatchewan
                                                      • CSA
                                                      • cUL
                                                      • Dual Seal
                                                      • IEC Ex
                                                      • LVD
                                                      • PED
                                                      • RoHS
                                                      • RTN
                                                      • UL

                                                      Capillary Length

                                                      • 10 feet (3 metres)
                                                      • 15 feet
                                                      • 25 feet
                                                      • 5 feet (1.524 metres)

                                                      Capillary Material

                                                      • Stainless Steel, Graphite & Lubricated Glass Fiber

                                                      Conduit Connection

                                                      • M20 Explosion-proof

                                                      Deadband, Approximate - Bottom of Range

                                                      • 11° to 14° C (52° to 57° F)
                                                      • -7° to -4° C (20° to 25° F)

                                                      Deadband, Approximate - Top of Range

                                                      • -15° to -12° C (5° to 10° F)
                                                      • 4° to 5° C (39° to 41° F)

                                                      Electrical - Free Leads

                                                      • 18” (45 cm) Free Leads
                                                      • 18” (45 cm) Teflon Leadwire

                                                      Electrical Assembly

                                                      • 316 Stainless Steel
                                                      • Hermetic Seal

                                                      Electrical Connectors

                                                      • 1/2” NPT Male

                                                      Electrical Contacts

                                                      • Gold
                                                      • Silver

                                                      Electrical Enclosure Certification

                                                      • ATEX - SIRA Certified for Potentially Explosive Atmospheres. Models 6****Y, II 2 GD Ex d IIC, 08-ATEX-1046X. (Option Y)
                                                      • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories
                                                      • IECEx - SIRA Certified, SIR 10,0193X (Option Y)

                                                      Electrical Rating

                                                      • 1 A at 125 Vac, 50/60 Hz
                                                      • 11 A at 125/250 Vac Resistive, 5 A at 30 Vdc Resistive, 0.5 A at 125 Vdc

                                                      Enclosure, Body Material

                                                      • Aluminum
                                                      • Stainless Steel

                                                      Environmental Protection

                                                      • IP54
                                                      • IP66
                                                      • NEMA 13
                                                      • NEMA 4, 7, 9, 13 / IP54, 66
                                                      • NEMA 7
                                                      • NEMA 9

                                                      Maximum Sensor, Probe Temperature

                                                      • 93° to 371° C (200° to 700° F)

                                                      NACE & NIST

                                                      • NACE MR-0175: 2003

                                                      NPT Connection

                                                      • 1/2” NPT Male

                                                      O-Ring Material

                                                      • None

                                                      Operating Temperature

                                                      • -40° to 86° C (-40° to 187° F)

                                                      Proof Pressure

                                                      • bar: 103.4
                                                      • kPa: 10,342
                                                      • psig: 1,500

                                                      Sensor, Probe Material

                                                      • 300 Stainless Steel

                                                      Set Point - Decreasing

                                                      • -18° to 338° C
                                                      • -18° to 338° C (0° to 640° F)

                                                      Set Point - Increasing

                                                      • -7° to 343° C
                                                      • -7° to 343° C (20° to 650° F)

                                                      Switch Type

                                                      • DPDT
                                                      • SPDT

                                                      System Pressure

                                                      • bar: 86
                                                      • kPa: 8,618
                                                      • psig: 1,250
                                                      Close

                                                      Applications

                                                      • Oil & Gas
                                                      • Power Generation
                                                      • Fluid Management
                                                      • Chemical Refining & Processing
                                                      • Utilities, Water Treatment & Waste
                                                      • Safety Systems
                                                      Close
