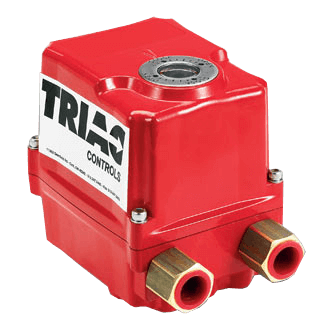

WE-500 Series Weatherproof Electric Actuator

Brand: A-T Controls, Inc.
The WE-500 Electric Actuator is a compact design actuator used for small ball valves (2” and less), dampers and other quarter-turn devices.

The actuator is TYPE 4, 4X and includes a visual indicator, two auxiliary switches and a compartment heater. A convenient wrench manual override shaft is standard on the WE-500. This actuator is the clear choice when a compact, efficient electric actuator is required.
Features
  • Compact and light due to high grade aluminum alloy housing.
  • High resistance to corrosion due to hard anodizing on inside and outside with polyester powder coating on external surface.
  • Output Torque: 530 In-lbs (530 inch-pounds).
  • The actuator motor is a reversible, high torque and low current design.
  • Weatherproof (IP67, Type 4, 4X)
show more
Images are representations only.
The WE-500 Electric Actuator is a compact design actuator used for small ball valves (2” and less), dampers and other quarter-turn devices.

The actuator is TYPE 4, 4X and includes a visual indicator, two auxiliary switches and a compartment heater. A convenient wrench manual override shaft is standard on the WE-500. This actuator is the clear choice when a compact, efficient electric actuator is required.
Features
  • Compact and light due to high grade aluminum alloy housing.
  • High resistance to corrosion due to hard anodizing on inside and outside with polyester powder coating on external surface.
  • Output Torque: 530 In-lbs (530 inch-pounds).
  • The actuator motor is a reversible, high torque and low current design.
  • Weatherproof (IP67, Type 4, 4X)
WE-500
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 500 In-Lbs, 110VAC
2 - 4 weeks
$409.19USD
$8.23 Shipping
WE-500A
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 500 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$620.79USD
$8.23 Shipping
WE-500XD
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 500 In-Lbs, 110VAC, Local/Remote Control Switches
2 - 4 weeks
$1,008.58USD
$8.23 Shipping

WE-500 Series

Model

Control Type

  • view details

Actuator Size

Motor Voltage

  • view details

Control Options

  • view details

Transmitter

Potentiometer

Operation

Temperature Options
