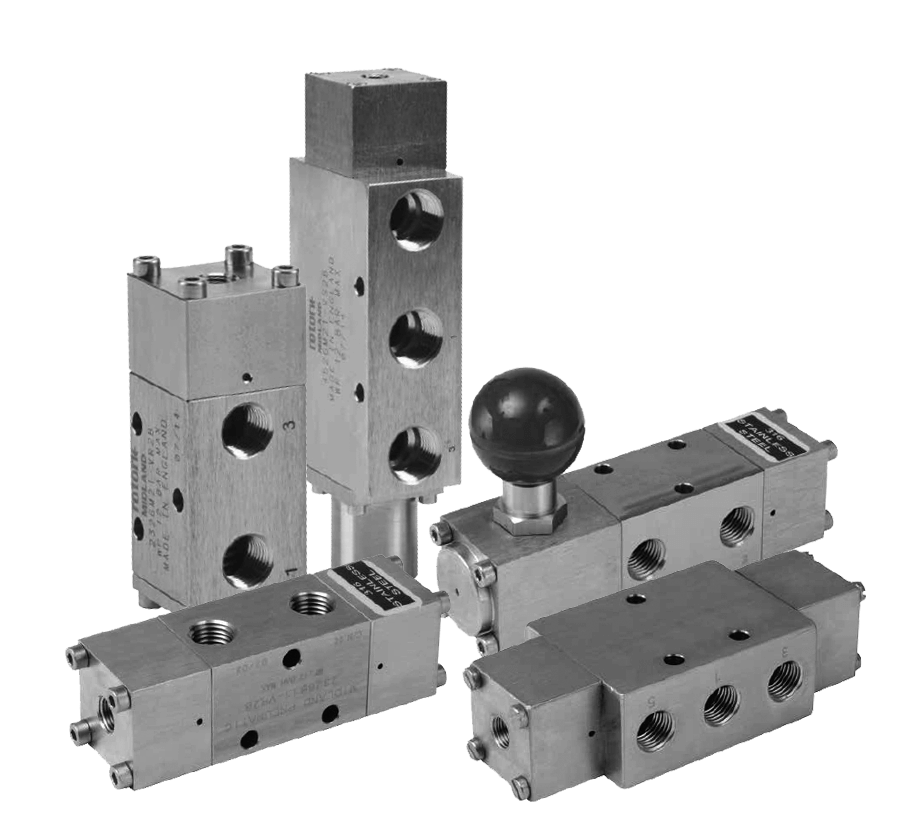

1500 Series Pilot-Operated

Brand: Midland-ACS
Request Information
Favorite
A range of 3/2 and 5/2 pilot operated spool valves in stainless steel for use on gases.
Features
  • Specifically Designed for Severe Environments
  • 3/2 and 5/2 Versions
  • Working Temperature Range -20° to 180º C (-4° to 356º F)
  • 316L Stainless Steel Construction
  • Designed for Actuator Control
show more
A range of 3/2 and 5/2 pilot operated spool valves in stainless steel for use on gases.
Features
  • Specifically Designed for Severe Environments
  • 3/2 and 5/2 Versions
  • Working Temperature Range -20° to 180º C (-4° to 356º F)
  • 316L Stainless Steel Construction
  • Designed for Actuator Control
Close

Displaying prices & availability for United States in USD. Change location or currency

2326M21-ER2B
MIDLAND-ACS Series 1500 Spool Valve, 1.0 Cv, 1/4" Pilot Operated, 3/2, Low Temp View More
  • Version: 1/4" 3/2 Pilot Operated Spring Return
  • Construction: 316L Stainless Steel, Fluoroelastomer
  • Cv: 1.0
  • Max Flow at 6 bar, 1 bar differential: 1000 l/min (35.3 SCFM)
  • Min Pilot Pressure: 2.3 bar
  • Max Working Pressure: 12 bar (174 psi)
  • Working Temperature: -50°C to +90°C (-58°F to +248°F) Low Temp
4 - 6 weeks
$250.62USD
$19.22 Shipping
2326M212-ER2B
MIDLAND-ACS Series 1500 Spool Valve, 1.0 Cv, 1/4" Pilot Operated, 3/2, 3 Bar, Low Temp View More
  • Version: 1/4" 3/2 Pilot Operated Spring Return
  • Construction: 316L Stainless Steel, Fluoroelastomer
  • Cv: 1.0
  • Max Flow at 6 bar, 1 bar differential: 1000 l/min (35.3 SCFM)
  • Min Pilot Pressure: 3 bar
  • Max Working Pressure: 12 bar (174 psi)
  • Working Temperature: -50°C to +90°C (-58°F to +248°F) Low Temp
8 - 10 weeks
$480.54USD
$19.22 Shipping
2526M21-ER2B
MIDLAND-ACS Series 1500 Spool Valve, 1.2 Cv, 1/4" Pilot Operated, 5/2, Low Temp View More
  • Version: 1/4" 5/2 Pilot Operated Spring Return
  • Construction: 316L Stainless Steel, Fluoroelastomer
  • Cv: 1.2
  • Max Flow at 6 bar, 1 bar differential: 1200 l/min (42.4 SCFM)
  • Min Pilot Pressure: 3.5 bar
  • Max Working Pressure: 12 bar (174 psi)
  • Working Temperature: -50°C to +180°C (-58°F to +356°F)
4 - 6 weeks
Close
Close

Specifications

Brand

Ambient Temperature Range

  • -20° to 180° C (-4° to 356° F)

Approvals & Certifications

  • ATEX
  • CSA
  • EAC
  • IECEx
  • UL

Enclosure, Body Material

  • 316L Stainless Steel

Flow Capacity

  • 5/2 Valves - 42.4 scfm (72 m³/hour)

Media

  • Air
  • Gases - Filtered Lubricated or Non-Lubricated
  • Inert Gas
  • Sweet Natural Gas

NACE & NIST

  • NACE

NPT Connection

  • 1/4” Female NPT Line Port
  • 1/8” Female NPT Pilot Port

Seat / Seal Material

  • Fluoroelastomer

Spring Material

  • 316 Stainless Steel - Spool

Supply Pressure - Maximum

  • psi: 174 (bar: 12, kPa: 1,200)
