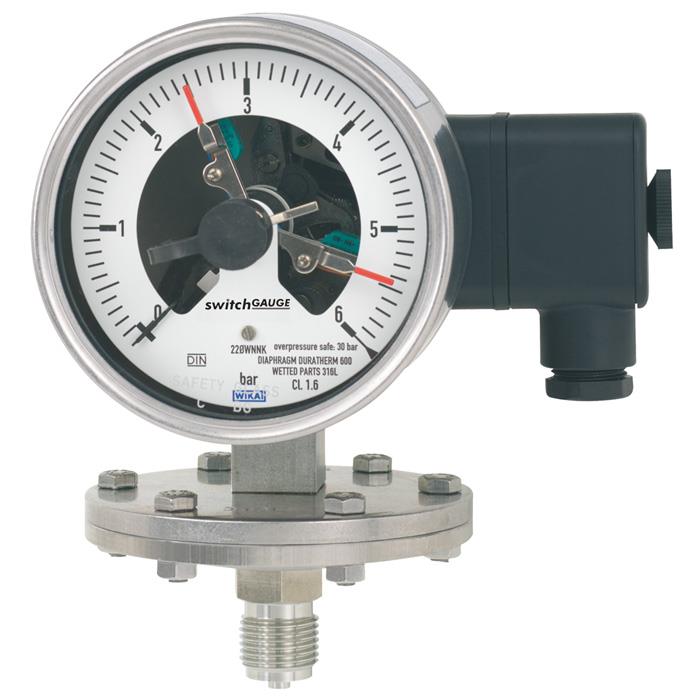

Model PGS43.100, PGS43.160 Diaphragm Pressure Gauge with Switch Contact

Brand: WIKA Instruments Ltd.
Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model PGS43 switchGAUGE finds its use.

For the process industry, high overload safety up to the 10-fold full scale value, max. 40 bar.
Features
  • High reliability and long service life.
  • Wide choice of special materials.
  • Up to 4 switch contacts per instrument.
  • Also available with liquid-filled case for high dynamic pressure loads or vibrations.
  • Gauges with inductive contacts for use in hazardous areas with ATEX approval.
  • Gauges with electronic contact for PLC applications.
show more
Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model PGS43 switchGAUGE finds its use.

For the process industry, high overload safety up to the 10-fold full scale value, max. 40 bar.
Features
  • High reliability and long service life.
  • Wide choice of special materials.
  • Up to 4 switch contacts per instrument.
  • Also available with liquid-filled case for high dynamic pressure loads or vibrations.
  • Gauges with inductive contacts for use in hazardous areas with ATEX approval.
  • Gauges with electronic contact for PLC applications.

Specifications

Certifications & Approvals

  • CE
  • CRN
  • Uzstandard
  • UkrSEPRO
  • BelGIM
  • MTSCHS
  • KazInMetr
  • GOST
  • EAC
  • IECEx

Process Connection

  • Flange 1", 2", Class 150 RF
  • Flange DN 25, DN 50, PN 40
  • m20 X 1.5
  • 1/2" NPT
  • G 1/2" B

Case Material

  • Stainless steel 316L

Dial Material

  • Aluminium, white, black lettering

Window Material

  • Laminated safety glass

Environmental Protection

  • IP65
  • IP54

Wetted Material

  • NiCr alloy (Inconel)
  • Stainless steel 316L
  • PTFE, Hastelloy, Monel, nickel, tantalum, titanium, silver
  • FPM/FKM

Typical Applications

  • Control and regulation of industrial processes at measuring points with increased overload and scale ranges from 0 ... 25 mbar
  • Monitoring of plants and switching of circuits
  • For gaseous and liquid, aggressive and highly viscous or contaminated media, also in aggressive environments
  • Process industry: Chemical industry, petrochemical industry, power plants, mining, on-/offshore, environmental technology, machine building and general plant construction
