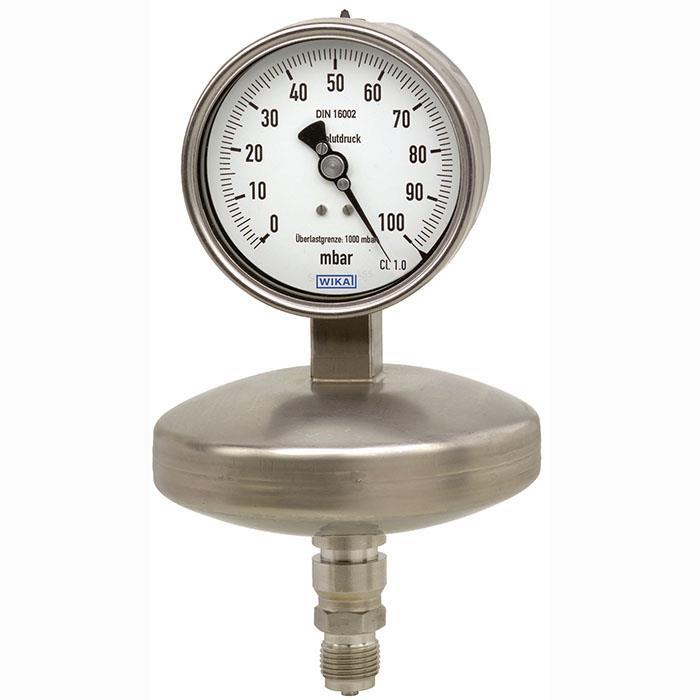

Images are representations only.
Description
High overload safety.
Features
- High overpressure safety.
- Long service life due to metallic media chamber sealing.
- Media chamber protected against unauthorised intervention, DT-GM 86 08 176.
- Gauges compatible with switch contacts.
- Scale ranges from 0 … 25 mbar absolute pressure.
Specifications
Specifications
Brand
Window Material
- Laminated safety glass
Case Material
- Stainless steel
Dial Material
- Aluminium, white, black lettering
Process Connection Material
- Stainless steel 1.4571
Process Connection
- G 1/2" B
Environmental Protection
- IP54
Certifications & Approvals
- CPA
- MTSCHS
- CRN
- GOST
- EAC
- CE
- BelGIM
- KazInMetr
Scale Range
- 0 to 25 mbar to 0 to 25 bar absolute pressure
Permissible Temperature
- Medium: 100° C maximum
- Ambient: -20° to 60° C
Applications
Typical Applications
- Pressure measurement independent of fluctuations in the atmospheric pressure
- For gaseous, liquid and aggressive media, also in aggressive ambience
- Monitoring of vacuum pumps
- Control of vacuum packing machines
- Monitoring of condensation pressures and determination of the vapour pressure of liquids
