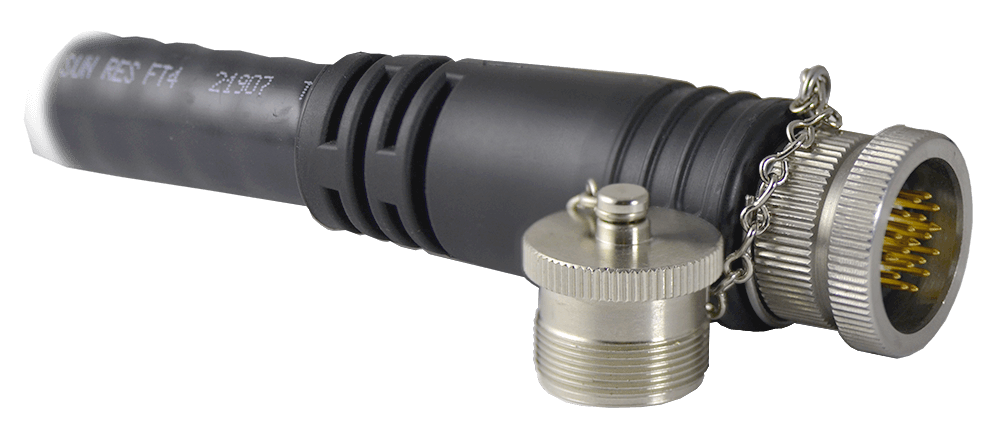

M23 Multifast Single Ended Cordset

Brand: Turck
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
      • CPE, Rubber Jacket
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
show more
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
      • CPE, Rubber Jacket
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
7 models matching criteria
CKM 19-11-1/S90
TURCK M23 multifast Cordset, 19-Pin, Female, 1m Leads, NCNR View More
  • Process Cordset:
    • 11-Wire Standard Duty
    • M23 Threads
  • Connector:
    • "multifast" Series
    • Female Single Ended
    • Nickel Plated Brass Connector
    • 19 Contacts / 3 x #18 AWG, 8 x #22 AWG Wires
  • Cable:
    • TPU/Yellow
  • Length of Cable:
    • 1 Meter
  • Temperature Range: -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67
2 - 8 weeks
$147.05 USD
$15.47 Shipping
CKM 12-12-5/S101
TURCK M23 multifast Cordset, 12-Pin, Female, 5m Leads, flexlife, NCNR View More
  • Process Cordset:
    • 12-Wire Standard Duty
    • M23 Threads
  • Connector:
    • "multifast" Series
    • Female Single Ended
    • Nickel Plated Brass Connector
    • 12 Contacts / 12 x #18 AWG Wires
  • Cable:
    • TPE/Yellow
  • Length of Cable:
    • 5 Meters
  • Temperature Range: -40°C to +105°C (-40°F to +221°F)
  • Protection Class:
    • IEC67
  • Flexlife -20, CTrack Cable
2 - 8 weeks
$176.46 USD
$15.47 Shipping
CKM 19-19-1/S90
TURCK M23 multifast Cordset, 19-Pin, Female, 1m Leads, NCNR View More
  • Process Cordset:
    • 19-Wire Standard Duty
    • M23 Threads
  • Connector:
    • "multifast" Series
    • Female Single Ended
    • Nickel Plated Brass Connector
    • 19 Contacts / 3 x #18 AWG, 16 x #22 AWG Wires
  • Cable:
    • TPU/Yellow
  • Length of Cable:
    • 1 Meter
  • Temperature Range: -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67
2 - 8 weeks
$181.88 USD
$15.47 Shipping
CKM 822-287-17
TURCK M23 multifast Cordset, 8-Pin, Female, 17m Leads, NCNR View More
  • Process Cordset:
    • 8-Wire Standard Duty
    • M23 Threads
  • Connector:
    • "multifast" Series
    • Female Single Ended
    • Nickel Plated Brass Connector
    • 8 Contacts / 4 x #12 AWG, 4 x #18 AWG Wires
  • Cable:
    • (4) x # 12 AWG, (4) x # 18 AWG Free Leads
    • TPE/Yellow
  • Length of Cable:
    • 17 Meters
  • Temperature Range: -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67
2 - 8 weeks
$510.82 USD
$15.47 Shipping
CKM 19-19-15M
TURCK M23 multifast Cordset, 19-Pin, Female, 15m Leads, flexlife, DC Color Code, Std Wiring, NCNR
2 - 8 weeks
CKM 822-287-30M
TURCK M23 multifast Cordset, 8-Pin, Female, 30m Leads, NCNR View More
  • Process Cordset:

    • 8-Wire Standard Duty
    • M23 Threads
  • Connector:
    • "multifast" Series
    • Female Single Ended
    • Nickel Plated Brass Connector
    • 8 Contacts / 4 x #12 AWG, 4 x #18 AWG Wires
  • Cable:
    • (4) x # 12 AWG, (4) x # 18 AWG Free Leads
    • TPE/Yellow
  • Length of Cable:
    • 30 Meters
  • Temperature Range: -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67
2 - 4 weeks
CKWM 19-19-5M
TURCK M23 multifast Cordset, Right Angle, 19-Pin, Female, 5m Leads, 8-Port, 2-Signal NCNR View More
  • Process Cordset:
    • 19-Pin Standard
    • M23 Threads
  • Connector:
    • "multifast" Series
    • Right Angle Female, Single Ended
    • Nickel Plated Brass Connector
    • 19 Contacts / 3 x #18 AWG, 16 x #22 AWG Wires
  • Wires:
    • (3) x # 18 AWG, (16) x # 22 AWG
    • PVC Yellow Jacket
    • 8 Port, 2 Signals per Port
    • flexlife
  • Cable Length:
    • 5 Meters
  • Temperature Range: -40°C to +105°C (-40°F to +221°F)
  • Protection Class:
    • IEC67
2 - 8 weeks

Specifications

Brand

Connection Material

  • Nickel-Plated Brass
  • Nylon
  • Stainless Steel

Connection Pin-Out

  • 12-Pin
  • 19-Pin
  • 8-Pin

Connection Style

  • multifast

Connector Shape

  • Right Angle
  • Straight

Environmental Protection

  • IP67

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 12-Wire
  • 19-Wire
  • 8-Wire
